Name: NXALN51
Brand: Maxtang
SKU: NXALN51
Availability: InStock

What Is the NXALN51 Fanless Designed For?

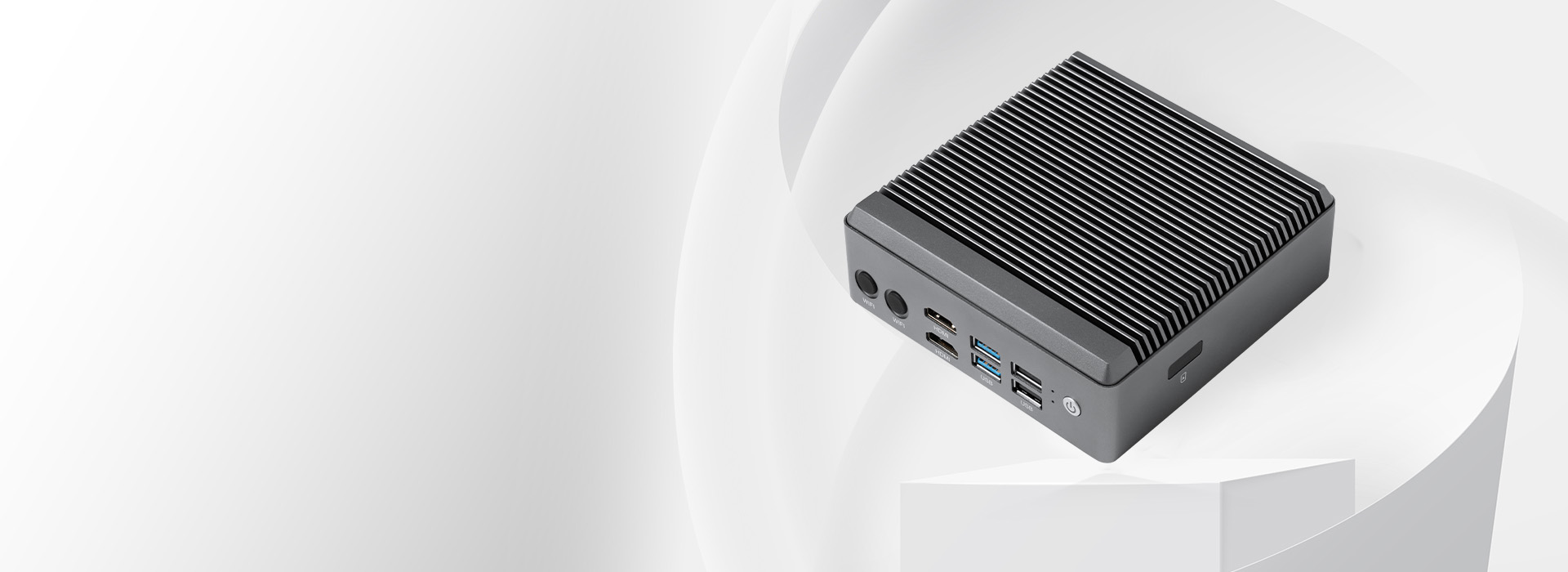

The Maxtang NXALN51 is an ultra-compact fanless NUC powered by the Intel® Processor N100 or N150, combining four cores, four threads, and a 6W TDP for efficient embedded computing. Four Intel® i226 2.5GbE LAN ports with Wake-on-LAN make it well suited for network appliances, edge gateways, industrial control, and other multi-network applications. The system also provides two HDMI 2.0 outputs, up to 16GB of SO-DIMM DDR4 memory, an M.2 Key B slot for SATA storage or an optional 4G module, an M.2 Key E slot for optional Wi-Fi and Bluetooth, a SATA 3.0 FPC interface, a SIM slot, and an RJ45 RS-232 console port. Its 127 mm × 127 mm × 43.5 mm chassis uses passive cooling and operates from -20°C to 60°C, enabling quiet, reliable deployment in space-constrained environments.

What Hardware and Connectivity Does the NXALN51 Provide?

CPU: Intel® Twin Lake/Alder Lake N series
Memory: Single Channel SO-DIMM DDR4 up to 16GB
Display: Integrated Graphics display via 2 x HDMI2.0
I/O Ports: 4 x LAN, 2 x USB3.2, 2 x USB2.0, SIM Slot, COM
Ethernet: 10/100/1000/2500Mbps
Storage: 1 x M.2 Key B for 2280/2242 SATA SSD/3042 4G, 1 x SATA FPC
Power: 12V DC-in

How Do Intel® N100 and N150 Processors Power the NXALN51?

Efficient Intel® N-Series Processing

Choose the Intel® Processor N100 based on Alder Lake-N or the Intel® Processor N150 based on Twin Lake to match project requirements. Both options provide four cores, four threads, 6MB Intel® Smart Cache, integrated Intel® UHD Graphics, and a low 6W TDP. Maximum turbo frequency reaches 3.40GHz with the N100 and 3.60GHz with the N150, delivering responsive, energy-efficient performance for network services, edge gateways, industrial monitoring, digital signage, and embedded control applications.

How Do Four 2.5GbE LAN Ports Support Edge and Network Applications?

Connect More Networks at 2.5GbE Speed

The NXALN51 provides four independent 2.5GbE RJ45 LAN ports powered by Intel® i226 Ethernet controllers, giving system integrators the flexibility to connect uplinks, local networks, management systems, and industrial devices through one compact platform. Support for 10/100/1000/2500Mbps networking and Wake-on-LAN makes it a strong choice for network appliances, edge gateways, industrial networking, and multi-network embedded systems. Routing, firewall, network segmentation, and traffic-management capabilities depend on the installed operating system and software.

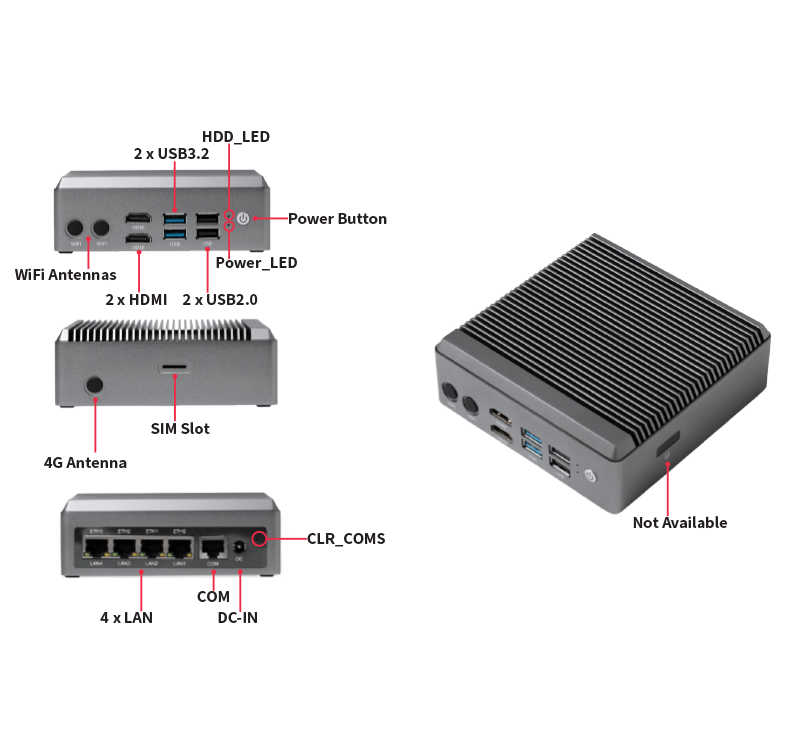

What Connectivity and Expansion Options Does the NXALN51 Provide?

Rich I/O for Flexible Edge Integration

The NXALN51 combines four 2.5GbE LAN ports, two HDMI 2.0 outputs, two USB 3.2 ports, two USB 2.0 ports, an RJ45 RS-232 console port, and a SIM card slot in a compact fanless chassis. Internal expansion includes an M.2 Key B slot for a 2280/2242 SATA SSD or optional 3042 4G module, an M.2 Key E 2230 slot for optional Wi-Fi and Bluetooth, and a SATA 3.0 FPC interface. This rich connectivity allows system integrators to connect wired networks, displays, USB peripherals, serial equipment, storage, wireless modules, and cellular communication for network appliances, edge gateways, industrial control, and other embedded systems.

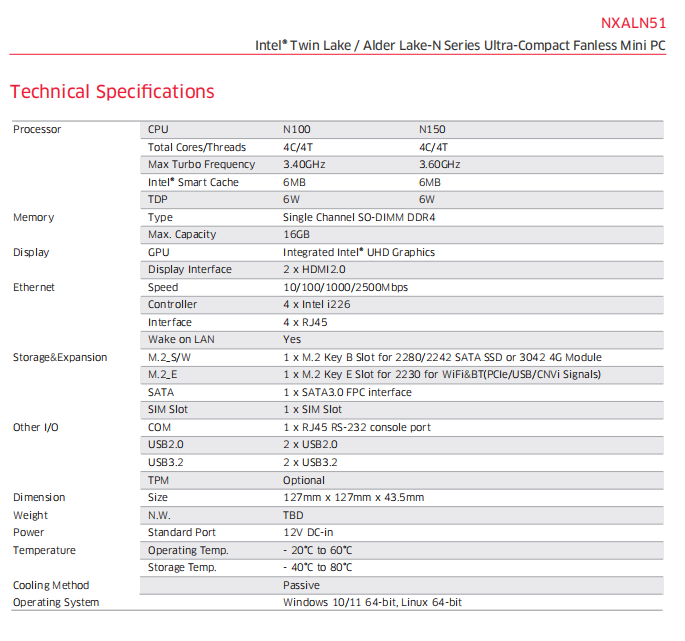

Compact Embedded PC NXALN51 Specification

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

What processors does the NXALN51 support?

The NXALN51 supports the Intel® Processor N100 and Intel® Processor N150. Both options provide four cores, four threads, 6MB cache, and a 6W TDP.

How many Ethernet ports does the NXALN51 provide?

The NXALN51 provides four RJ45 Ethernet ports powered by Intel® i226 controllers. Each port supports 10/100/1000/2500Mbps networking, and the system supports Wake-on-LAN.

What display outputs does the NXALN51 include?

The NXALN51 includes two HDMI 2.0 outputs driven by integrated Intel® UHD Graphics. Maximum resolution and simultaneous-output capabilities should be confirmed for the selected configuration and project requirements.

How much memory does the NXALN51 support?

The NXALN51 supports up to 16GB of single-channel SO-DIMM DDR4 memory.

What storage options are available for the NXALN51?

The NXALN51 includes one M.2 Key B slot for a 2280 or 2242 SATA SSD and one SATA 3.0 FPC interface. The M.2 Key B slot can alternatively be used for an optional 3042 4G module.

Does the NXALN51 support 4G connectivity?

Yes. The M.2 Key B slot can support an optional 3042 4G module, and the system includes a SIM card slot. Because the M.2 Key B slot is shared, it cannot be used for a SATA SSD and a 4G module at the same time.

Does the NXALN51 support Wi-Fi and Bluetooth?

Yes. The NXALN51 includes an M.2 Key E 2230 slot with PCIe, USB, and CNVi signals for installing an optional Wi-Fi and Bluetooth module.

What USB and serial interfaces does the NXALN51 provide?

The NXALN51 provides two USB 3.2 ports, two USB 2.0 ports, and one RJ45 RS-232 console port for peripheral and serial-device integration.

What is the operating temperature range of the NXALN51?

The NXALN51 operates from -20°C to 60°C and has a storage temperature range of -40°C to 80°C. Its passive cooling design enables fanless operation.

What are the dimensions of the NXALN51?

The NXALN51 chassis measures 127 mm × 127 mm × 43.5 mm.

What operating systems does the NXALN51 support?

The NXALN51 supports Windows 10/11 64-bit and Linux 64-bit.

What applications is the NXALN51 designed for?

The NXALN51 is well suited for network appliances, edge gateways, industrial control, embedded monitoring, digital signage, kiosks, and other space-constrained connected systems.
