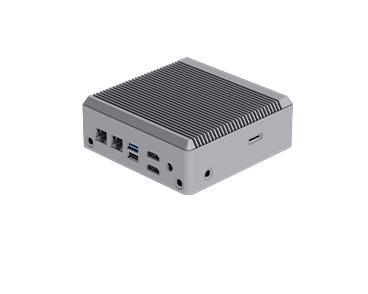

Compact Embedded Pc-NX-N100

NX-N100
Product Description

Compact embedded PC NX-100 Prodcut Description

The Maxtang NX-N100 is a compact embedded PC powered by the Intel® Alder Lake N series processor, offering reliable performance in a fanless design. With Intel UHD Graphics and support for dual displays via 2x HDMI 2.0 and DisplayPort 1.4 (USB-C), it's ideal for multi-display embedded applications such as industrial automation, digital signage, and IoT solutions. The NX-N100 features two Gigabit Ethernet ports, USB 3.2, and a SIM card slot for flexible connectivity.

Features

    Compact embedded PC NX-100 Futures

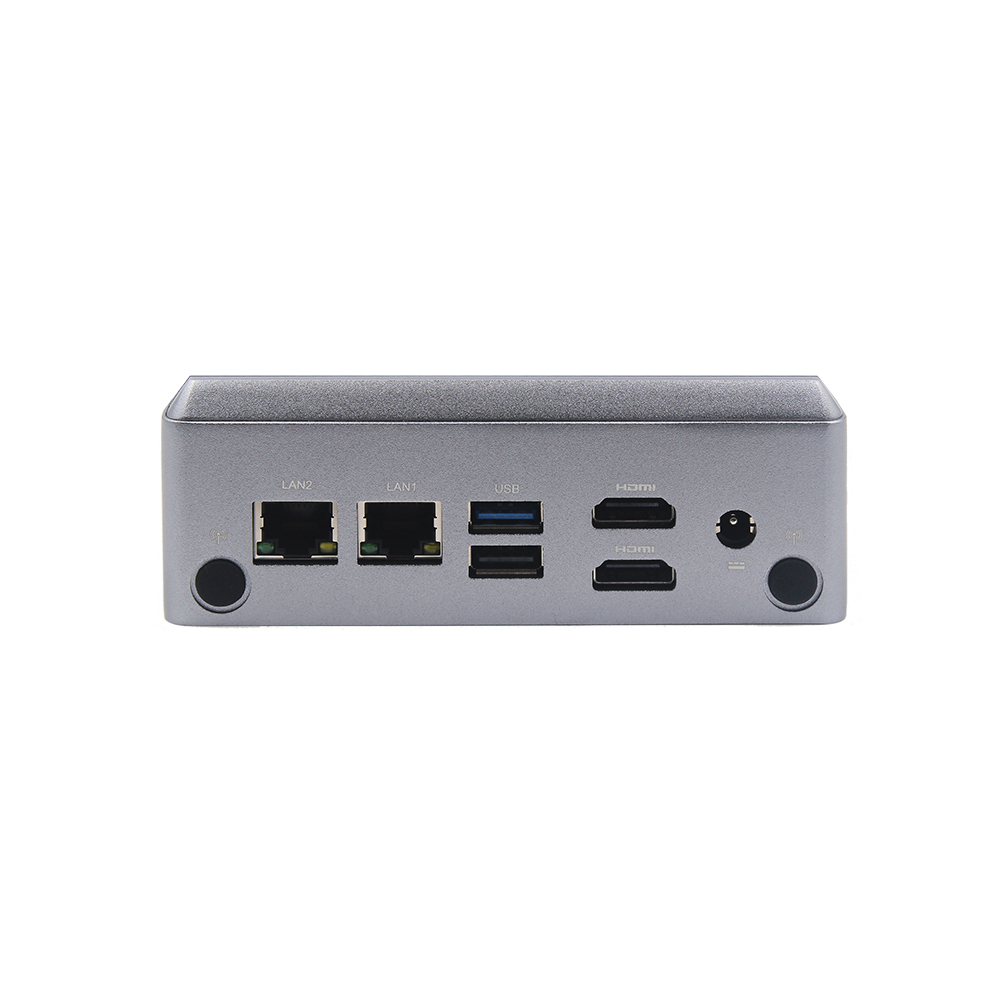

    Compact embedded PC NX-100 front picture.jpg

    • CPU: Intel® Alder Lake N series Processor

    • Memory: Single Channel SO-DIMM DDR4 up to 16GB

    • Display: Intel® Integrated Graphics via 2xHDMI®

    • I/O Ports: 2xLAN, 3xUSB3.2, 1xUSB2.0

    • Ethernet: 10/100/1000/2500Mbps

    • Storage: 1x M.2 2280 SATA/4G, 1xSATA (FPC)

    • Power: 12V DC-in

12th Alder-N N100 Processor

Intel® 12th Alder-N N100 Processor
Powered by the Intel® Alder Lake-N100 (4 cores, 4 threads, 6MB cache, up to 3.40GHz), the NX-N100 delivers efficient performance with a low 6W TDP. Featuring Gracemont cores, it provides up to 45% higher performance compared to Gemini Lake processors, making it well-suited for everyday computing and embedded applications. The system supports up to 32GB single-channel DDR4 and integrated Intel® UHD Graphics with 4K @ 60Hz display output.

Wide Range of Applications

Wide Range of Applications
The NX-N100 is designed for versatile deployments across both consumer and industrial fields.
With powerful Intel® Alder Lake-N processing and integrated UHD Graphics, it supports smooth
home entertainment experiences such as streaming, multi-display setups, and media playback.
At the same time, its ultra-compact, fanless, and energy-efficient design makes it an excellent choice
for edge computing, enabling reliable performance in IoT gateways, digital signage, retail kiosks, and
smart automation scenarios. Its combination of rich connectivity and robust build ensures long-lasting
operation in diverse environments.

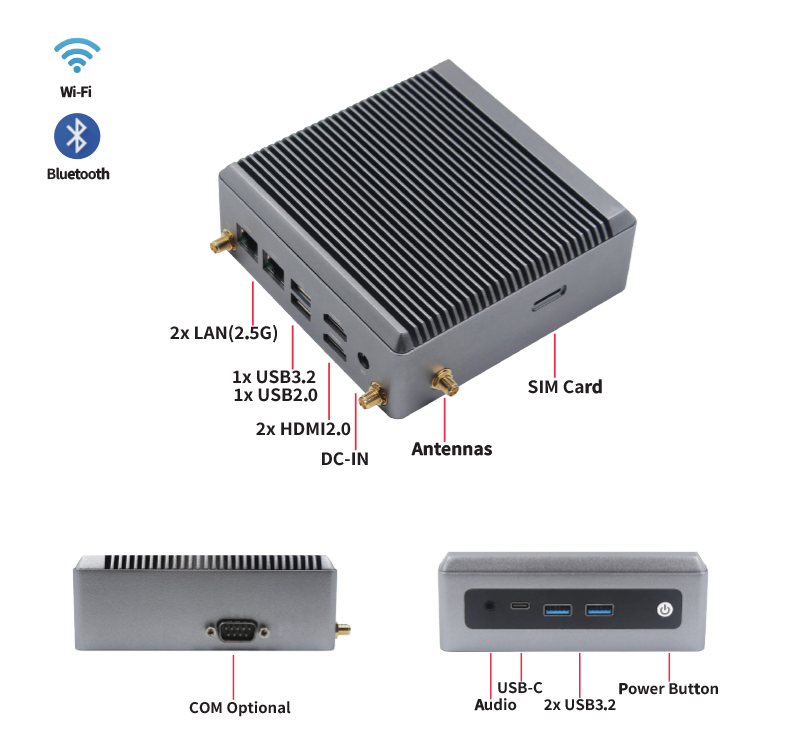

Comprehensive Connectivity

Comprehensive Connectivity
The NX-N100 features dual 2.5GbE RJ45 Ethernet ports, M.2 SATA/NVMe SSD storage, and an additional M.2 slot for Wi-Fi/Bluetooth expansion. It supports PCIe, USB, and CNVi, offering flexibility for system integration. Rich I/O includes 2 × LAN, 3 × USB 3.2, 1 × USB 2.0, 2 × HDMI® 2.0, DP1.4 (USB-C), and USB-C with standard 12V DC-in. With a wide operating temperature range of -20°C to 60°C, it ensures reliable performance in industrial deployments, while also supporting edge computing, office productivity, and home entertainment.

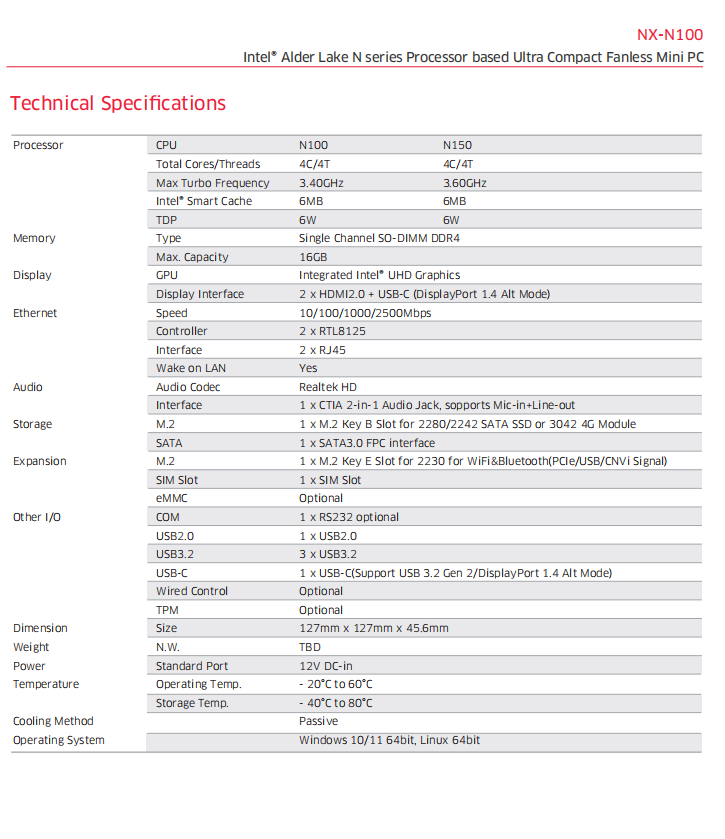

Technical Parameters

Compact Embedded Pc NX-N100 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What board or chassis size does it follow?
    The NX-N100 uses a custom ultra-compact chassis, sized 127 × 127 × 45.6 mm.
  • What operating systems are supported?
    It supports Windows 10/11 64-bit and Linux 64-bit.
  • What expansion interfaces are available? (GPIO, PCIe, M.2, Mini-PCIe)
    It includes:
    1× M.2 2280/2242 for SATA SSD or 4G;
    1× M.2 for Wi-Fi (PCIe/USB/CNVi);
    1× SIM slot
  • What application scenarios is NX-N100 suitable for?
    With its fanless design, compact size, dual HDMI + USB-C DP, built-in Wi-Fi/Bluetooth, and rich I/O, it is suitable for kiosks, PoS, retail systems, digital signage, and various IoT/embedded applications.
Downloads
User Manual_NX-N100 Drivers Audio_Realtek_ALC897 Drivers LAN_Realtek_2.5GbE Drivers Intel Alder Lake N Series Datasheet_NX-N100
