Product Description

compact embedded pc NX6412-2L Product Description

The Maxtang NX6412-2L is a compact embedded PC powered by the Intel® Elkhart Lake J6412 processor, designed for industrial embedded systems. It features Intel UHD Graphics and supports dual independent displays via 2x HDMI 2.0, making it ideal for multi-display embedded applications like industrial automation and digital signage. The NX6412 includes two Gigabit Ethernet ports and Type-C connectivity, offering robust performance for network-intensive embedded applications, such as IoT solutions and edge computing.

Features

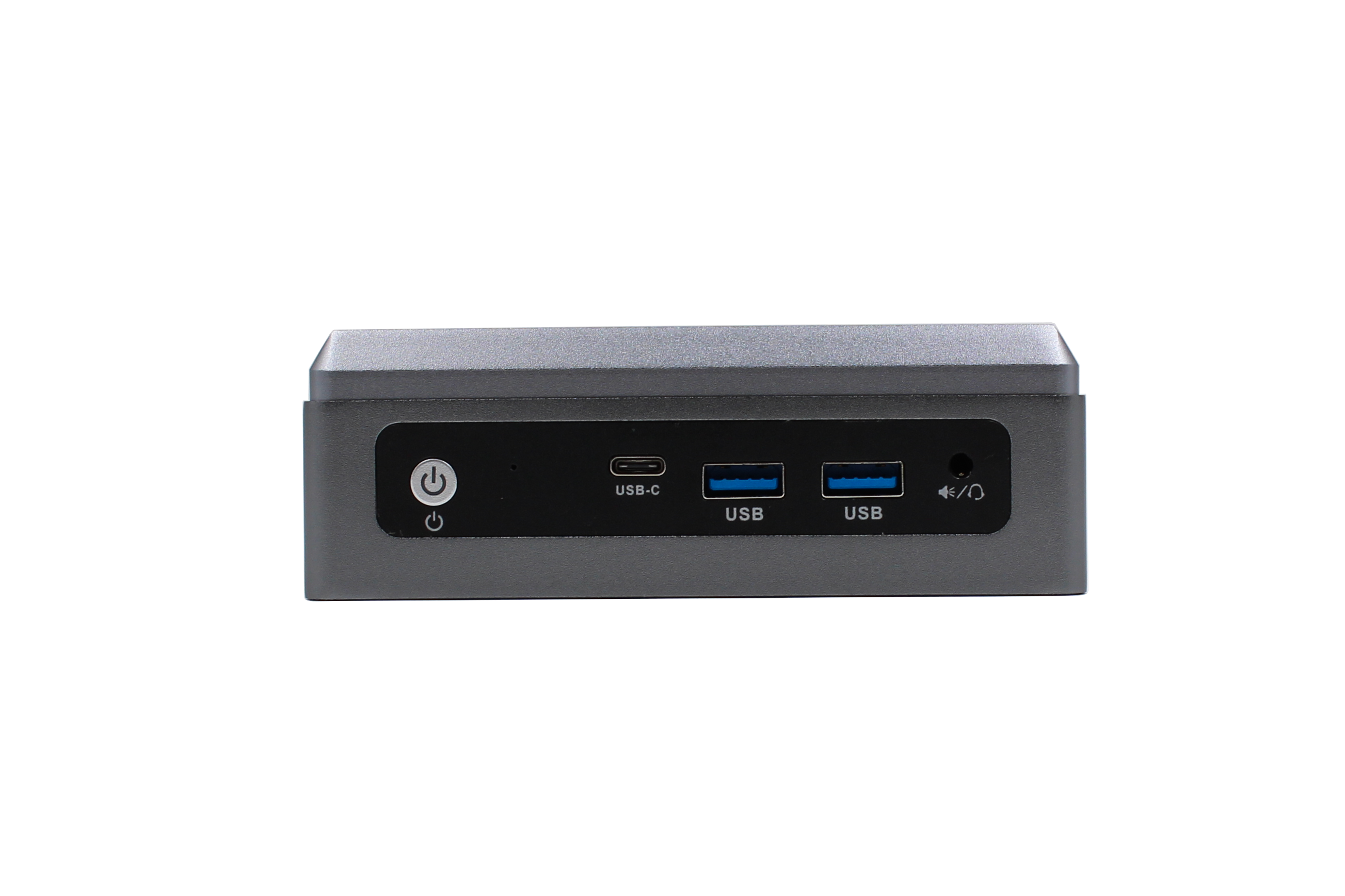

compact embedded pc NX6412-2L front picture.jpg

CPU: Intel^® Elkhart Lake J6412 Processor
Memory: Dual Channel SO-DIMM DDR4 up to 32GB
Display via: Intel^® Integrated Graphics display via 2xHDMI^®2.0
I/O Ports: 2xLAN, 2xUSB3.2, 2xUSB2.0, Type-C, SIM
Ethernet: 10/100/1000Mbps
Storage: 1x M.2 2242/2280 SSD, SATA optional
Power: 12V DC-in

Intel^® Elkhart Lake J6412 Processor

Powered by Intel^® Elkhart Lake Celeron J6412 processor, the NX6412 provides you excellent performance with long life expectancies. The processor has 4cores 4threads, 1.5MB L2 Cache, up to 2.60GHz with a 10W TDP rate. It has a 1.7x improvement in single-thread performance and 1.5x improvement in multi-thread performance generation over generation, 2x performance improvement in graphics over the previous generation

Compact, Fanless, Robust

The NX6412 undergo rigorous noise, vibration, drop,
and thermal shock tests to ensure they meet exacting
Maxtang standard and exceed industry requirements.
We are confident that the product can cope with extreme
conditions like humid and hot environments for long periods.

Comprehensive connectivity

It provides comprehensive connectivity with multiple ports
including 2x USB3.2, 2xUSB2.0, 2xLAN, 1xCOM optional on the side
and 2xHDMI^®2.0 for dual independent display.

Fanless Cooling

Efficient passive design ensures stable, silent heat dissipation.

Vesa Mounted

Supports VESA mount compliant, allows for versatile integration into hardware systems.

Technical Parameters

Specifications

NX6412 Specifications.png

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
