Compact Fanless Pc-NX6412-4L

NX6412-4L
Product Description

NX6412-4L Product Description

Maxtang NX6412-4L is a compact embedded PC built on the Intel® Elkhart Lake J6412 processor, delivering reliable, energy-efficient performance for industrial and commercial applications. Designed for 24/7 operation, this compact fanless system supports up to 32GB DDR4 memory and dual HDMI 2.0 displays, making it ideal for automation, monitoring, and digital signage. Featuring 4×LAN with up to 2.5GbE and built-in Wi-Fi, Bluetooth, and SIM expansion, the NX6412-4L provides strong connectivity for IoT gateways, edge computing, industrial networking, and embedded control systems.

Features

    NX6412-4L Features


    • CPU: Intel® Elkhart Lake J6412 Processor

    • Memory: Single Channel SO-DIMM DDR4 up to 32GB

    • Display: Intel® Integrated Graphics display via 2xHDMI2.0

    • I/O Ports: 4xLAN, 2xUSB3.2, 2xUSB2.0, 1xCOM, 1xSIM

    • Ethernet: 10/100/1000/2500Mbps, Intel® i225/i226

    • Storage: 1x M.2 2242/2280 SSD, 2.5-inch SATA optional

    • Power: 19V/20V DC-in


Intel® Elkhart Lake J6412 Processor

Intel® Elkhart Lake J6412 Processor
Powered by the Intel® Elkhart Lake J6412 processor, the NX6412-4L delivers efficient performance with 4 cores and 4 threads, a 1.5MB L2 cache, and up to 2.6GHz burst frequency at just 10W TDP. Compared with the previous generation, it achieves up to 1.7× better single-thread performance, 1.5× better multi-thread performance, and 2× graphics improvement, ensuring reliable computing power for compact embedded and industrial applications.


Compact, Fanless,Robust

Compact, Fanless,Robust
The NX6412-4L is a compact, fanless, and industrial-grade mini PC designed

for reliability and durability.It passes rigorous noise, vibration, drop,
and thermal shock tests, ensuring stable performance in rugged environments.
Built for harsh industrial conditions, it withstands humidity, high temperatures,
and long-term operation, making it a reliable choice for industrial automation
and demanding edge applications.

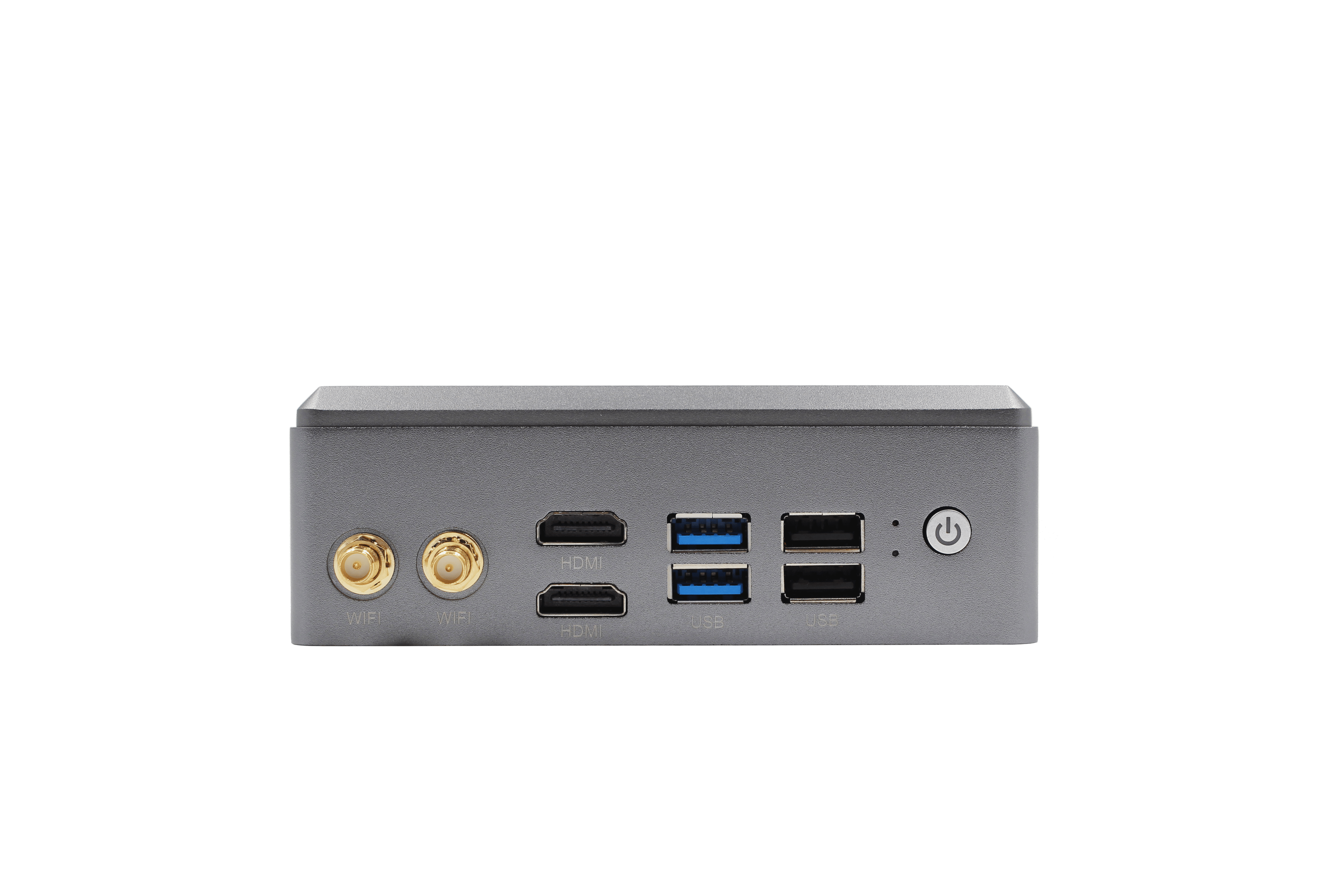

Comprehensive connectivity

Comprehensive connectivity
It provides comprehensive connectivity with multiple ports
including 2x USB3.2, 2xUSB2.0, 4xLAN, 1xCOM, SIM on the side
and 2xHDMI®2.0 for dual independent display.


Vesa Mounted

Vesa Mounted

Supports VESA mount compliant, allows for versatile integration into hardware systems.


Multiple Display

Multiple Display
Display via 2xHDMI® through Intel UHD graphics. Expanded visual experience, great for multitasking


Technical Parameters

Compact Embedded Pc NX6412-4L Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What board or chassis size does it follow?
    The NX6412-4L uses a custom ultra-compact chassis measuring 127 × 127 × 43.5 mm.
  • What operating systems are supported?
    It supports Windows 10/11 64-bit and Linux 64-bit.
  • What expansion interfaces are available? (GPIO, PCIe, M.2, Mini-PCIe)
    It includes:
    1× M.2 slot for 2242/2280 SSD (SATA only) or 4G;
    1× M.2 slot for Wi-Fi;
    1× SIM slot
  • What application scenarios is NX6412-4L suitable for?
    Its fanless design, 4× LAN ports, compact size, and dual HDMI displays make it suitable for network appliances, gateways, firewalls, IoT edge computing, and industrial automation systems.
Downloads
Datasheet_NX6412-4L User Manual_NX6412-4L Drivers Audio_Realtek_ALC897 Drivers LAN_Intel_2.5GbE Drivers Intel Elkhart Lake Series
