Compact Embedded Pc-DBYT-50

DBYT-50
Product Description

compact embedded pc DBYT-50 Prodcut Description

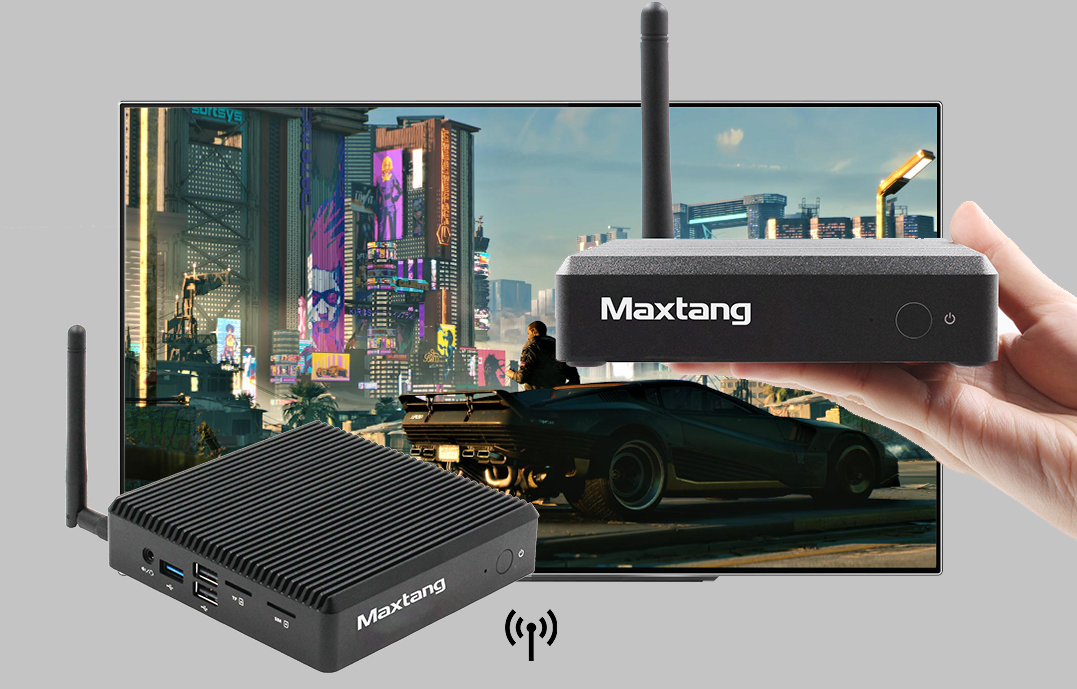

The Maxtang DBYT-50 is a compact embedded PC powered by Intel® Bay Trail processors, offering reliable performance in a fanless design. With Intel HD Graphics and support for dual displays via mini-HDMI and VGA, it's perfect for industrial automation and digital signage applications. The DBYT-50 features one Gigabit Ethernet port, USB3.2, and mini-PCIe for Wi-Fi, making it suitable for IoT solutions and edge computing.

Features

    compact embedded pc DBYT-50 Features

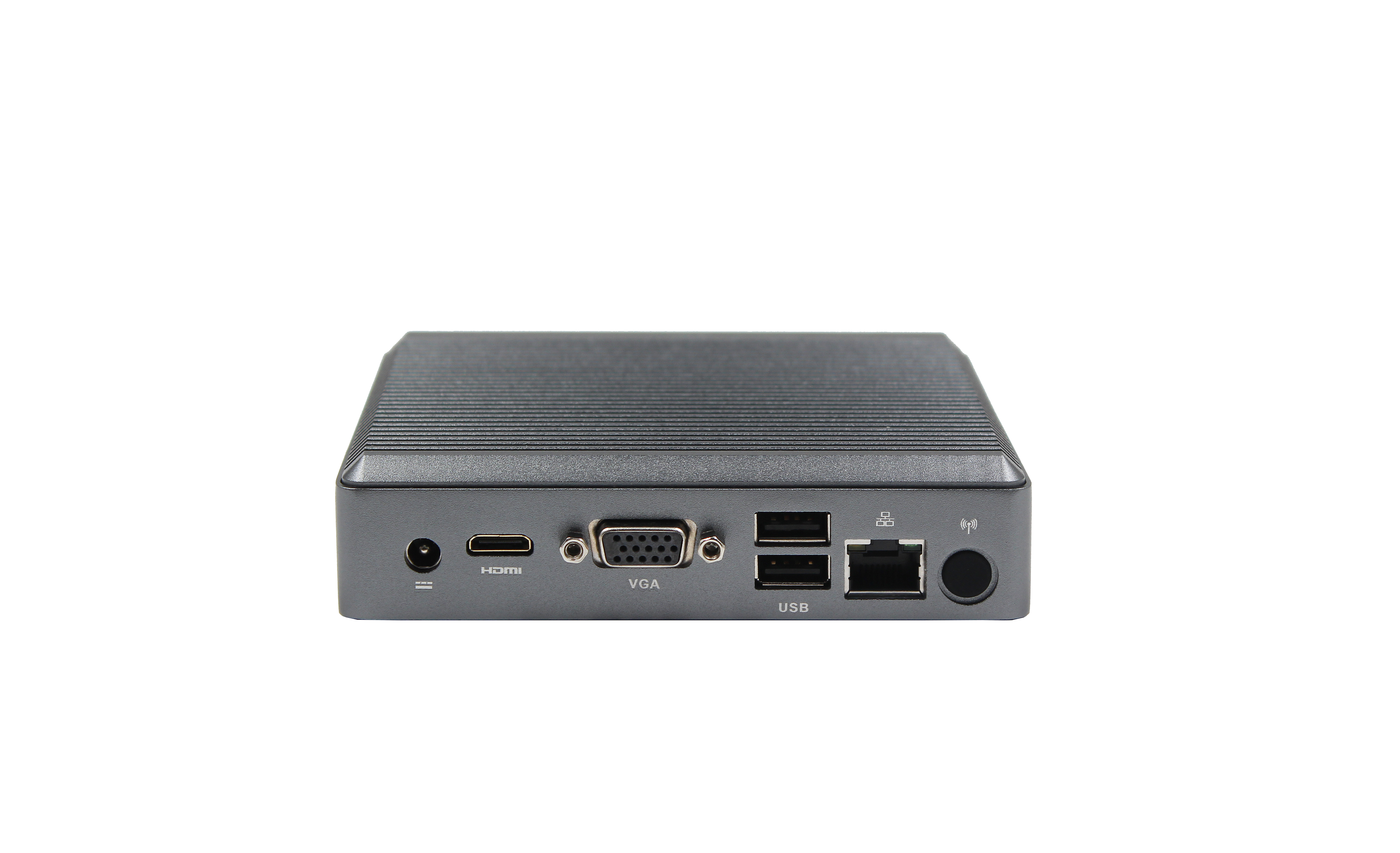

    compact embedded pc DBYT-50 front picture.jpg

    • Aluminum enclosure

    • Intel® Bay Trail Celeron processor

    • Supports singel channel DDR3L-1600MHz up to 8GB memory

    • mSATA interface for SSD, wifi, 4G module

    • Embedded, VESA mount and desktop ready for easy installation

    • Fanless design and low power consumption

Intel® Bay Trail Processors

The Intel® Bay Trail processors are built on a 22 nm process with tri-gate transistors, delivering improved power efficiency and performance. Based on the Silvermont architecture, they feature optimized branch prediction, deeper buffers, and enhanced decoders, which together boost instructions per clock by up to 50% over the earlier Atom "Saltwell" generation. With multiple SKUs available, such as the Celeron® N2807, J1800, and J1900, Bay Trail provides scalable performance for fanless embedded systems and compact industrial PCs.

Next Unit of Computing

"Next Unit of Computing"
The DBYT-50 is a compact, box-shaped mini PC that
integrates a complete system into its small chassis.
Built with a durable aluminum alloy enclosure,
it supports VESA mounting for flexible installation and
provides efficient heat dissipation, making it an excellent
space-saving solution for embedded and industrial deployments.

I/O Interfaces

I/O Interfaces
The DBYT-50 provides comprehensive connectivity, including one RJ45 Gigabit Ethernet port,
mSATA for storage, and a mini PCIe slot for Wi-Fi expansion, with optional eMMC.
Additional I/O includes 1 × USB 3.2, 4 × USB 2.0, mini HDMI®, VGA for dual display,
and a 2-in-1 audio jack. A standard 19V DC-in ensures compatibility with most market requirements.

Fanless Cooling

Fanless Cooling

Efficient passive design ensures stable, silent heat dissipation.





Vesa Mounted

Vesa Mounted

Supports VESA mount compliant, allows for versatile integration into hardware systems.

Technical Parameters

Compact Embedded Pc DBYT-50 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What board or chassis size does it follow?
    The DBYT-50 uses a compact custom chassis, sized 127 × 127 × 30 mm.
  • Does it support fanless cooling?
    Yes, it features a passive fanless cooling design for silent operation and improved reliability in dusty environments.
  • What operating systems are supported?
    It supports Windows 7/8/10 64-bit and Linux 64-bit.
  • What application scenarios is DBYT-50 suitable for?
    With its fanless design, compact size, HDMI+VGA dual display, and rich I/O, it is suitable for digital signage, kiosks, retail POS, industrial automation, and general embedded applications.
Downloads
Datasheet_DBYT-50 Drivers Audio_Realtek_ALC662 Drivers LAN_Realtek_1.0GbE Drivers Intel Bay Trail Series
