SXRL-20 is a compact embedded PC powered by Intel® Alder Lake-U / Raptor Lake-U processors, designed for demanding multi-display and video integration applications. It supports up to 4× HDMI outputs and 1× HDMI input, dual LAN with up to 2.5GbE connectivity, and flexible M.2 expansion for storage and wireless modules, making it ideal for digital signage, video walls, and industrial control systems.
CPU: Intel® Alder Lake/Raptor Lake-U Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display: Integrated Intel® UHD/Iris® Xe Graphics
Ethernet: 10/100/1000/2500Mbps
Storage: M.2 for NVMe/SATA SSD,M.2 for NVMe SSD

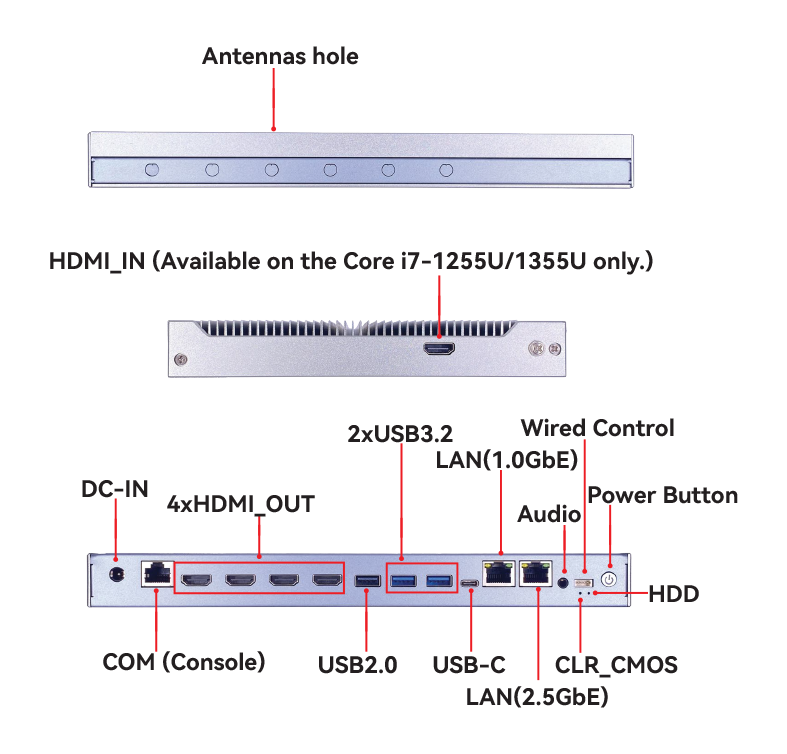

I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 1xUSB2.0, 1xUSB-C, SIM, 4xHDMI_OUT, 1xHDMI_IN, Wired Control
Power: 19V DC-in/Phoenix 2-pin Optional
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.
*All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Datasheet_SXRL-20
