Product Description

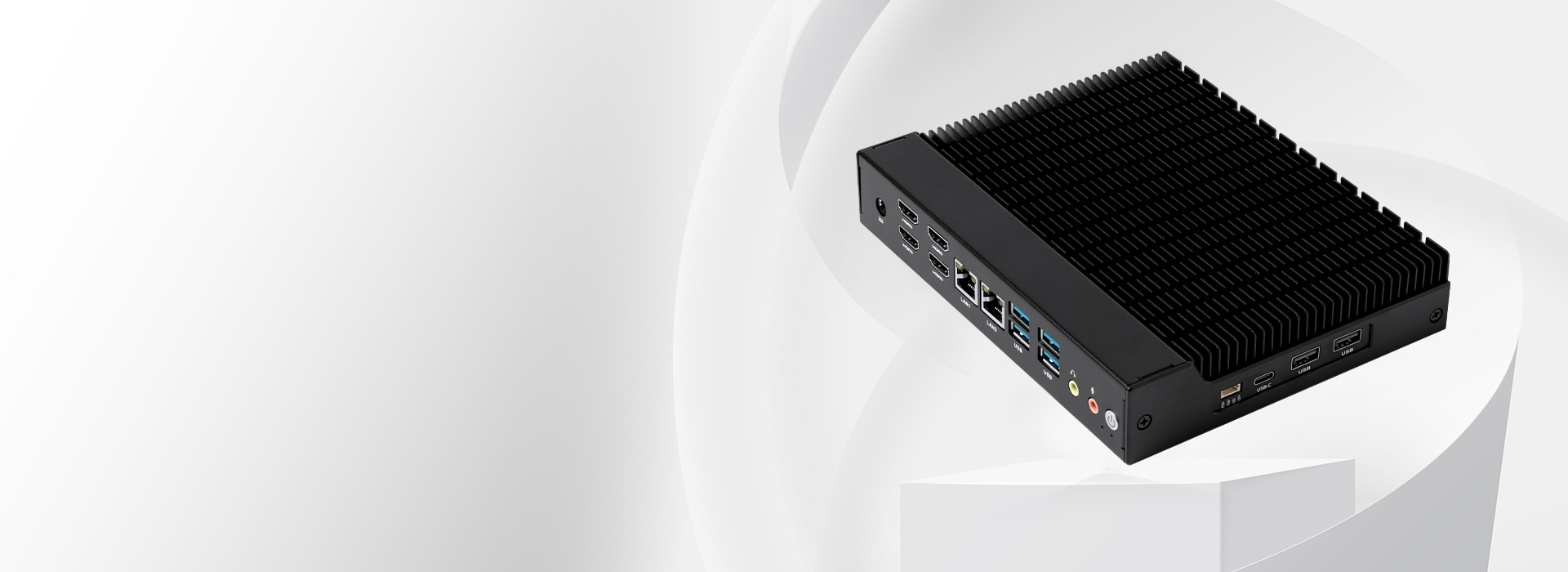

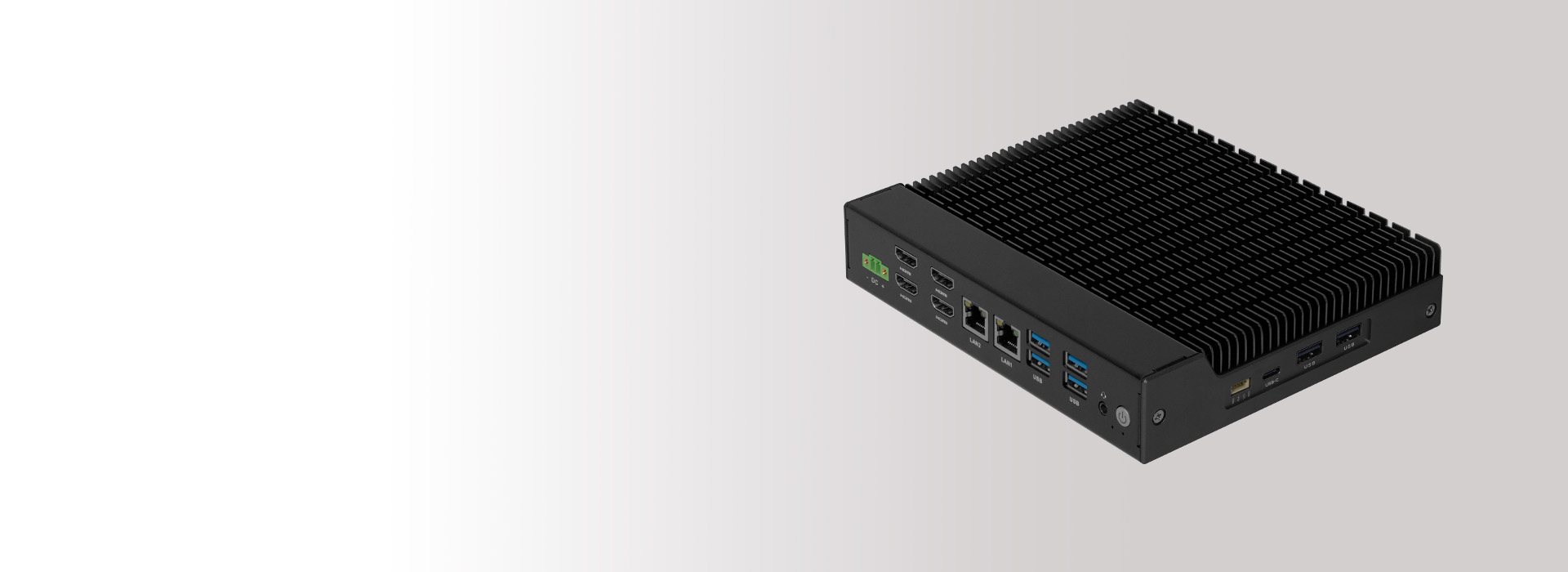

The Maxtang SXC-ARL30 is a compact, high-performance embedded mini PC powered by Intel® Meteor Lake and Arrow Lake-U/H processors, offering configurations up to 16 cores and 22 threads with turbo frequencies up to 4.8GHz. It supports dual-channel DDR5 memory expandable to 96GB and integrates Intel® Graphics or Intel® Arc™ GPUs with Intel® AI Boost NPU for accelerated AI inference. With four HDMI 2.0 outputs plus USB-C (DP 1.4), the system drives up to four 4K displays simultaneously with HDMI Hot-Plug Lock for enhanced stability, making it ideal for multi-display industrial and AI-driven applications.

The SXC-ARL30 provides robust connectivity with dual LAN (1GbE and 2.5GbE), four USB 3.2, two USB 2.0, USB-C, and two COM ports, alongside flexible expansion via M.2 slots for NVMe, SATA, Wi-Fi, Bluetooth, and 4G modules with Nano SIM support. It offers RTC scheduling, onboard TPM (optional), and power input flexibility with 9–36V Phoenix or 19V DC-IN. Its rugged design with passive or active cooling options, wide operating temperature range (−20°C to 60°C), and watchdog monitoring ensure reliable 24/7 operation in industrial automation, AI, digital signage, and edge computing environments.

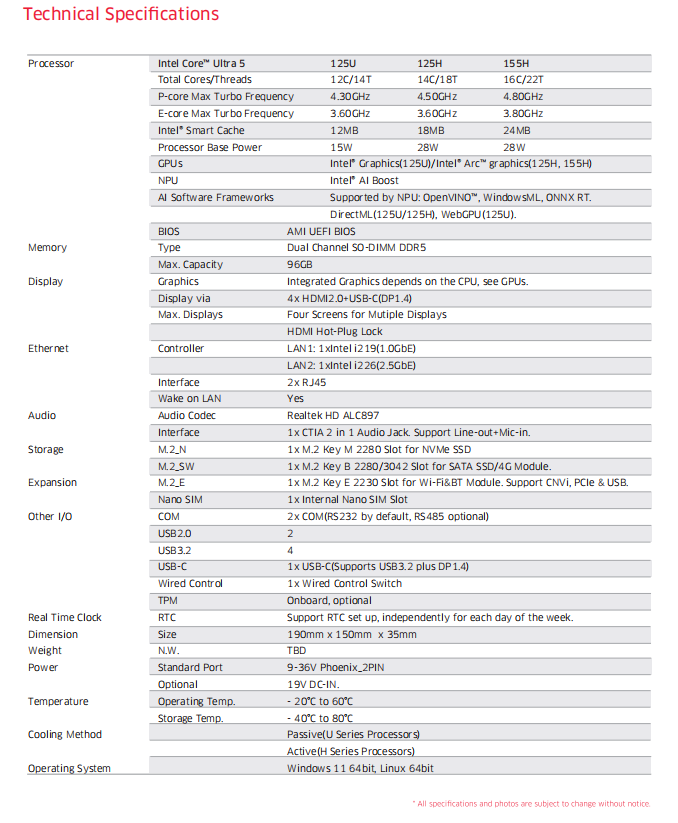

Features

• CPU:CPU: Intel® Meteor Lake/Arrow Lake-U/H Processor

• Memory: Dual Channel SO-DIMM DDR5 up to 96GB

• GPU: Integrated Intel® Graphics, Max Four Displays.


• Ethernet: 10/100/1000/2500Mbps


• Storage: M.2_N Slot for NVMe SSD, M.2_SW Slot for SATA SSD/4G

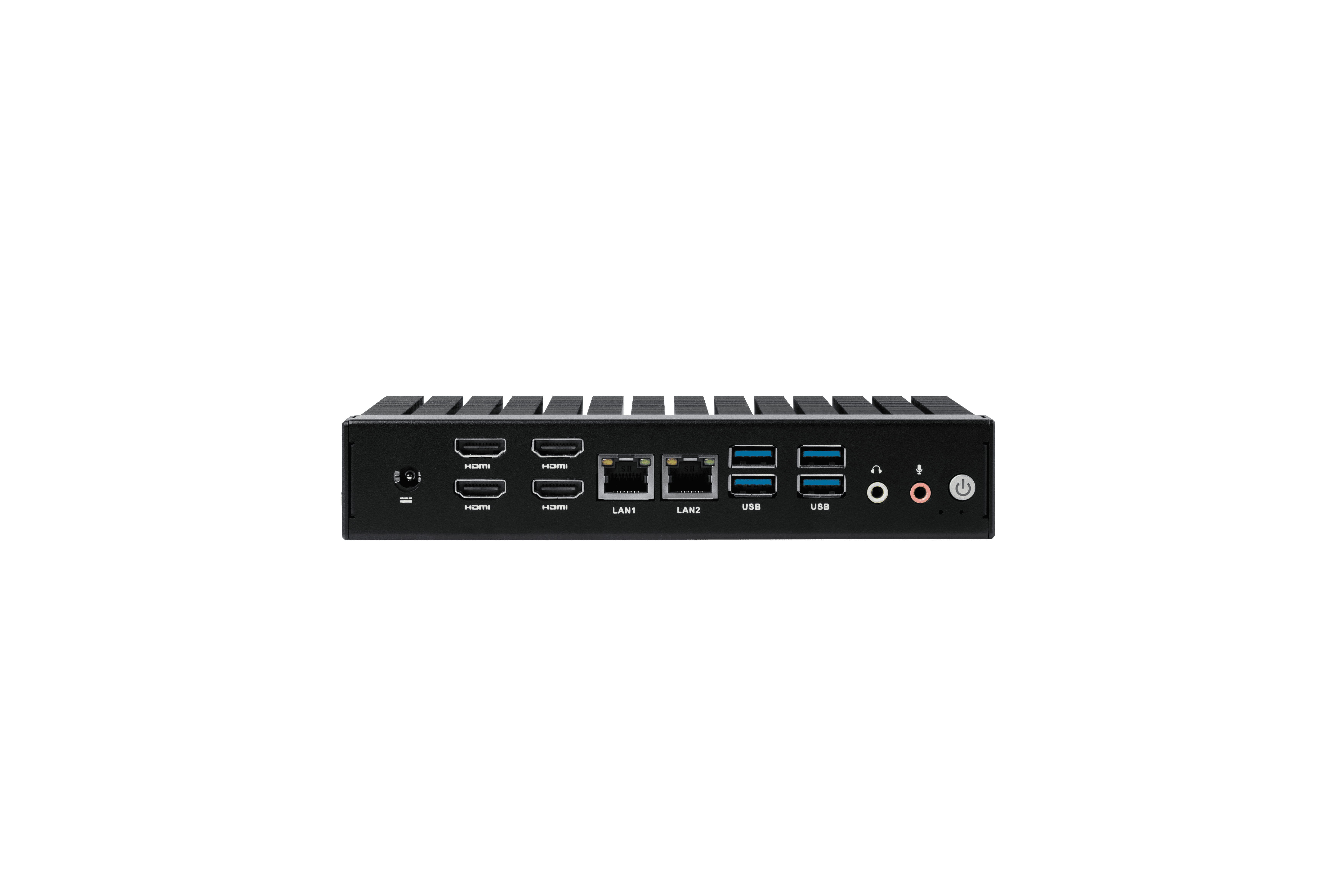

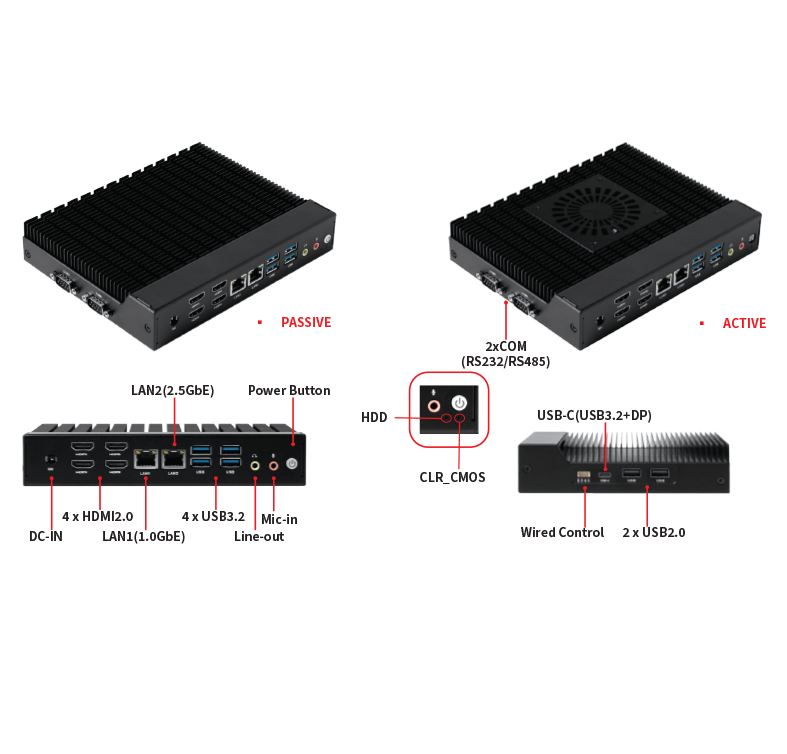

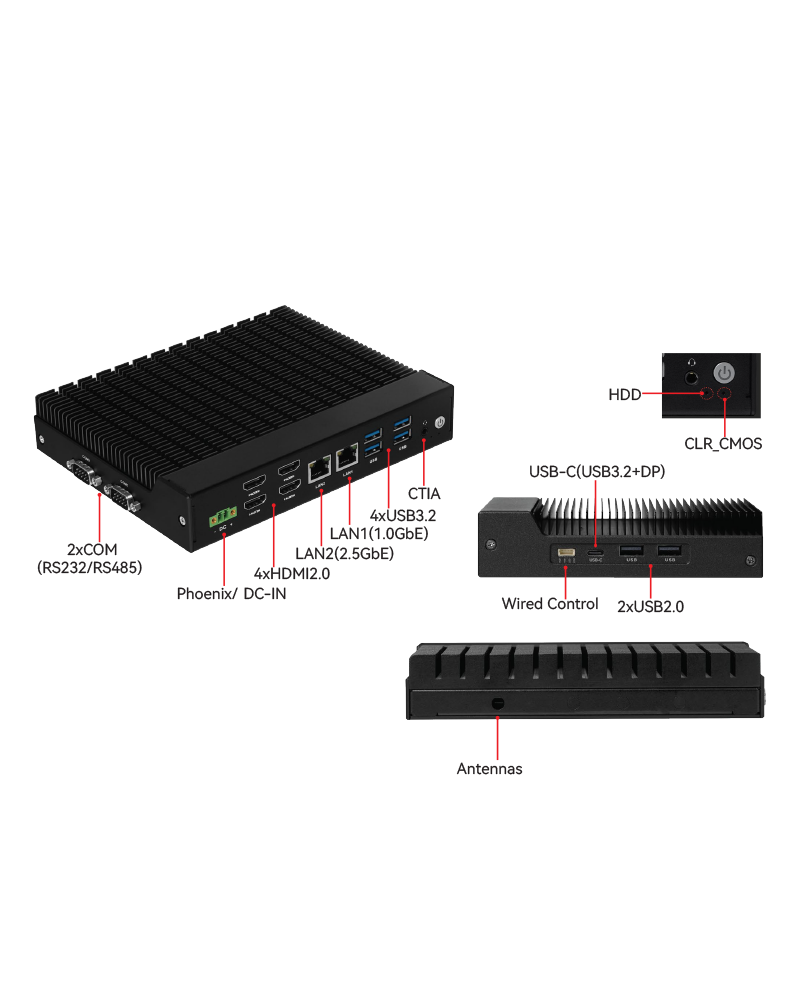

• I/O Ports: 2xLAN, 2xCOM, 4xUSB3.2, 2xUSB2.0, 4xHDMI


• Expansion: M.2 Key E for Wi-Fi(support CNVi, PCIe&USB), Nano SIM

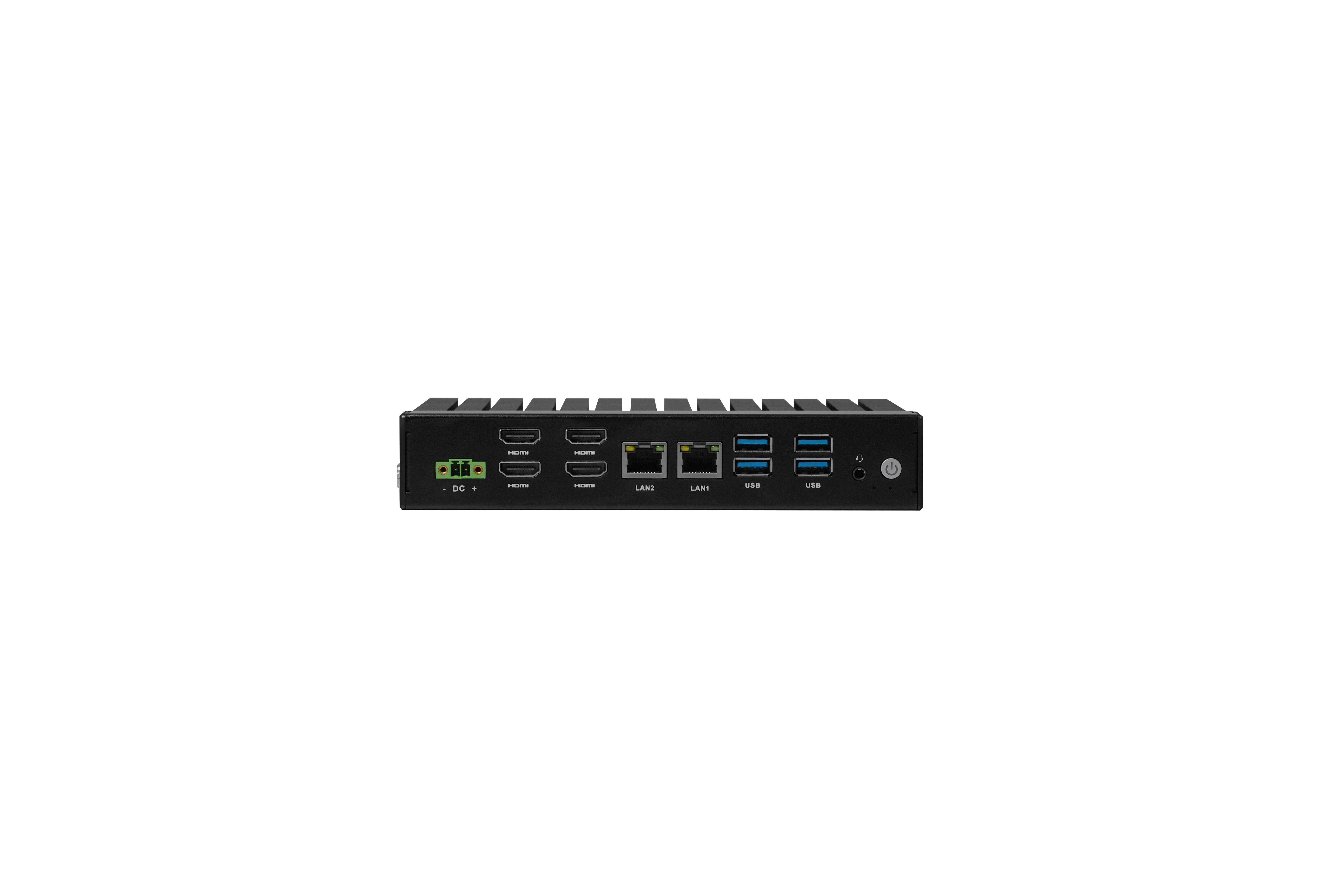

• Power: 19V DC-IN/9-36V Phoenix optional

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.
