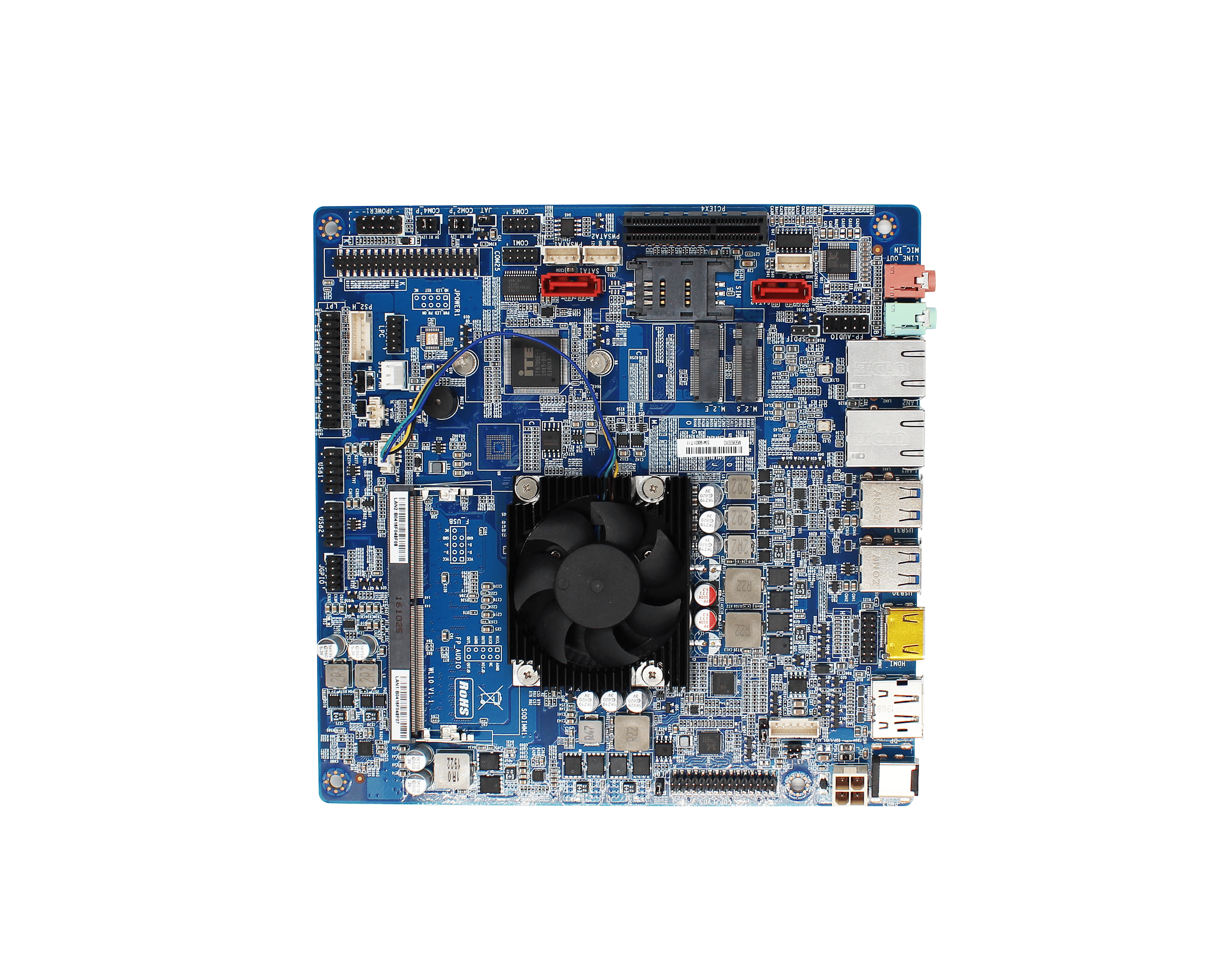

Mini ITX-WL-10

WL-10
Product Description

Mini ATX WL-10 Product Description

The WL-10 Mini-ITX motherboard is designed to meet the needs of various industries, offering high performance in a compact form. With its Intel® Whiskey Lake-U processors, it is ideal for applications such as industrial control, medical systems, smart schools, and digital signage. The motherboard’s powerful processing and multi-display capabilities ensure seamless integration into these environments, delivering improved user experiences and enhanced productivity. Whether used in embedded systems, interactive kiosks, or high-performance workstations, the WL-10 is built to support a wide range of applications with reliability and efficiency.

Features

    Mini ATX WL-10 Features

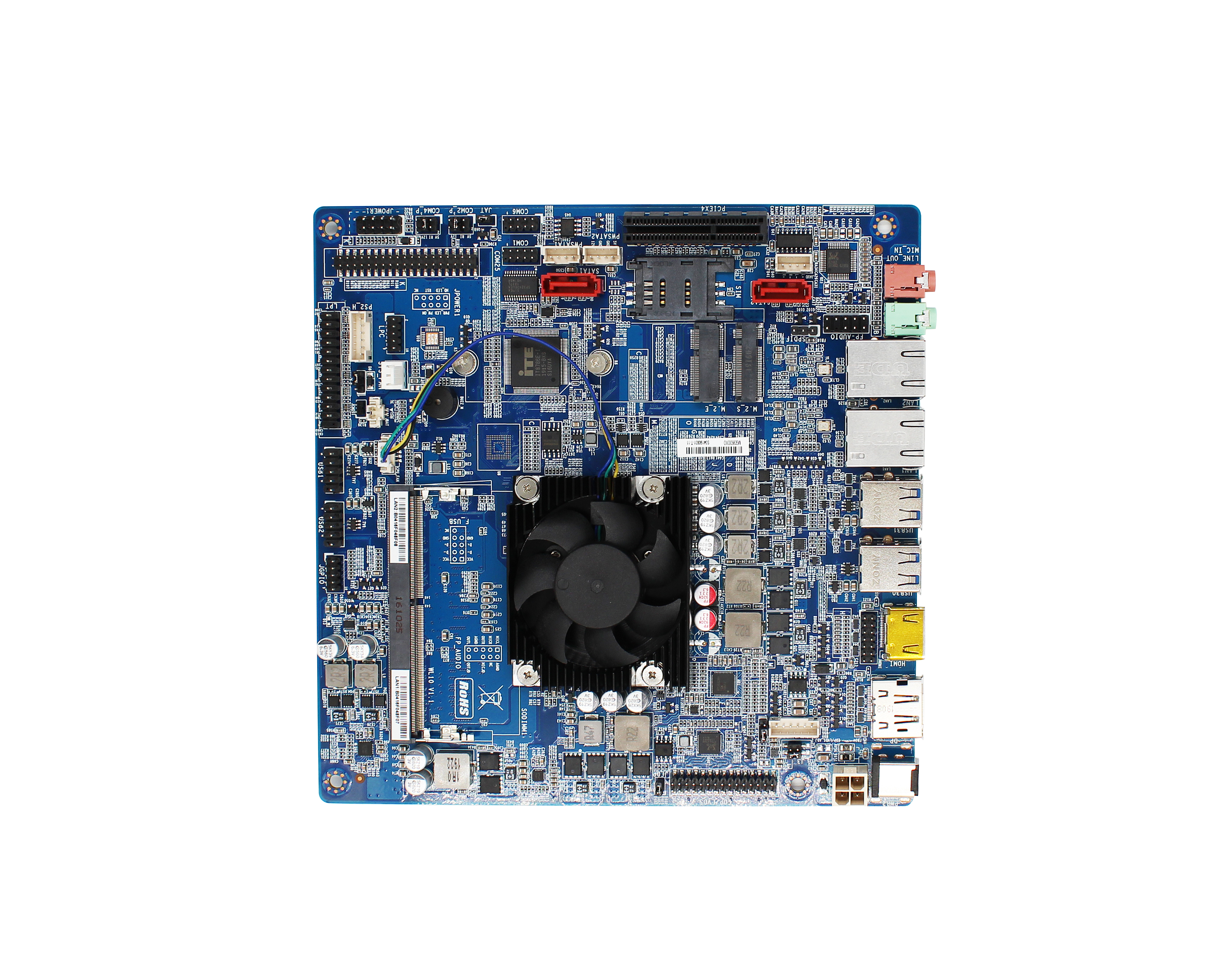

    WL-10 .png

    • CPU: Intel® Whiskey Lake/Comet Lake-U Processors

    • Memory: Dual channel SO-DIMM DDR4 up to 64GB

    • Display: Intel® UHD Graphics display via HDMI, DP, eDP/LVDS

    • Ethernet: 10/100/1000 Mbps

    • Storage: M.2 for SSD/4G, SATA3.0

    • Expansion: M.2 for WiFi, PCIe 4X

    • Power: 12V DC-in



Mini-ATX WL-10 High-Performance Processor

High-Performance Processor
The WL-10 Mini-ITX motherboard is powered by Intel® Whiskey Lake-U and Comet Lake-U series processors, offering a range of options including Intel® Celeron, Pentium, Core™ i3, and Core™ i5 models. These processors provide up to 4 cores and 8 threads with a 15W TDP, ensuring efficient and powerful performance for embedded and industrial applications. With base frequencies ranging from 1.60GHz to 2.10GHz and Turbo frequencies up to 4.20GHz, the WL-10 delivers the performance required for multi-tasking and high-demand environments, making it an ideal solution for a wide range of applications from industrial control to digital signage.

Wide Range Of Application

Wide Range Of Applications
Low power consumption architecture, high performance and compact design, great for various applications.The WL-10 Mini-ITX motherboard is designed to meet the needs of various industries, offering high performance in a compact form. With its Intel® Whiskey Lake-U processors, it is ideal for applications such as industrial control, medical systems, smart schools, and digital signage. The motherboard’s powerful processing and multi-display capabilities ensure seamless integration into these environments, delivering improved user experiences and enhanced productivity. Whether used in embedded systems, interactive kiosks, or high-performance workstations, the WL-10 is built to support a wide range of applications with reliability and efficiency.


Industrial controlling
Medical
Smart school
Digital signage

Mini-ATX WL-10 Comprehensive I/O Ports

Comprehensive I/O Ports
The WL-10 Mini-ITX motherboard offers a robust set of interfaces, including 6x COM ports, 2x LAN ports, 3x USB 3.2, 5x USB 2.0, LPT, PS/2, and 8x GPIO, ensuring flexibility to meet the connectivity needs of a wide range of industrial and embedded applications.

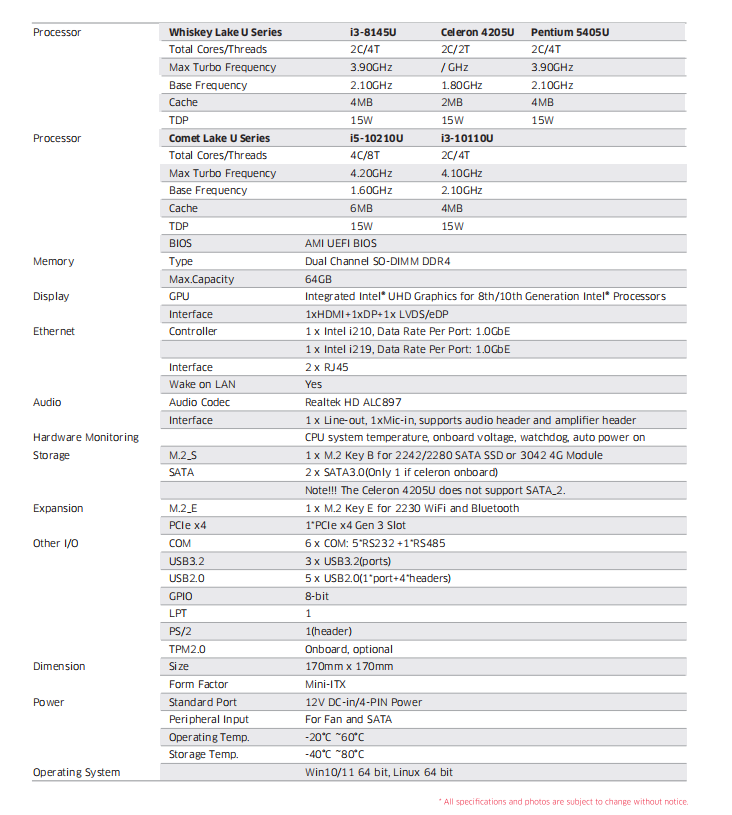

Technical Parameters

Specification






*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
User Manual_WL-10 Drivers Intel Whiskey Lake Series Drivers LAN_Intel_1.0GbE Drivers Intel Comet Lake Lake Series Drivers Audio_Realtek ALC662 Drivers Audio_Realtek ALC897 Datasheet_WL-10
