Mini ITX-JSL-15

JSL-15
Product Description

Mini ATX Motherboard JSL-15 Product Describtion

The JSL-15 Mini-ITX motherboard, powered by Intel® Jasper Lake processors, offers high-performance computing with low power consumption. It supports up to 16GB of DDR4 memory and features versatile storage options like M.2 for SSD and SATA. With integrated Intel UHD Graphics, it supports multiple displays via HDMI, VGA, and LVDS, making it perfect for digital signage, embedded systems, and industrial automation. Equipped with USB 3.2, USB 2.0, LAN, and an optional TPM2.0 for security, this compact motherboard delivers reliable performance for various applications, from transportation to communication systems.

Features

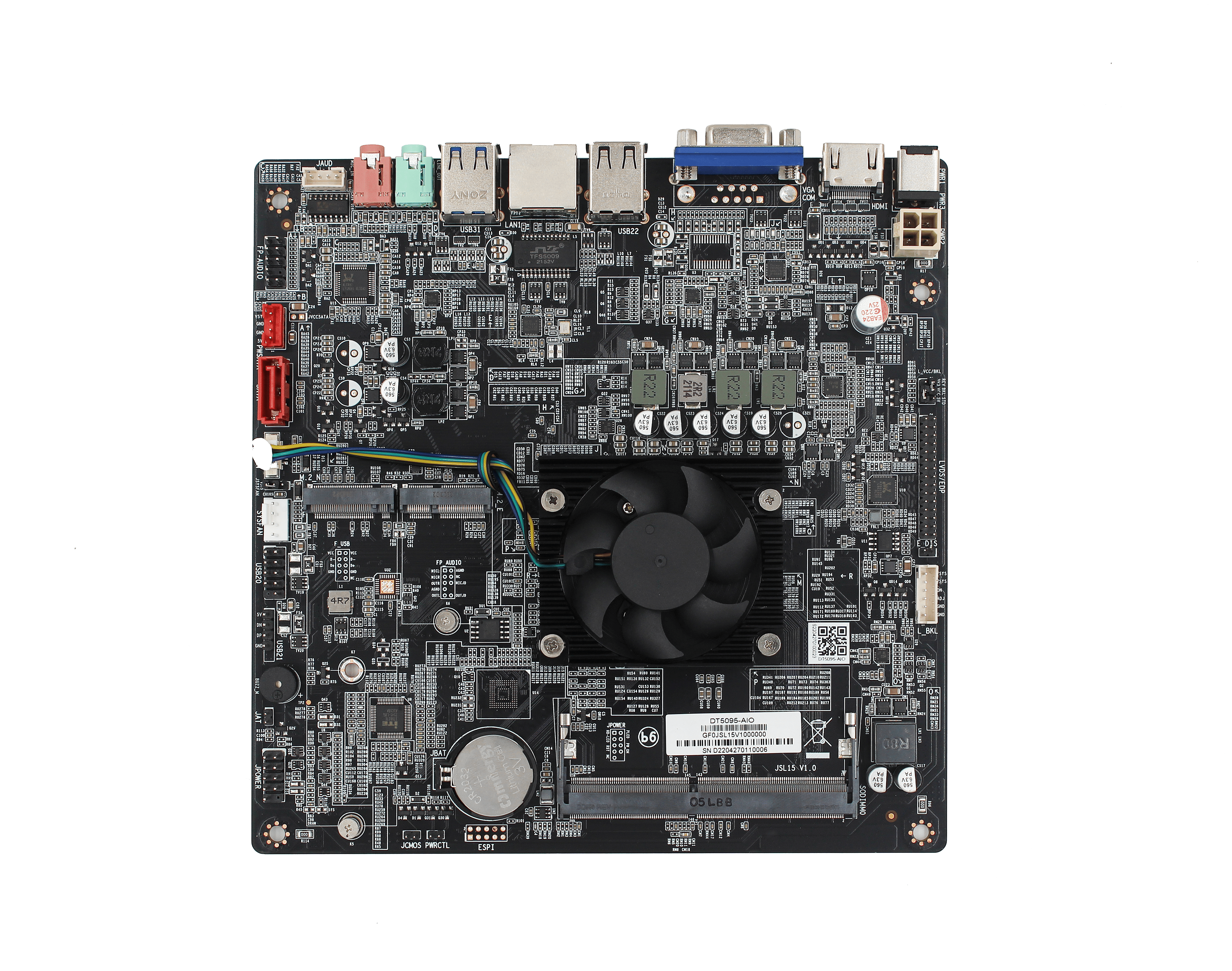

    Mini ATX Motherboard JSL-15 Product Describtion

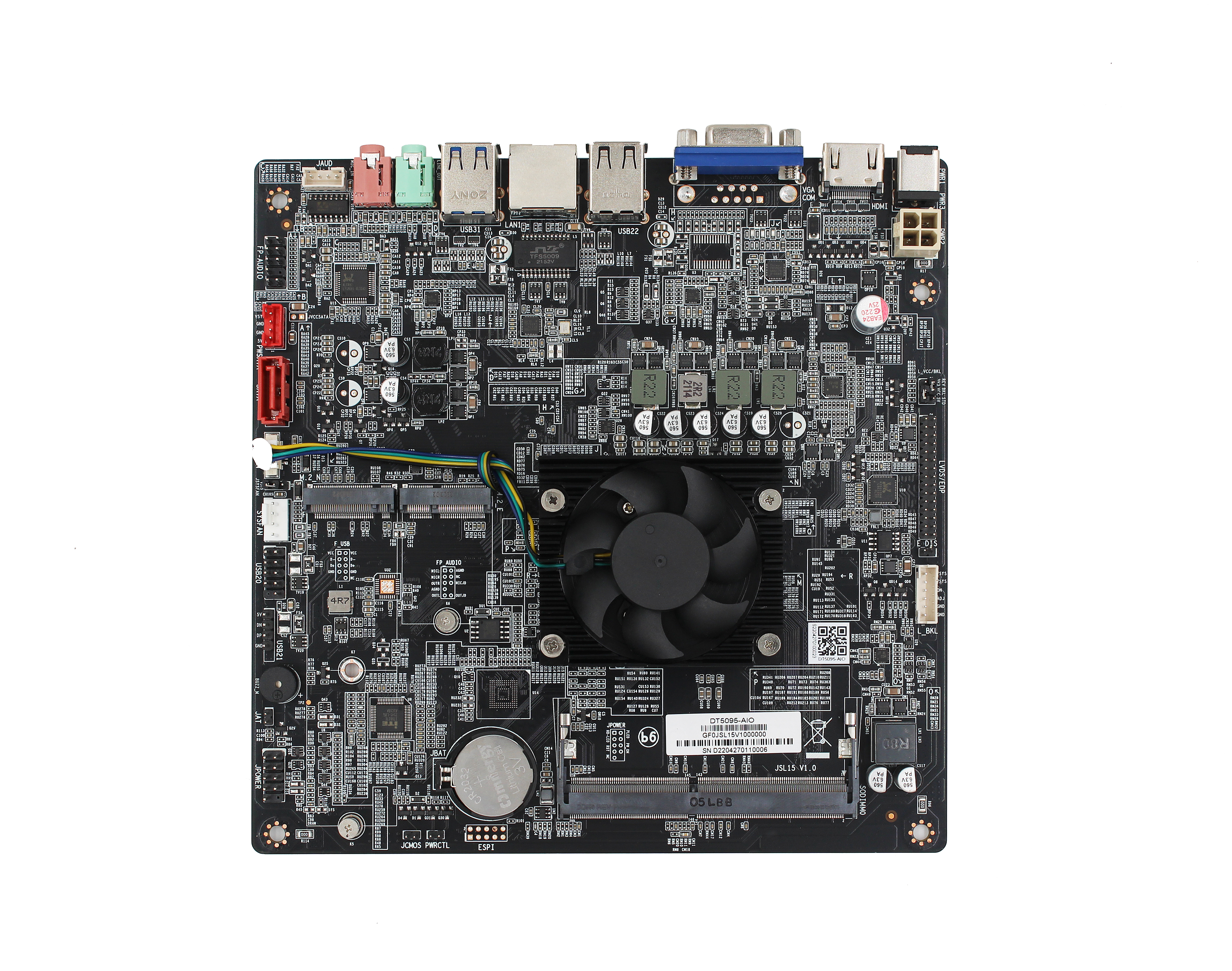

    JSL-15_V1 (6).png

    • CPU: Intel® Jasper Lake processors

    • Memory:  Single Channel SO-DIMM DDR4 up to 16GB

    • Display: Intel® UHD Graphics display via  HDMI®, VGA and LVDS

    • Ethernet: 10/100/1000 Mbps

    • Storage: M.2 for SSD, SATA, eMMC optional

    • Expansion: M.2 for WiFi, TPM2.0 for Security optional

    • Power: 12V/19V DC-in





Intel® Jasper Lake Processor based

Intel® Jasper Lake Processor
The Intel®Jasper Lake Series processors are designed for IoT applications, offering exceptional performance per watt. With long-term availability, expanded I/O capacity, and enhanced capabilities for graphics, audio, and computing, they provide the necessary power to handle growing data and application demands. These processors deliver the flexibility and headroom needed to efficiently consolidate tasks while supporting future technological advancements.

Mini ATX Motherboard JSL-15 Wide Range Of Application

Wide Range Of Applications
The JSL-15 Mini-ITX motherboard is ideal for a variety of applications, including digital signage, embedded systems, industrial automation, transportation, and communication networks. Its low power consumption, reliable performance, and versatile connectivity options make it the perfect solution for industries requiring efficient, long-lasting operation in compact form factors.

Comprehensive I/O Ports

Comprehensive I/O Ports
A rich interface includes 1LAN, 4USB3.2, 3USB2.0*headers, HDMI®2.0, VGA and LVDS/eDP for most market's requirement. Supports TPM2.0 for added Security.

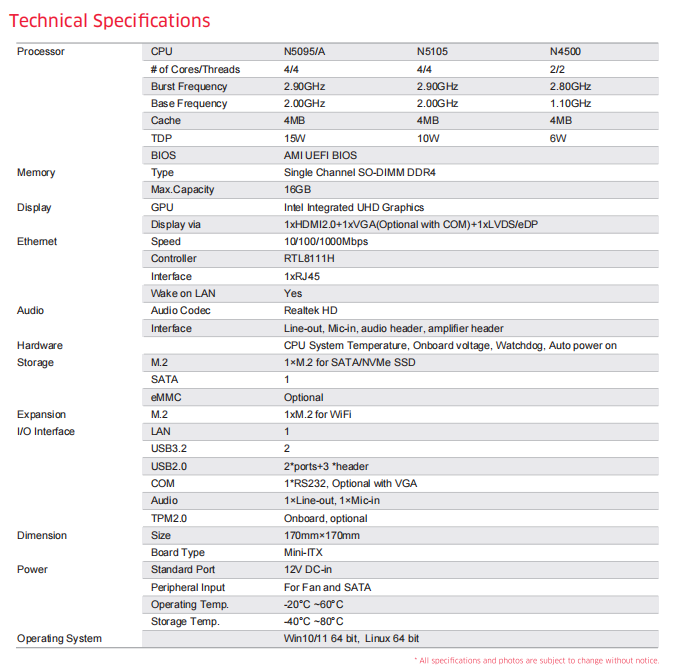

Technical Parameters

Mini ATX Motherboard JSL-15 Specifications



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
User Manual_JSL-15 Drivers Audio_Realtek_ALC897 Drivers LAN_Realtek_1.0GbE Drivers Intel Jasper Lake Series Datasheet_JSL-15
