Mini ITX-SKD-70

SKD-70
Product Description

Mini-ITX Motherboard SKD-70 Product Describtion

The Maxtang SKD-70 Embedded Mini-ITX Motherboard, powered by Intel® Skylake-S/Kaby Lake-S processors, is designed to deliver high performance in industrial automation and embedded computing applications. Supporting dual-channel SO-DIMM DDR4 memory up to 32GB, it provides reliable computing power for demanding tasks. With Intel HD Graphics, the SKD-70 offers flexible display options via HDMI, DisplayPort (DP), and eDP, ideal for multi-monitor setups in control systems.

Features

    Mini-ITX Motherboard SKD-70 Features

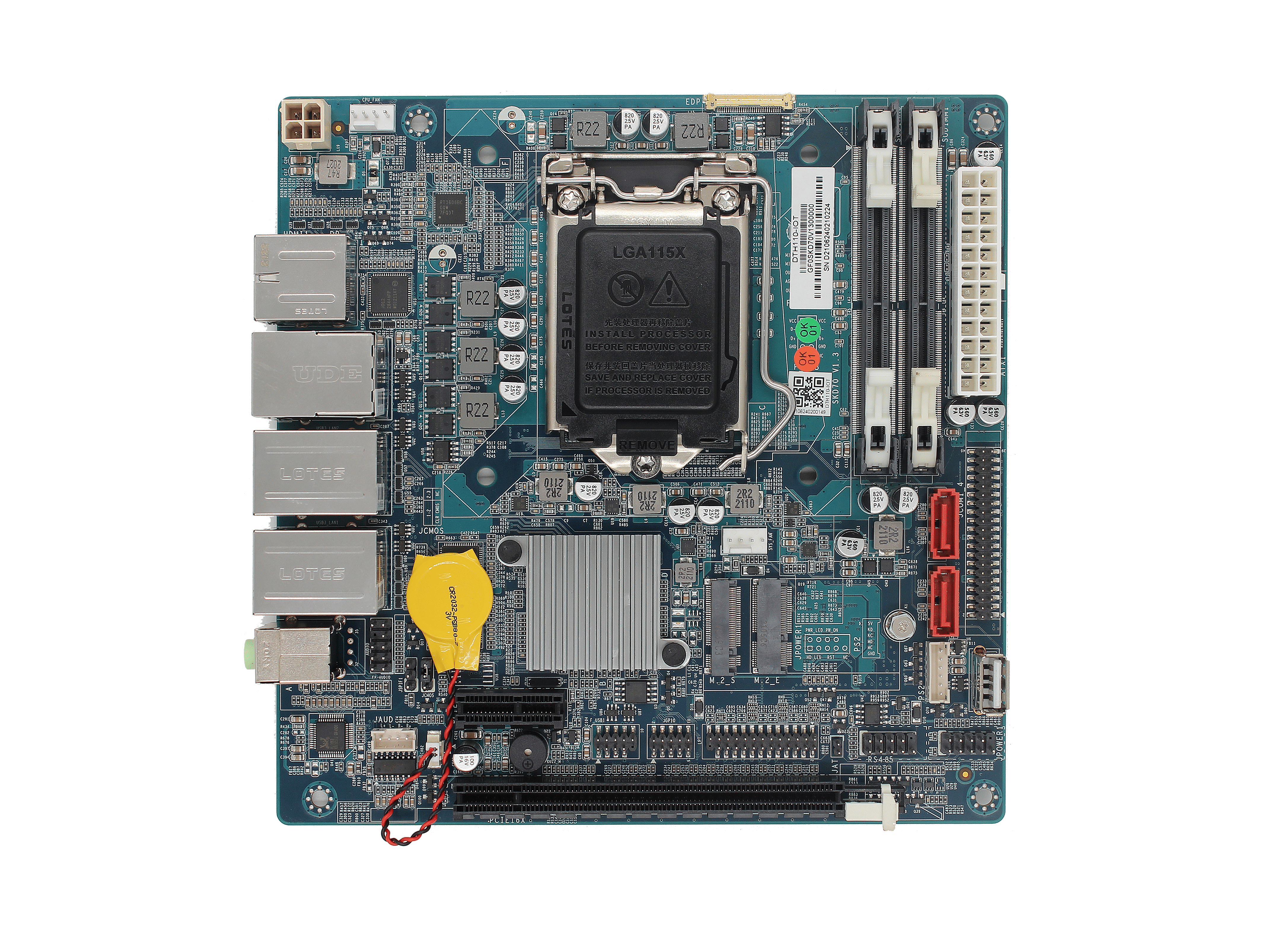

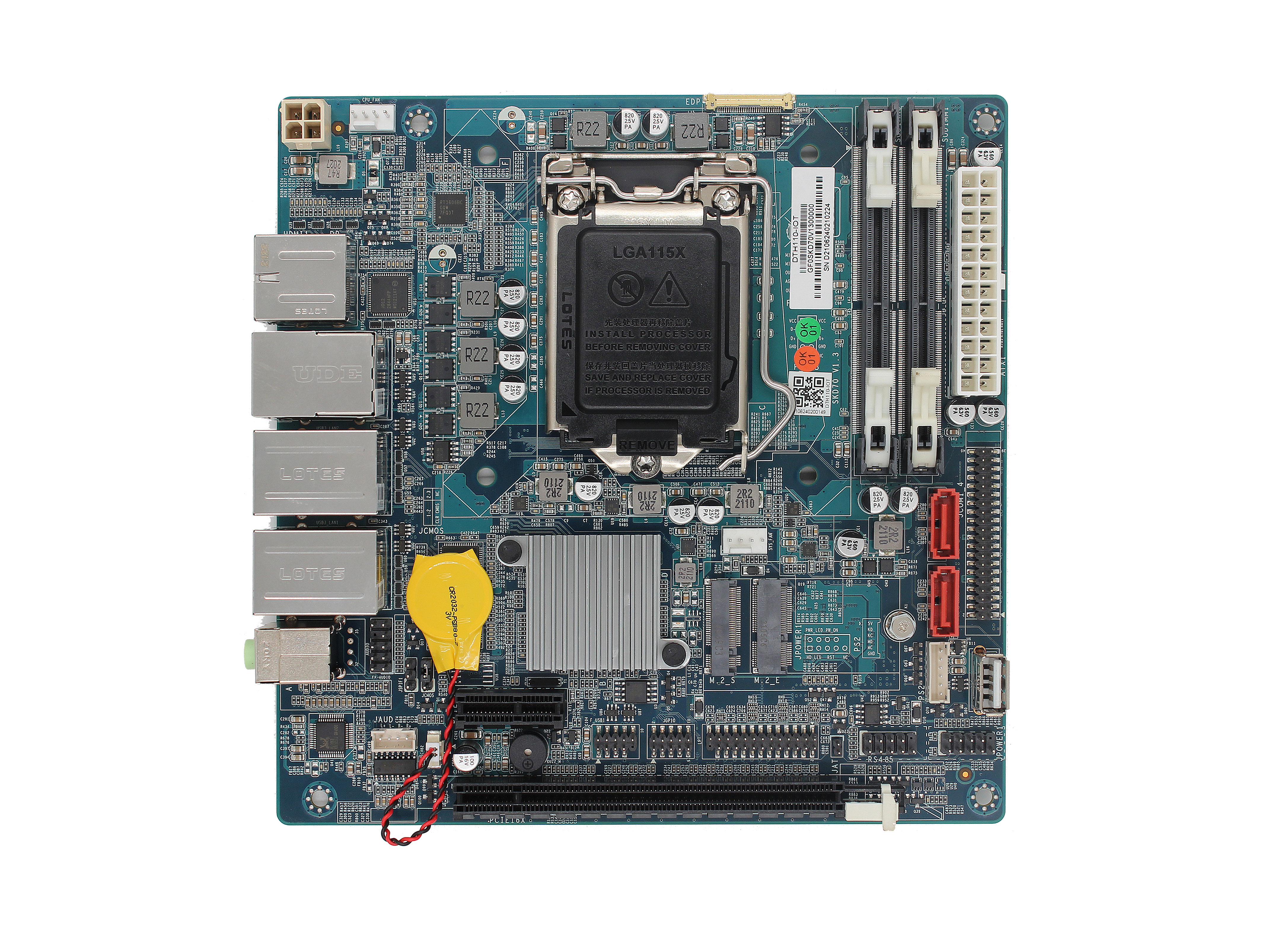

    SKD-70 Front Picture.png

    • CPU:Intel Skylake-S/Kaby Lake-S Processo

    • Memory: Dual channel SO-DIMM DDR4 Up to 32GB

    • Display: Intel HD Graphics, display via HDMI, DP, eDP optional

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA3.0, M.2 for SSD

    • Expansion: PCIe 16X, PCIe1X, M.2 for WiFi

    • Power: ATX input


Mini-ATX SKD-70: Multi-Display Support with HDMI®, DP, and eDP

Multiple Display
The SKD-70 Mini-ATX motherboard supports multiple display outputs, including 1x HDMI®, 1x DP, and optional 1x eDP, providing exceptional visual performance across various screen configurations. With Intel HD Graphics integrated, it allows for seamless display setups, perfect for industrial applications, digital signage, and multi-tasking environments. This flexibility ensures high-resolution, smooth visuals for enhanced productivity and immersive experiences, meeting the needs of diverse industries and advanced embedded systems.

Mini ITX Motherboard SKD-70 Wide Range Of Application

Wide Range Of Applications
This product offers exceptional performance across various industries, providing seamless solutions for medical, industrial, and transportation sectors. Whether it's enhancing diagnostic equipment in healthcare, optimizing machinery in manufacturing, or improving logistics in transportation, this product helps you achieve your goals efficiently and effectively, delivering reliable performance and superior results.
Transportation
Industrial
Medical

Intel® Rich I/O Interfaces

Rich I/O Interfaces
It contains 3x LAN, 5xCOM, 5x USB2.0,4x USB3.2, display via HDMI®, DP,eDP optional, catering most market requirements.
Technical Parameters

Mini-ITX Motherboard SKD-70 Specification



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_SKD-70 User Manual_SKD-70 Drivers_Audio_Realtek_ALC662 Drivers_LAN_Intel_1.0GbE
