Mini ITX-FP-10

FP-10
Product Description

Mini-ITX FP-10 Product Describtion

The FP-10 Mini-ITX motherboard is powered by AMD Ryzen™ V1605B or Ryzen™ 5 2500U quad-core processors, delivering powerful performance for embedded and industrial applications. It supports up to 32GB of dual-channel DDR4 memory and features AMD Radeon Vega graphics, allowing for up to four independent 4K displays via 4x DisplayPort outputs, making it ideal for applications requiring high-resolution visual output. With dual Gigabit Ethernet, PCIe expansion, and M.2 slots for Wi-Fi and storage, the FP-10 offers ample connectivity and expansion options for mini-servers, interactive digital signage, and thin clients.

Features

    Mini-ITX FP-10 Features

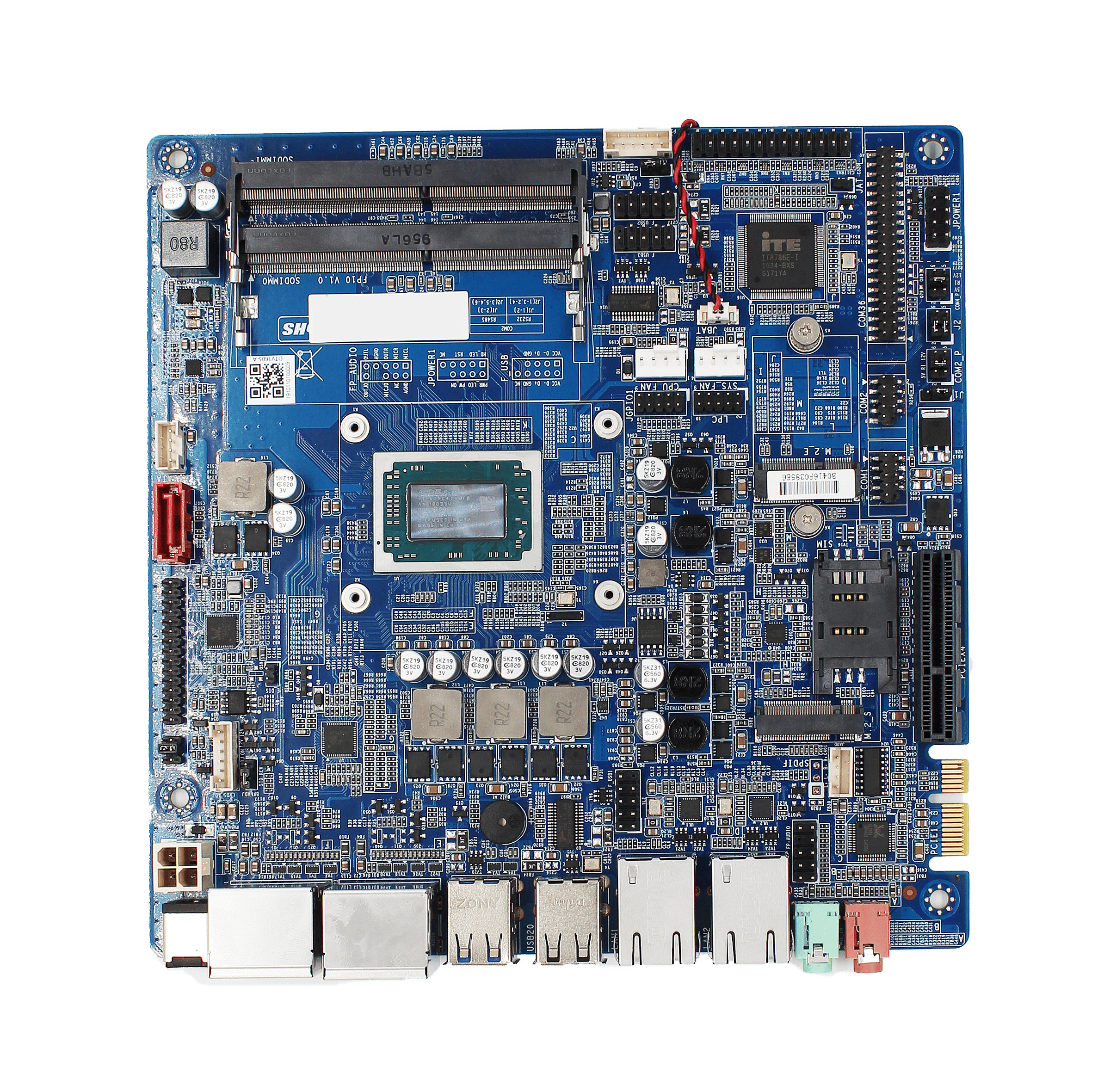

    MUC-5095 front picture.jpg

    • CPU: Ryzen™ 5 2500U and Ryzen™ Embedded V1605B

    • Memory: Dual channel SO-DIMM DDR4 up to 32 GB

    • Display: Up to 4 DP displays (LVDS/eDP optional)

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA3.0, M.2

    • Expansion: PCIe 4X, PCIe1X, M.2 for WiFi

    • Power: 12V DC-in


AMD Ryzen Processors

AMD Ryzen Processors
Coming from the embedded V1000 processor family and mobile processor family, these CPUs combine the incredible performance of the pioneering “Zen” architecture and “Vega” GPU in a single chip with thermal design power (TDP) as low as 12W/15W. It supports four independent 4K displays, in addition to dual-channel SO-DIMM DDR4 memory.

Mini-ITX FP-10 Wide Range Of Application

Wide Range Of Applications
The FP-10 Mini-ITX motherboard offers a low power consumption architecture, high performance, and a compact design, making it suitable for a wide variety of applications. Its versatility makes it ideal for industries such as digital signage, manufacturing, stock trading, and other embedded systems requiring reliable, high-performance computing. With support for up to four independent displays and robust connectivity, the FP-10 is a great solution for applications that demand efficiency, flexibility, and long-term reliability.
Up to 4 independent displays
Digital signage
Manufacturing
Stock trading

Comprehensive I/O Ports

Comprehensive I/O Ports
The FP-10 Mini-ITX motherboard is equipped with an extensive range of I/O interfaces to meet the needs of diverse applications. It includes 2x Gigabit Ethernet (LAN) ports, 6x USB 2.0, 2x USB 3.2 ports, and audio support with 1x Line-out and 1x Mic-in. The FP-10 also provides 4x DisplayPort (DP) outputs for up to four independent displays, as well as 1x LVDS/eDP for flexible display options. Additionally, the motherboard features 6x RS232 COM ports (with COM2 configurable as RS485), 1x PCIe 4X, and 1x M.2 for SSD and Wi-Fi expansion, ensuring versatility and compatibility with a wide range of embedded, industrial, and commercial applications.
Technical Parameters

FP10 TS.png

*All specifications and photos are subject to change without notice.

Downloads
Datasheet_FP-10 User Manual_FP-10 Drivers Audio_Realtek_ALC897 Drivers Audio_Realtek_ALC662 Drivers LAN_Realtek_1.0GbE Drivers AMD_V1605B
