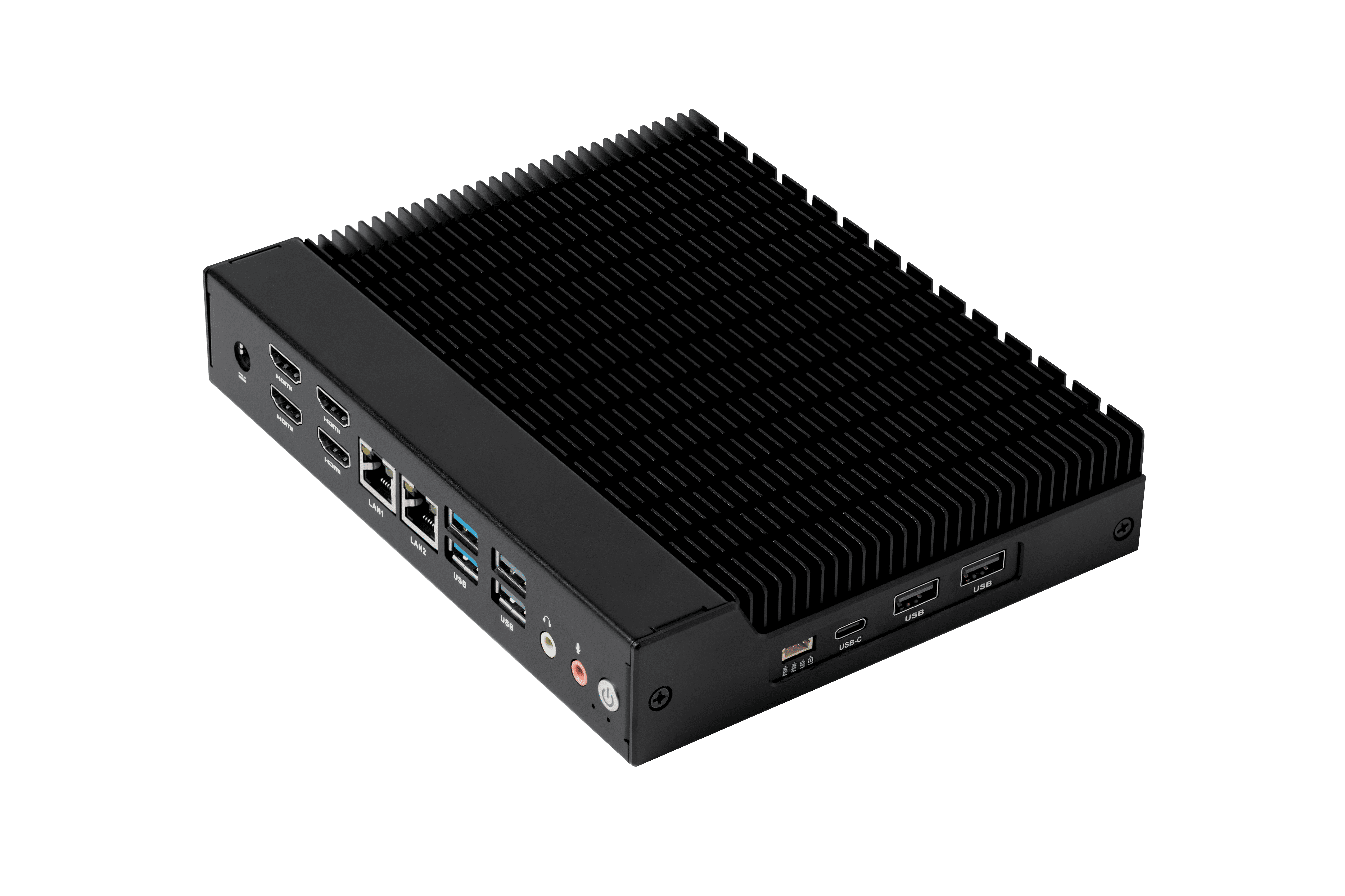

The MAXTANG SXC-FP530 is a compact fanless embedded PC powered by the AMD Ryzen™ Embedded R2314 processor with integrated Radeon™ Graphics. It supports up to four HDMI 2.0b outputs—offering 4K @ 60Hz on one to three displays or 1080p on four screens—with 2×2 video wall capability. Ideal for video walls, synchronized multi-display setups, and command center visualization, it combines strong performance with space-saving design.
Equipped with rich I/O options—including dual Gigabit LAN, dual COM ports (RS232/485), multiple USB ports (3.2, 2.0, USB-C), audio in/out, and M.2 expansion slots—the SXC-FP530 ensures seamless connection to automation systems, industrial controllers, and networking infrastructure. With fanless passive cooling, wide operating temperatures (−20 °C to 60 °C), optional TPM security, and RTC scheduling, it's built for heavily industrial, transportation, and edge computing deployments that demand durability and uptime.

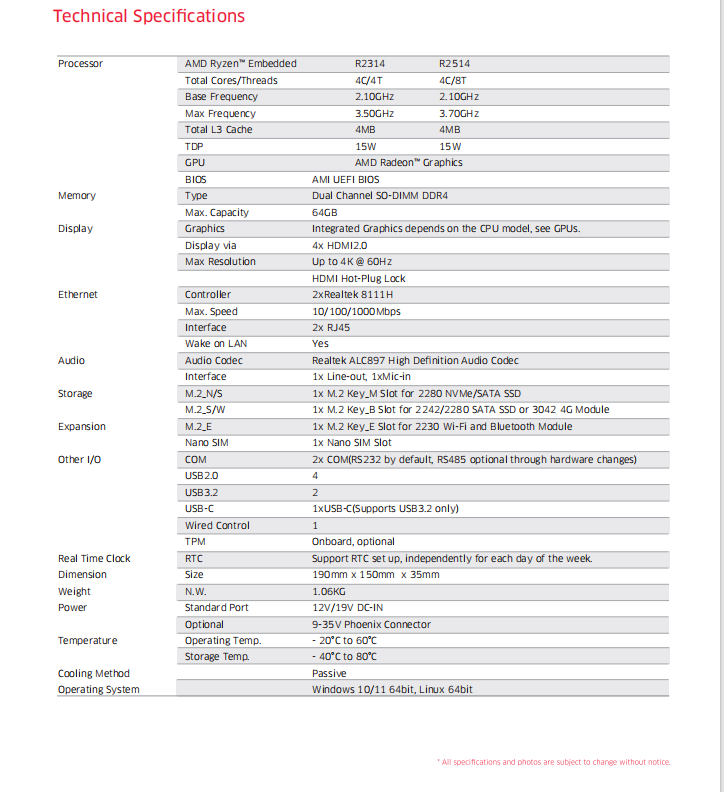

CPU: AMD Ryzen™ Embedded R2314 Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
GPU: AMD Radeon™ Graphics, support four displays up to 4K@60Hz
Ethernet: 2xRealtek RTL8111H(10/100/1000/Mbps)
Storage: M.2 Key M for NVMe/SATA, M.2 Key B for SATA SSD/4G
I/O Ports: 2xLAN, 2xCOM, 2xUSB3.2, 4xUSB2.0, 4xHDMI2.0, USB-C
Expansion: M.2 Key E for Wi-Fi and Bluetooth, Nano SIM
Power: 12V/19V DC-IN or 9-35V Phoenix optional
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
SXC-FP530_Datasheet
