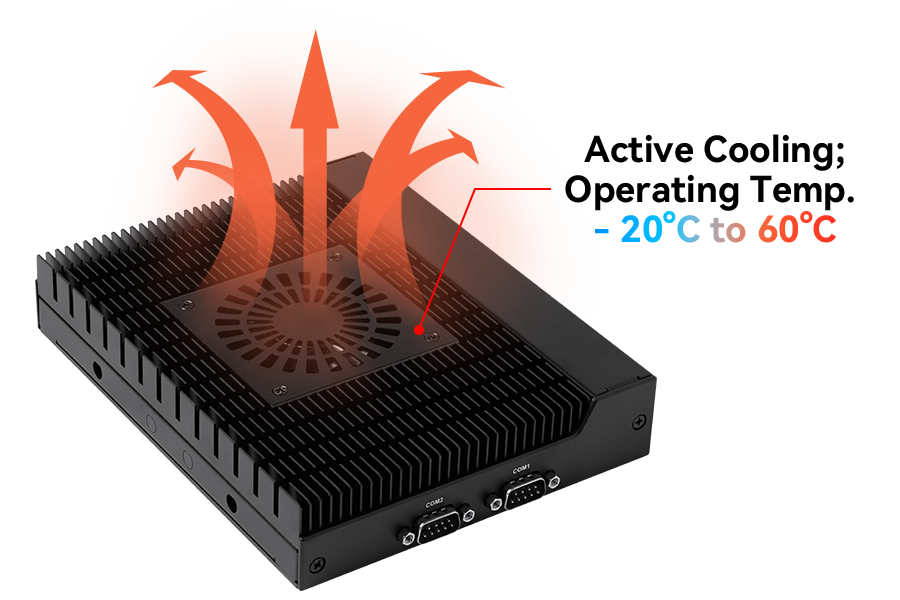

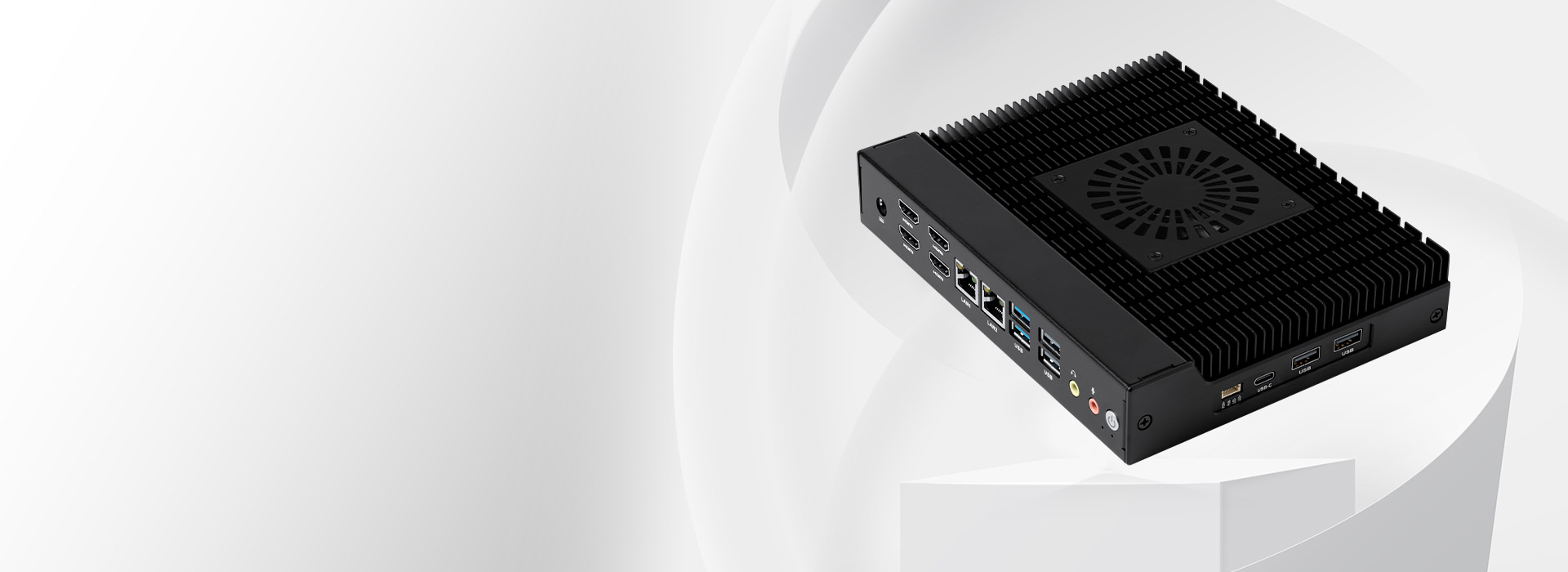

The Maxtang SXC-FP530-F is a compact embedded PC powered by the AMD Ryzen™ Embedded R2314 processor, offering excellent performance for industrial applications. Supporting up to four displays via HDMI 2.0, it's ideal for multi-display environments like digital signage and industrial automation. With dual Gigabit LAN, USB 3.2, and M.2 expansion, it provides flexible connectivity for IoT solutions and edge computing. Its active cooling and wide operating temperature range of -20°C to 60°C ensure reliable operation in demanding conditions.

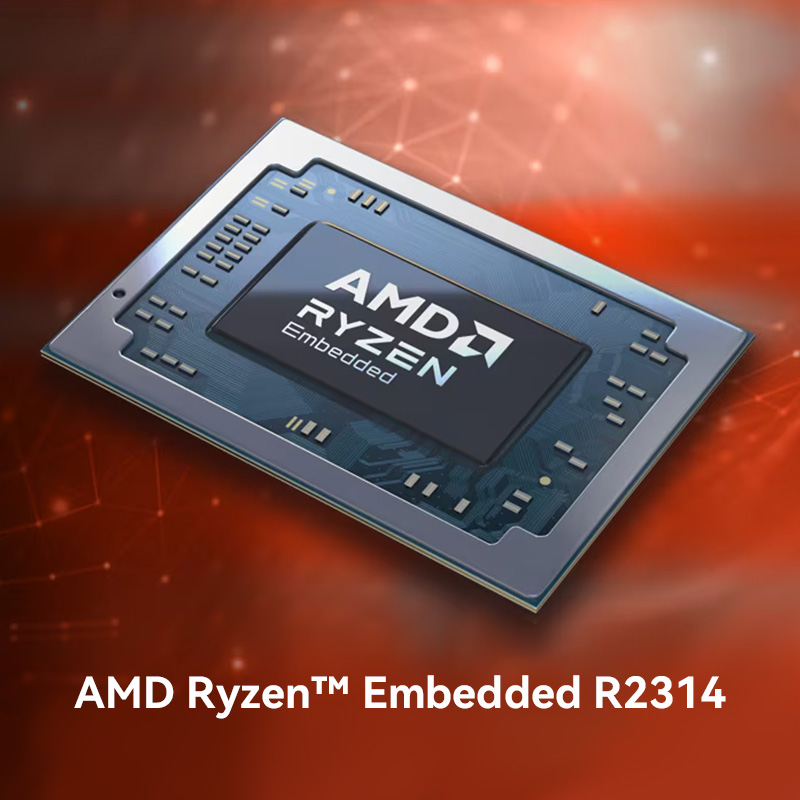

CPU: AMD Ryzen™ Embedded R2314 Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
GPU: AMD Radeon™ Graphics, support four displays up to 4K@60Hz
Ethernet: 2xRealtek RTL8111H(10/100/1000/Mbps)
Storage: M.2 Key M for NVMe/SATA, M.2 Key B for SATA SSD/4G

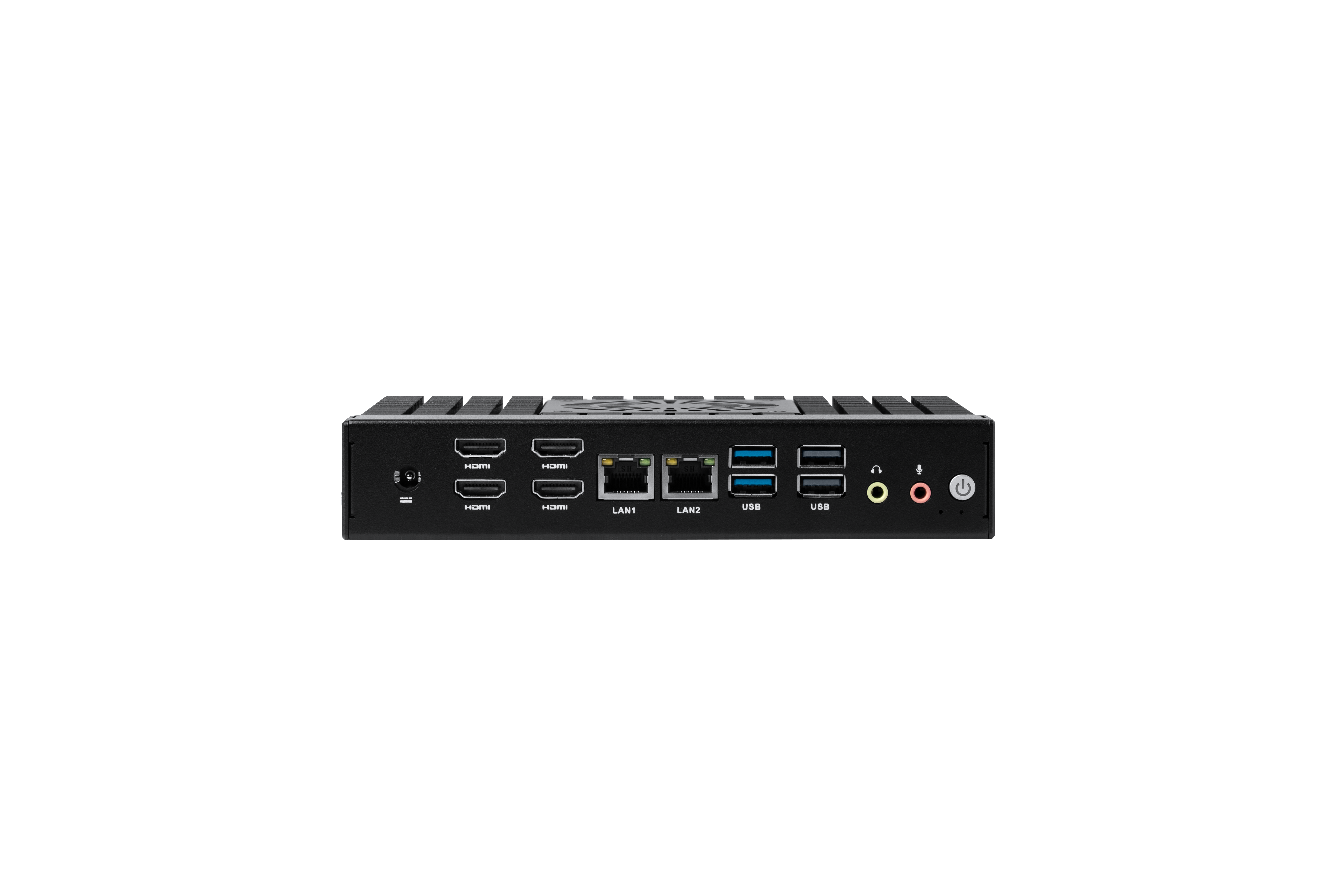

I/O Ports: 2xLAN, 2xCOM, 2xUSB3.2, 4xUSB2.0, 4xHDMI2.0, USB-C
Expansion: M.2 Key E for Wi-Fi and Bluetooth, Nano SIM
Power: 12V/19V DC-IN
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

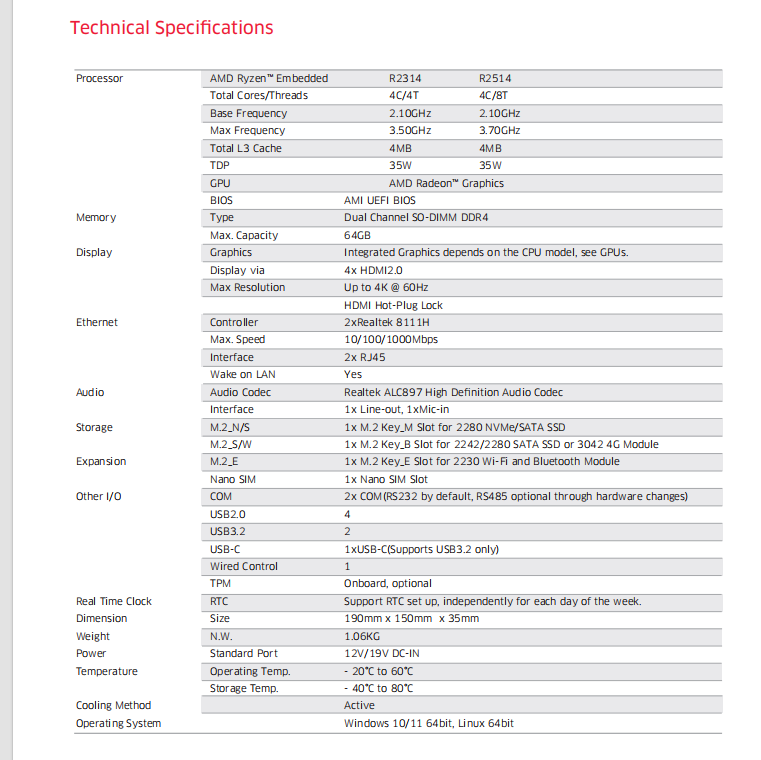

SXC-FP530-F_Datasheet
