SXA-6412
Product Description

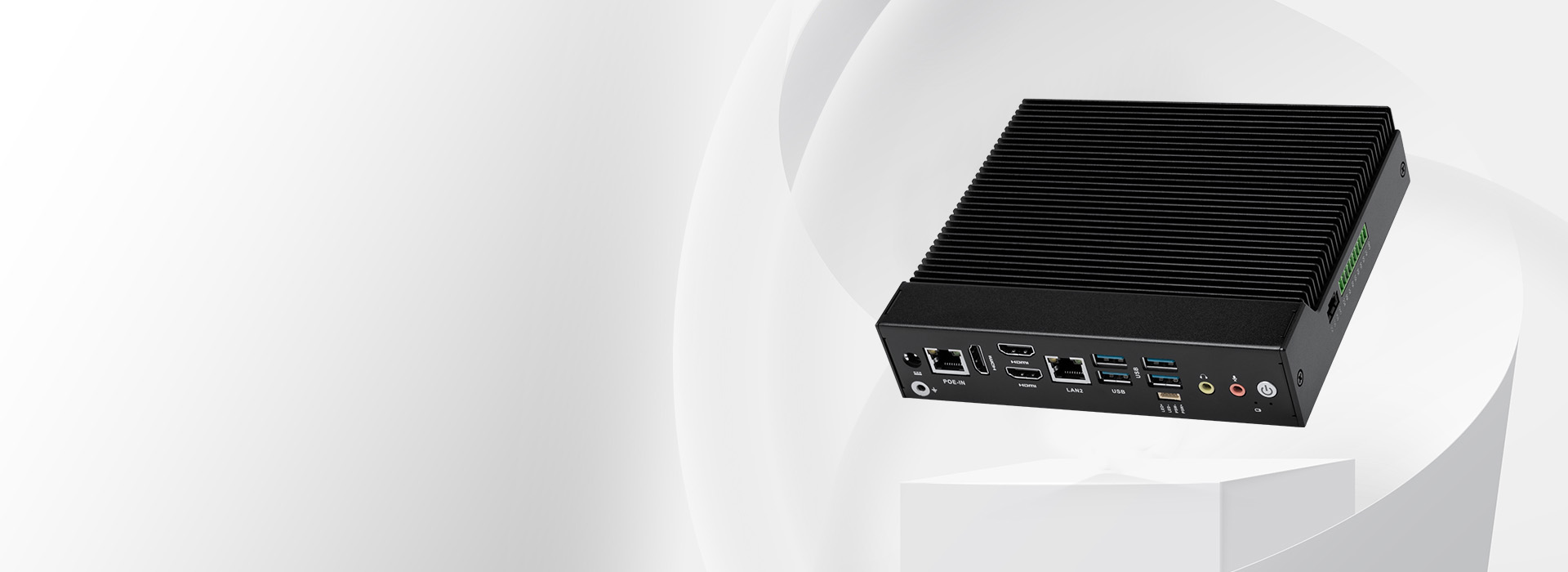

Compact embedded pc SXA-6412 Product Description

The Maxtang SXA-6412 is a compact embedded PC powered by the Intel® Elkhart Lake J6412 processor, offering reliable performance for industrial applications. With Intel UHD Graphics and support for three HDMI 2.0 displays, it's perfect for multi-display setups in environments like digital signage, control rooms, and industrial automation. The SXA-6412 features dual Gigabit Ethernet ports, USB 3.2, and I/O expansion options including COM ports and GPIO, making it ideal for IoT solutions and edge computing.

Features

    Compact embedded pc SXA-6412 Features

    Compact embedded pc SXC-ARL30 front picture.jpg

    • CPU: Intel® Elkhart Lake J6412 Processor

    • Memory: Dual Channel SO-DIMM DDR4 up to 64GB

    • Display: Integrated Intel® UHD Graphics

    • Ethernet: 10/100/1000Mbps

    • Storage: 1xM.2 Slot for NVMe/SATA, 1xM.2 Slot for SATA

    • Expansion: 1xM.2 Slot for WiFi and Bluetooth

    • I/O Ports: 2xLAN, 4xUSB3.2, 3xHDMI, COM, GPIO, I2C,

    • Wired Control Power: PoE input or 19V DC-IN

Intel® Elkhart Lake J6412 processor

Intel® Elkhart Lake J6412 processor
Powered by the Intel® Celeron® J6412, a quad-core processor built on Intel's 10nm architecture, the SXA-6412 delivers efficient, low-power performance with a 2.0 GHz base frequency and up to 2.6 GHz burst speed. With 1.5MB L2 cache and a 10W TDP, it ensures responsive multitasking and stable operation. Designed for embedded and industrial deployments, it supports dual-channel DDR4 memory up to 64GB and integrated Intel® UHD Graphics with triple HDMI 2.0 outputs for seamless multi-display setups.

Multi-Displays+PoE for Industrial and Commercial Applications

Multi-Displays+PoE for Industrial and Commercial Applications
The SXA-6412 is a compact yet powerful fanless embedded PC powered by the Intel® Elkhart Lake J6412 processor. With triple HDMI 2.0 outputs, it enables seamless multi-display setups for digital signage, smart retail, and control rooms. Rich connectivity options with PoE support make it ideal for industrial automation, healthcare systems, smart education, and intelligent transportation. Its rugged fanless design ensures silent, reliable 24/7 operation in demanding environments.
Smart Retail
Digital Signage
Smart Education
Healthcare
Smart Transportation

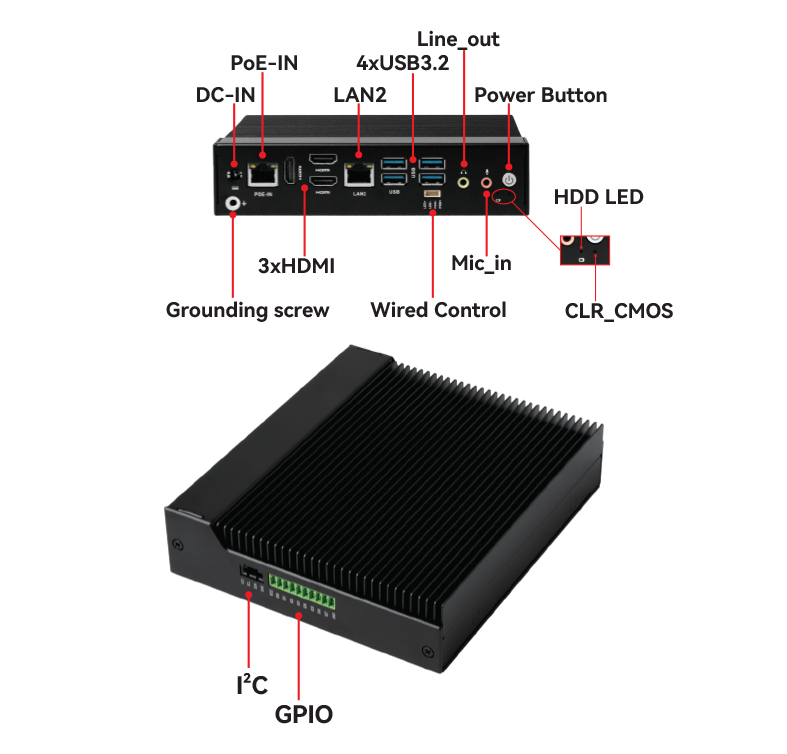

Extensive I/O Connectivity

Extensive I/O Connectivity
Designed for seamless integration, the SXA-6412 offers dual LAN (with PoE), 4 × USB 3.2, 1 × COM port (RS232/RS485), 8 GPIO pins, and 1 × I²C interface for versatile peripheral connections. Its wired control capability improves system flexibility, making it well-suited for industrial automation, IoT devices, and embedded control applications.
Technical Parameters

Compact Embedded Pc SXC-ARL30 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • Can memory and storage be upgraded?
    Yes, both the memory and storage are upgradeable according to user requirements; detailed information on the maximum supported capacity can be found in the datasheet.
  • What operating systems are supported?
    The system supports Windows 10 / Windows 11 (64-bit) and Linux (64-bit).
  • Does it support PoE power input?
    Yes. The SXA-6412 supports Power over Ethernet (PoE) input, allowing power and data transmission through a single Ethernet cable, which simplifies installation and reduces wiring complexity.
  • What application scenarios is SXA-6412 suitable for?
    The SXA-6412 is suitable for applications such as digital signage, security systems, industrial automation, and edge computing, especially in environments requiring PoE power and multiple displays.
Downloads
Datasheet_SXA-6412
