Compact Embedded Pc-SXC-RL30

SXC-RL30
Product Description

Compact embedded PC SXC-FP530-F Product Description

The SXC-RL30 is a compact embedded PC built on Intel® Alder Lake-U and Raptor Lake-U processors. Featuring a fanless design and Intel® UHD / Iris® Xe graphics, it delivers reliable computing and multi-display performance in a small, rugged form factor. With dual 2.5GbE LAN, multiple USB and COM ports, and support for up to four HDMI 2.0 displays, the SXC-RL30 is well suited for industrial control, digital signage, and edge computing applications.

Features

    compact embedded pc SXC-RL50 Features

    compact embedded pc SXC-FP530 front picture.jpg

    • CPU: Intel® Alder Lake/Raptor Lake-U Processor

    • Memory: Dual Channel SO-DIMM DDR5 up to 64GB

    • GPU: Integrated Intel® UHD/Iris® Xe Graphics

    • Ethernet: 2xIntel i226(10/100/2500Mbps)

    • Storage: M.2 Key M for NVMe SSD, M.2 Key B for SATA SSD/4G

    • I/O Ports: 2xLAN, 2xCOM, 2xUSB3.2, 4xUSB2.0, 4xHDMI2.0, USB-C

    • Expansion: M.2 Key E for Wi-Fi and Bluetooth, Nano SIM

    • Power: 12V/19V DC-IN or 9-35V Phoenix optional

    • Support HDMI Hot-Plug Lock, RTC/W


High-Performance Processing

High-Performance Processing
Powered by Intel® Alder Lake-U and Raptor Lake-U processors, the SXC-RL30 delivers next-generation hybrid computing with performance cores and efficient cores working together to maximize speed and energy efficiency. With up to 10 cores, high turbo frequencies up to 5.0 GHz, and integrated Intel® UHD / Iris® Xe graphics, it provides fast, stable performance and smooth 4K multi-display output for industrial automation, immersive multi-display deployments, and edge computing applications.

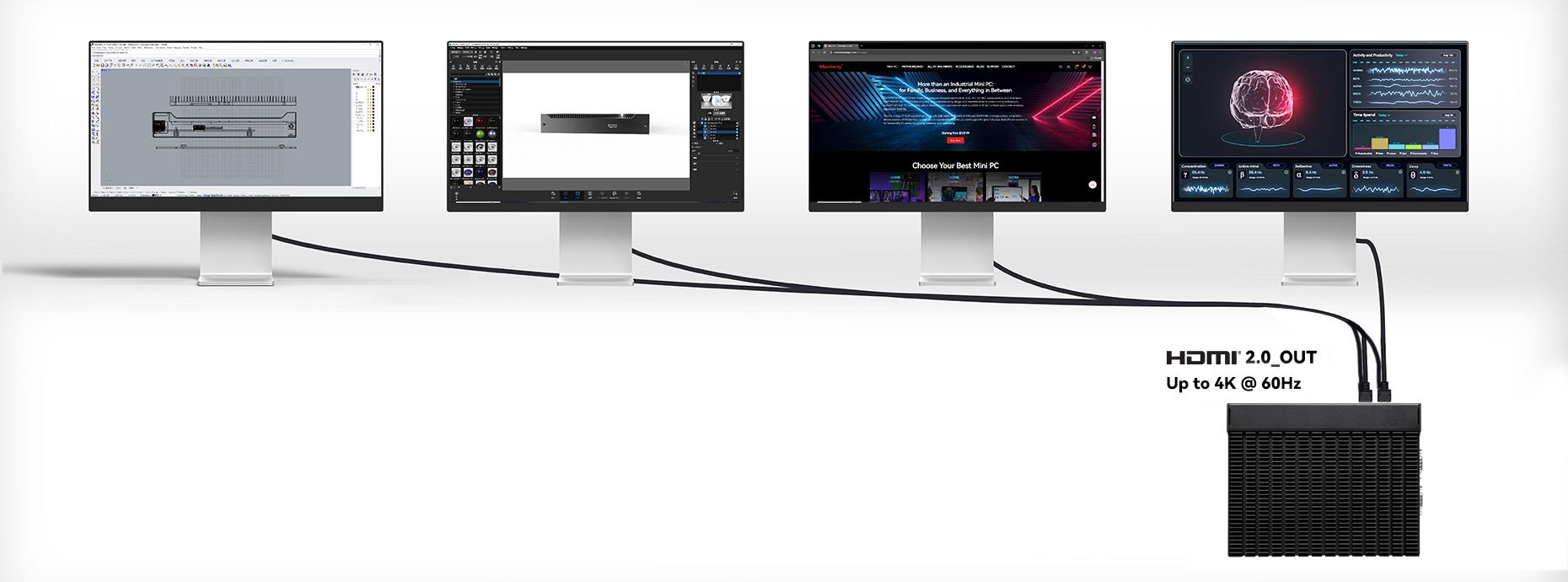

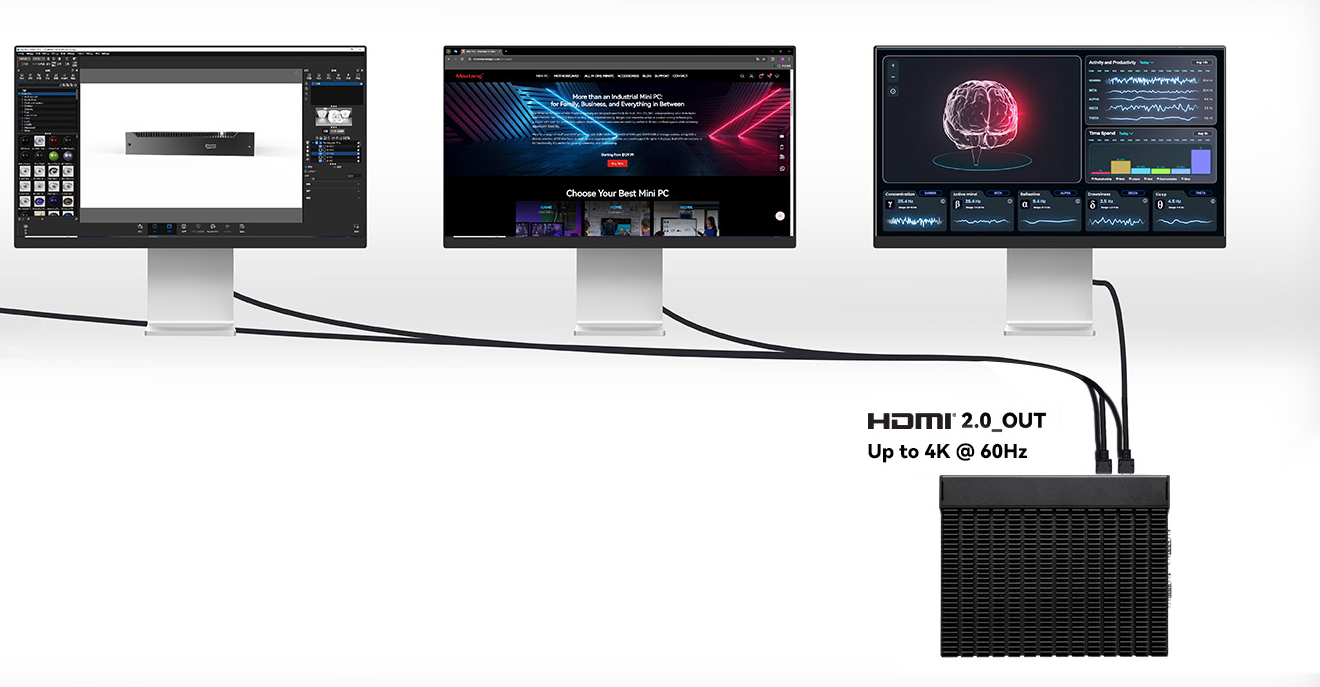

Multi-Display Output

Multi-Display Output
The SXC-RL30 leverages Intel® Alder Lake-U and Raptor Lake-U hybrid processors with integrated Intel® UHD / Iris® Xe
graphics to drive up to four independent HDMI 2.0 displays at 4K @ 60Hz. Its advanced hybrid architecture ensures
smooth video playback, stable multi-screen synchronization, and reliable long-term operation, making it ideal for
digital signage, control rooms, and other multi-display industrial applications.

Rich I/O

Rich I/O
The SXC-RL30 provides a rich set of I/O interfaces, including dual 2.5GbE LAN, two COM ports, multiple USB 3.2 and USB 2.0 ports, USB-C, and audio in/out. This broad connectivity allows the system to support a wide range of industrial peripherals, displays, storage devices, and communication modules, making it easy to integrate into complex embedded and multi-device environments.
Technical Parameters

compact embedded pc SXC-RL50 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads
SXC-RL30_Datasheet
