Industrial Pc-IXBYT-35V2.1

IXBYT-35V2.1
Product Description

Industrial Fanless PC IXBYT-35 V2.1 Product description

The Maxtang IXBYT-35 V2.1 Industrial Fanless PC, powered by Intel® Bay Trail processors, offers a compact and energy-efficient solution for industrial automation. Equipped with up to 8GB of DDR3L memory and Intel Integrated Graphics, it provides reliable performance for a wide range of industrial applications. The fanless design ensures silent operation and protection against dust and moisture, making it suitable for harsh industrial environments. With dual display support via HDMI and VGA, the IXBYT-35 V2.1 is ideal for multi-monitor setups. Its low TDP of 10W ensures energy efficiency.

Features

    Industrial Fanless PC IXBYT-35 V2.1 Features


    • Intel® Bay Trail Processor

    • Supports Single Channel SO-DIMM DDR3L up to 8GB

    • Full HD 1080P Playback, Display via VGA, HDMI®

    • Rich I/O ports: 1 x USB3.2, 7 x USB2.0, 2 x LAN, 6xCOM

    • mSATA, SATA2.0 for Storage, mini-PCIe for WiFi/4G

    • Fanless Design with Aluminum Enclosure

    • Power:12V DC-in, Low Power Consumption












Intel® Bay Trail Processors

Intel® Bay Trail Processors
Built on the Bay Trail platform, these processors deliver exceptional energy efficiency. Manufactured using an optimized 22nm low-power tri-gate transistor process, they achieve significant improvements in both performance and power consumption compared to the previous generation. Based on the new Silvermont architecture, the cores feature enhanced pipeline utilization along with multiple advancements such as optimized branch prediction, larger buffers, and improved decoders—resulting in up to 50% higher performance per clock.


Fanless, Ventless, Dust-Resistant

Fanless, Ventless, Dust-Resistant

The IXBYT-35 is a fanless industrial PC designed
to deliver powerful performance with outstanding
efficiency and reliability. Built with a fully aluminum
enclosure and a ventless design, it effectively protects
internal components from dust and debris, ensuring
stable operation even in harsh industrial environments.

Comprehensive I/O Interface

Comprehensive I/O Interface
The VBYT-30V2.1 offers a versatile set of I/O ports to meet diverse application needs. With 3×LAN, 2×COM, 1×USB3.2, 5×USB2.0, HDMI, and VGA, it ensures seamless connectivity for networks, peripherals, and dual displays. Expansion options include a mini-PCIe slot for Wi-Fi and a SIM card slot for mobile modules, making it a flexible choice for industrial, commercial, and embedded solutions.

Fanless Design

Fanless Design
Easy to set up for use, compact and portable, provides high performance with low power consumption, great for space-saving.

Multiple Display

Multiple Display
Supports VGA, HDMI, and onboard LVDS via integrated Intel® HD Graphics for versatile digital display solutions.

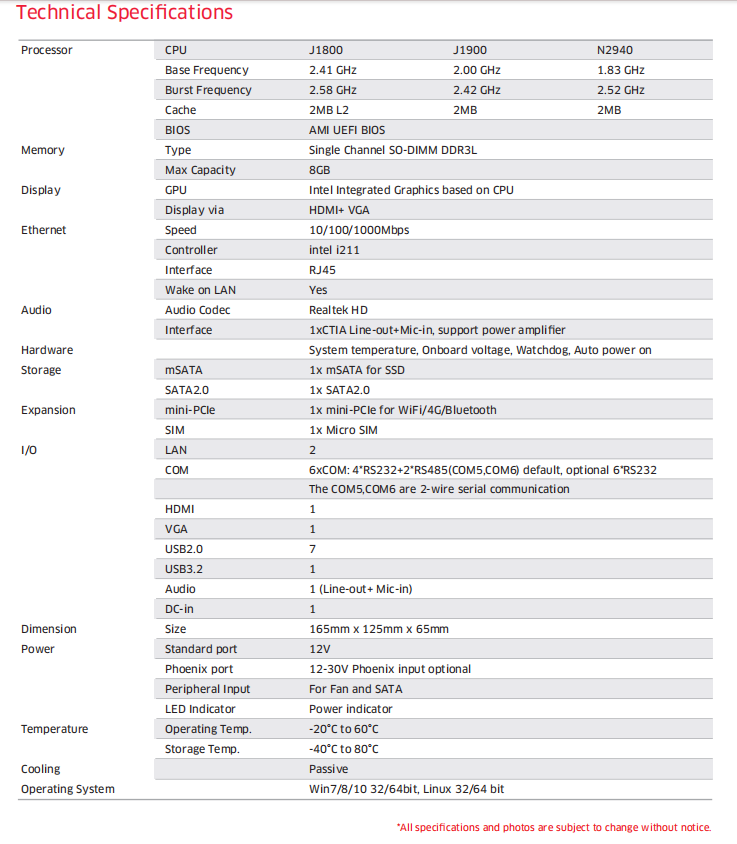

Technical Parameters

Specification



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Drivers Audio_Realtek_ALC662 Drivers Audio_Realtek_ALC897 Drivers LAN_Intel_1.0GbE Drivers Intel Bay Trail Series IXBYT-35V2-Datasheet
