Product Description

What Is the IXH-WCL35 Intel® Wildcat Lake Industrial PC Designed For?

The Maxtang IXH-WCL35 is an AI-capable, fanless industrial PC engineered for smart manufacturing, HMI, transportation, energy management, and intelligent embedded applications. Powered by the Intel® Core™ 3 Processor 304 with 5 cores, 5 threads, and an integrated NPU delivering up to 15 TOPS, it supports up to 64GB of DDR5 memory, dual HDMI 2.0 outputs, dual Intel® i210 Gigabit Ethernet, six COM ports, eight USB interfaces, and 8-bit GPIO. Flexible NVMe, SATA, 4G, Wi-Fi, and Bluetooth expansion supports different project configurations, while wide-range 9V–36V DC input, -20°C to 60°C operation, passive cooling, hardware monitoring, watchdog, automatic power-on, and Wake-on-LAN make it a compact, integration-ready platform for connected industrial deployments.
Features

    What Hardware, Connectivity, and Expansion Does the IXH-WCL35 Provide?

    IXH-WCL35
    • CPU: Intel® Wildcat Lake Series Processor

    • Memory: Single Channel SO-DIMM DDR5 up to 64GB

    • Display: Integrated Intel Graphics display via 2 x HDMI

    • Ethernet: 10/100/1000Mbps

    • Storage &Expansion: M.2 Key M Slot for NVMe SSD, M.2 Key B Slot for SATA SSD or 4G, M.2 Key E Slot for Wi-Fi&BT, SATA FPC Interface

    • Power: 9V-36V 2-Pin DC-IN Phoenix Connector/DC-IN Jack Optional

How Does the Intel® Core™ 3 Processor 304 Power Industrial AI Workloads?

Integrated NPU Performance for Edge AI
Powered by the Intel® Core™ 3 Processor 304, the IXH-WCL35 combines 5-core CPU processing, integrated Intel® Graphics, and an NPU delivering up to 15 TOPS for compatible AI workloads. The platform supports lightweight visual inference, local event detection, equipment-condition monitoring, edge data filtering, and other AI-assisted embedded applications. Selected workloads can run locally at the edge, helping reduce dependence on cloud-based processing while supporting faster integration into intelligent industrial systems.

Where Can the IXH-WCL35 Fanless Industrial PC Be Deployed?

Built for Demanding Industrial Applications
The IXH-WCL35 is designed for smart manufacturing, industrial automation, HMI, transportation, energy management, and edge AI applications. In factory environments, it can support production-line monitoring, machine-status monitoring, industrial data acquisition, and equipment communication. For HMI projects, it is suitable for operator terminals, touchscreen control stations, and equipment-status displays. Transportation applications include passenger information systems, ticketing equipment, station terminals, and monitoring systems. It can also support energy-monitoring terminals, building-management systems, local event detection, equipment-condition monitoring, and edge data filtering.

What Industrial I/O and Expansion Options Does the IXH-WCL35 Offer?

Rich I/O for Flexible System Integration
The IXH-WCL35 combines six configurable COM ports, two USB 3.2 ports, six USB 2.0 ports, 8-bit GPIO, two Intel® i210 Gigabit Ethernet ports, two HDMI 2.0 outputs, a wired-control interface, and a CTIA 2-in-1 audio jack. The standard serial configuration includes four RS-232 and two RS-485 ports, with an optional six-port RS-232 configuration. This extensive I/O supports legacy and modern equipment, multiple serial devices, sensors, controllers, displays, and commercial peripherals while reducing the need for external expansion. Dual physical network connections can connect separate equipment and enterprise networks, while NVMe, SATA, 4G, Wi-Fi, and Bluetooth options allow the system to adapt to different project requirements.
Technical Parameters

Specification

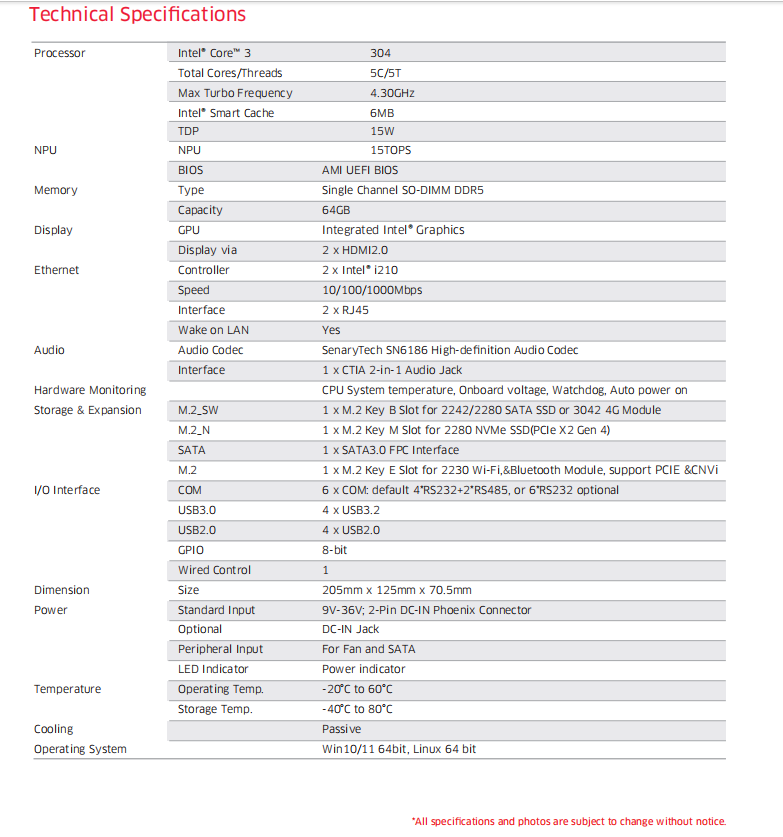

IXH-WCL35 Specifications.png

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

  • What processor does the IXH-WCL35 use?

    The IXH-WCL35 is powered by the Intel® Core™ 3 Processor 304 from the Wildcat Lake Series. It provides 5 cores, 5 threads, a maximum turbo frequency of 4.30GHz, 6MB Intel® Smart Cache, and a 15W TDP.
  • Does the IXH-WCL35 support AI acceleration?

    Yes. The Intel® Core™ 3 Processor 304 includes an integrated NPU delivering up to 15 TOPS for compatible edge AI workloads.
  • How much memory does the IXH-WCL35 support?

    The IXH-WCL35 supports up to 64GB of single-channel SO-DIMM DDR5 memory.
  • What display outputs does the IXH-WCL35 provide?

    The IXH-WCL35 provides two HDMI 2.0 outputs driven by integrated Intel® Graphics. Project-specific resolution and display requirements should be confirmed before deployment.
  • What industrial control interfaces are available?

    The IXH-WCL35 provides six COM ports, 8-bit GPIO, and one wired-control interface. The standard serial configuration includes four RS-232 and two RS-485 ports, while an optional six-RS-232 configuration is available.
  • How many USB and Ethernet ports does the IXH-WCL35 provide?

    The IXH-WCL35 provides two USB 3.2 ports, sixUSB 2.0 ports, and two RJ45 Gigabit Ethernet ports powered by Intel® i210 controllers. The Ethernet interfaces support 10/100/1000Mbps networking and Wake-on-LAN.
  • What storage options are available for the IXH-WCL35?

    The IXH-WCL35 includes one M.2 Key M 2280 slot for a PCIe Gen 4 x2 NVMe SSD, one M.2 Key B slot for a 2242 or 2280 SATA SSD, and one SATA 3.0 FPC interface.
  • Does the IXH-WCL35 support 4G, Wi-Fi, and Bluetooth?

    Yes. The M.2 Key B slot supports an optional 3042 4G module, while the M.2 Key E 2230 slot supports an optional Wi-Fi and Bluetooth module. The Key B slot is shared between SATA storage and 4G expansion, so these two options cannot use the slot simultaneously.
  • What power input does the IXH-WCL35 support?

    The IXH-WCL35 supports a wide 9V–36V DC input through a standard 2-pin Phoenix connector. A DC-in jack is available as an optional configuration.
  • Is the IXH-WCL35 fanless, and what is its operating temperature range?

    Yes. The IXH-WCL35 uses passive cooling for fanless operation. It supports an operating temperature range of -20°C to 60°C and a storage temperature range of -40°C to 80°C.
  • What system monitoring and management features are included?

    The IXH-WCL35 supports system temperature monitoring, onboard voltage monitoring, a hardware watchdog, automatic power-on, and Wake-on-LAN for industrial system management.
  • What operating systems does the IXH-WCL35 support?

    The IXH-WCL35 supports Windows 10/11 64-bit and Linux 64-bit.
  • What applications is the IXH-WCL35 designed for?

    The IXH-WCL35 is designed for smart factories, intelligent transportation, industrial automation, energy management, edge AI, industrial monitoring, and other embedded applications.
