Industrial Pc-IXBW-35

IXBW-35
Product Description

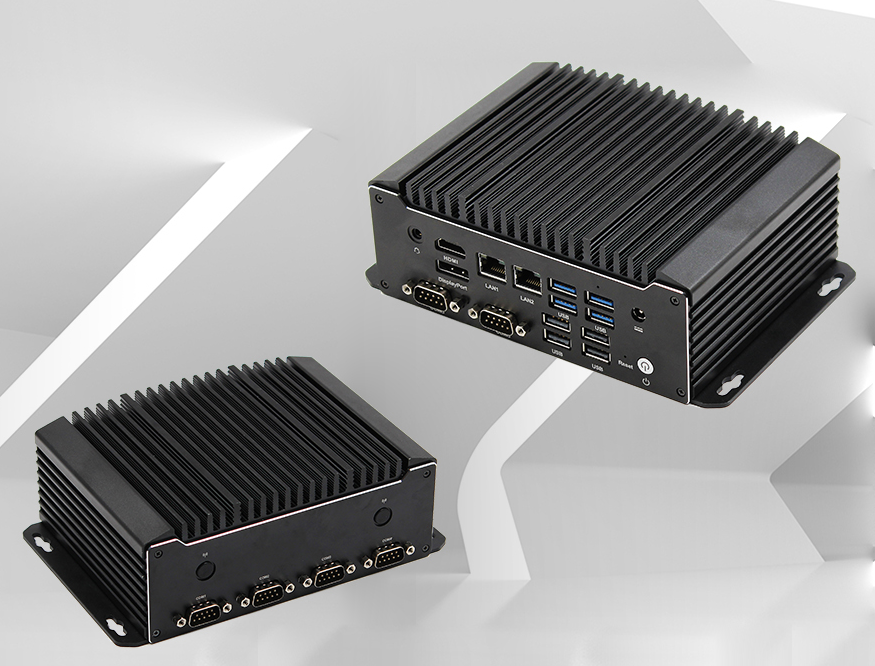

Industrial Fanless PC IXBW-35 Product description

The Maxtang IXBW-35 Industrial Fanless PC is a reliable and energy-efficient solution for industrial automation applications. Powered by the Intel® Haswell/Broadwell-U processors, this fanless PC is designed to deliver stable performance while minimizing power consumption. With up to 8GB of DDR3L memory and integrated Intel® Graphics, it is well-suited for tasks that require consistent, dependable operation in harsh environments. The fanless design ensures quiet and dust-resistant operation, while its wide operating temperature range of -20°C to 60°C makes it ideal for industries that need systems that perform reliably under varying conditions.

Features

    Industrial Fanless PC IXBW-35 Features

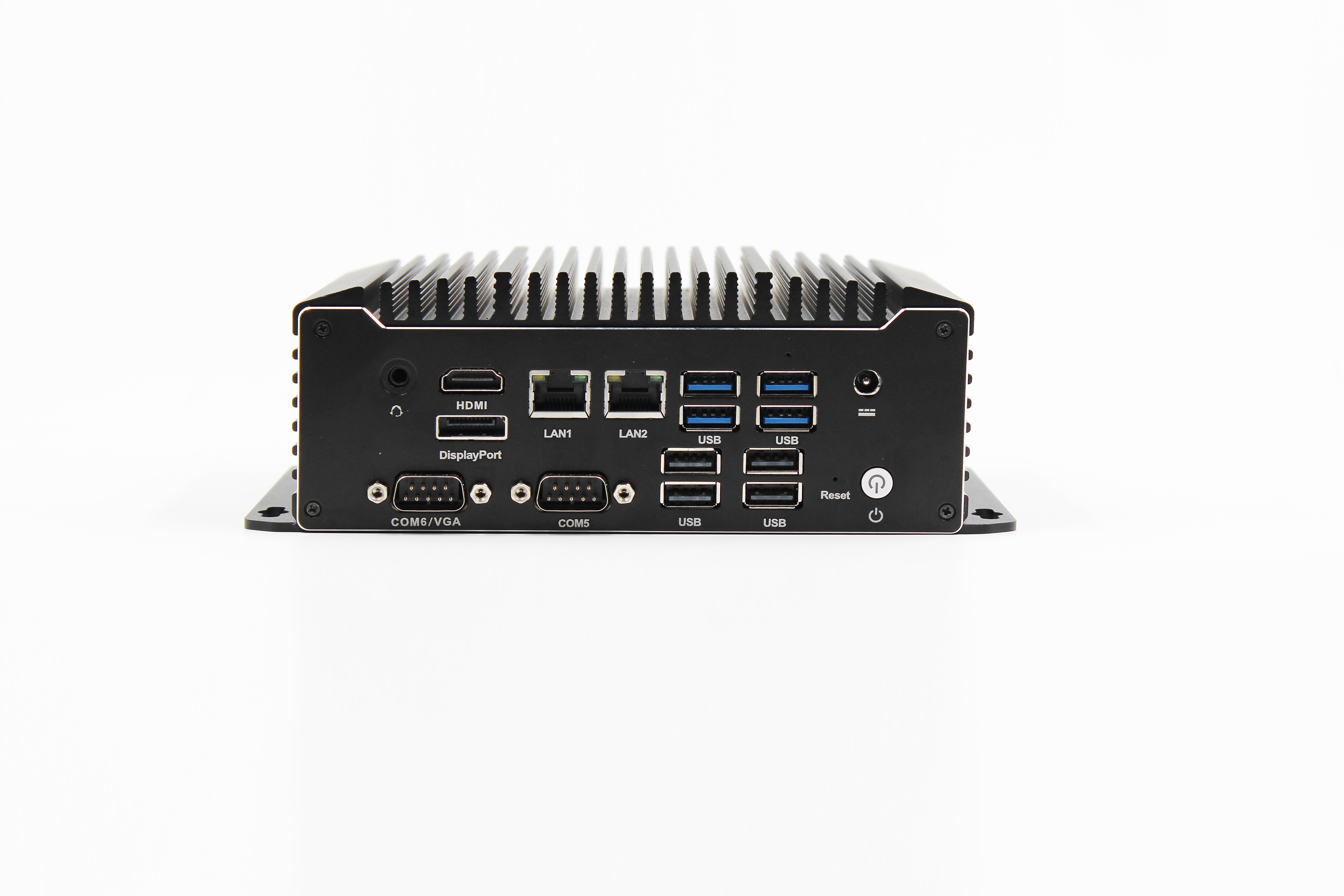

    IXBW-35 Front Picture.jpg

    • CPU: Intel Haswell/Broadwell-U processor

    • Memory: Single Channel SO-DIMM DDR3L up to 8GB

    • Display: Multiple display via HDMI, DP, VGA optional

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA3.0, mSATA

    • Expansion: M.2 for WiFi

    • Power: 12V/19V DC input, Phoenix Input Optional


Reliable Processing

Reliable Processing
The Broadwell-U processor is built on Intel’s 5th Gen architecture with 1.9 billion transistors, offering 22% better 3D graphics performance, 50% faster video conversion, and improved productivity compared to the previous generation. With architectural enhancements that reduce leakage and boost per-transistor efficiency, Broadwell-U delivers low-power, high-performance computing—making it an excellent fit for fanless industrial PCs, embedded systems, and IoT applications.

Fanless, Ventless, Dust-Resistant

Fanless, Ventless, Dust-Resistant
The IXBW-35 industrial PC combines efficient performance with long-term reliability.
Its rugged full-aluminum enclosure and fanless, ventless design safeguard internal
components from dust, debris, and harsh industrial environments, ensuring stable
operation and durability.


Rich I/O Interfaces

Rich I/O Interfaces
The IXBW-35 industrial PC is equipped with 2× Gigabit LAN, 6× COM ports, multiple display outputs, and optional VGA, providing flexible connectivity to meet diverse requirements. These interfaces make it ideal for a wide range of industrial applications, including factory automation, IoT gateways, machine vision, digital signage, kiosks, transportation systems, and edge computing deployments. With its versatile I/O design, the IXBW-35 easily integrates into complex industrial environments while ensuring stable, long-term performance.

Fanless Design

Fanless Design
The fanless design ensures silent operation while maintaining stable performance and durability in harsh industrial environments.

Multiple Display

Multiple Display
Display via HDMI®, DP, VGA (optional), Intel UHD graphics. Expanded visual experience, great for multitasking.
Technical Parameters

Specification

BW35 Specification.png


*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_IXBW-35 Drivers Audio_Realtek_ALC662 Drivers LAN_Intel_1.0GbE Drivers Intel Broadwell/Haswell Series
