Name: IXBYT-35 V1.0
Brand: Maxtang
Price: Request for Quote USD
Availability: InStock

Product description

The Maxtang IXBYT-35 is a industrial Fanless PC powered by Intel® Bay Trail processors (J1800, J1900, N2940). Supporting up to 4GB DDR3L memory with a low 10W TDP, it delivers energy-efficient performance for industrial and embedded applications. With dual display outputs (HDMI + VGA) and a comprehensive I/O interface including 2× Gigabit LAN, 6× COM, 1× USB 3.2, 5× USB 2.0, SATA2.0, mSATA, and mini-PCIe expansion, the IXBYT-35 provides flexible connectivity for diverse requirements.

Built with a fanless, ventless aluminum enclosure, the IXBYT-35 ensures dust resistance, durability, and long-term stability in harsh industrial environments. Combining robust design, low power consumption, and cost efficiency, it is an ideal solution for factory automation, IoT gateways, digital signage, kiosks, and edge computing applications.

Intel^® Bay Trail Processors

Based on the Bay Trail platform, these processors are built on a 22nm low-power tri-gate transistor process, delivering both enhanced performance and improved energy efficiency over the previous generation. Featuring the Silvermont architecture, Bay Trail offers around 50% higher performance per clock thanks to architectural advancements such as optimized branch prediction, larger buffers, and improved decoders.

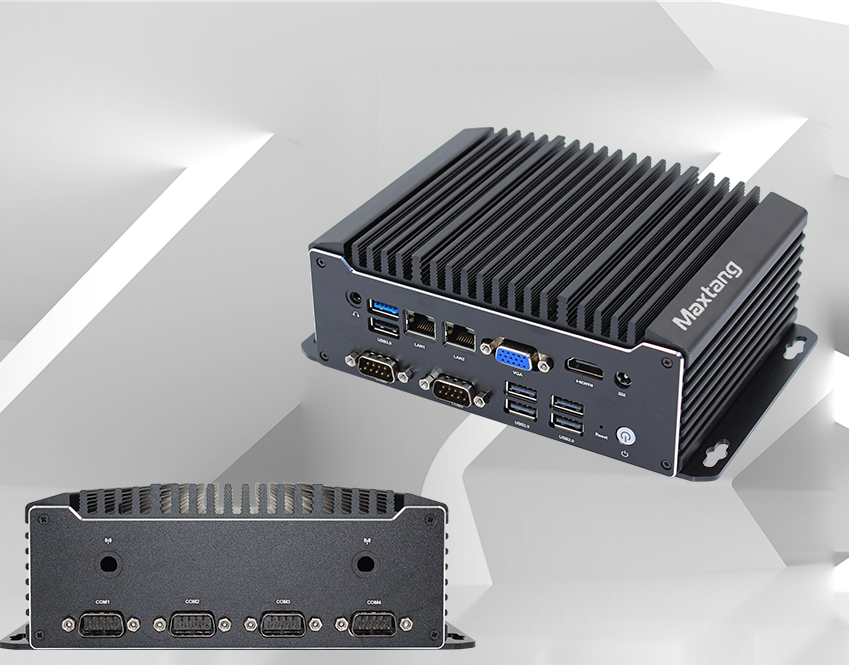

Fanless, Ventless, Dust-Resistant

The IXBYT-35 industrial PC delivers efficient and reliable performance
in a rugged full-aluminum enclosure. Its fanless, ventless design
protects internal components from dust, debris, and harsh industrial
environments, ensuring long-term stability and durability.

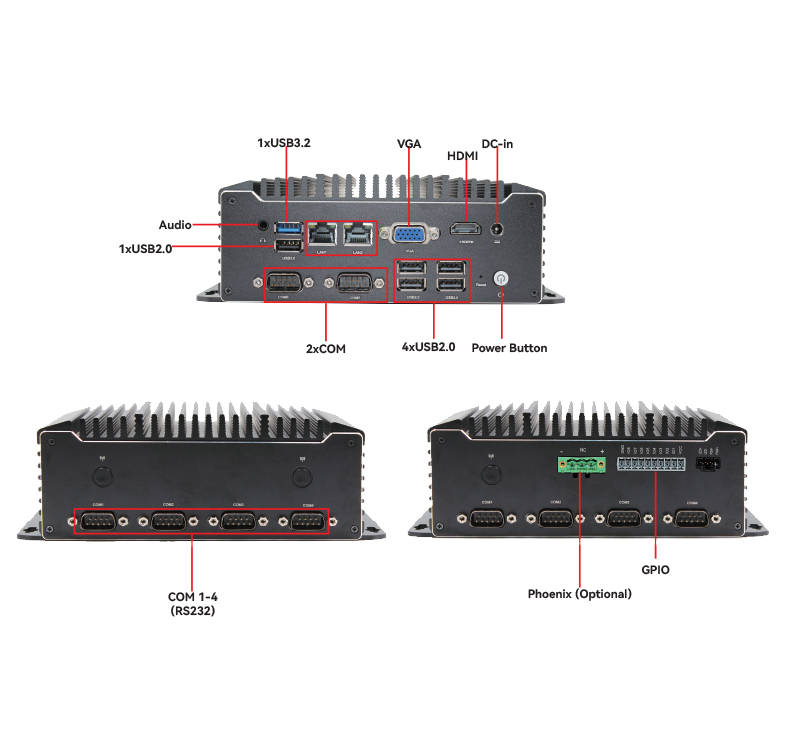

Comprehensive I/O Interface

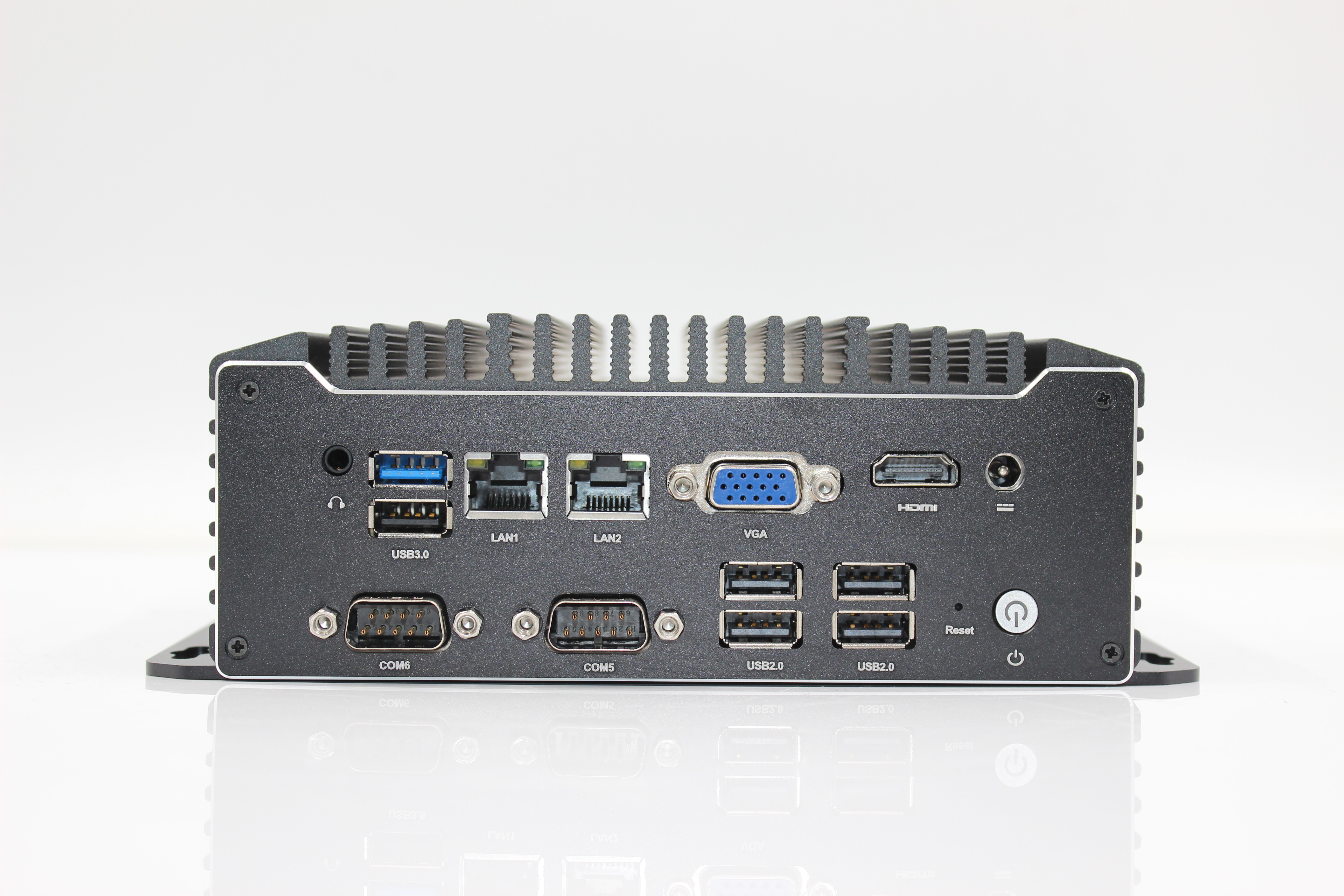

The IXBYT-35 is equipped with a wide range of I/O options, including 2× RJ45 Gigabit Ethernet ports, SATA2.0 and mSATA for storage, and mini-PCIe for Wi-Fi/4G expansion. Display support is provided via HDMI® and VGA, while additional connectivity includes 1× USB 3.2, 5× USB 2.0, and 6× COM ports. A standard 12V DC-in ensures flexible power input. With its versatile I/O design, the IXBYT-35 meets the needs of industrial automation, IoT gateways, digital signage, kiosks, and other embedded applications.

Fanless design

Fanless design ensures stable CPU performance while maintaining silent, reliable operation.

Multiple Display

Integrated Intel^® HD Graphic, display via VGA, HDMI^® ports, and 1xLVDS pin on board, provide strong support to digital display equipment.

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
