Industrial Pc-IXEHL-35 V1.0

IXEHL-35 V1.0
Product Description

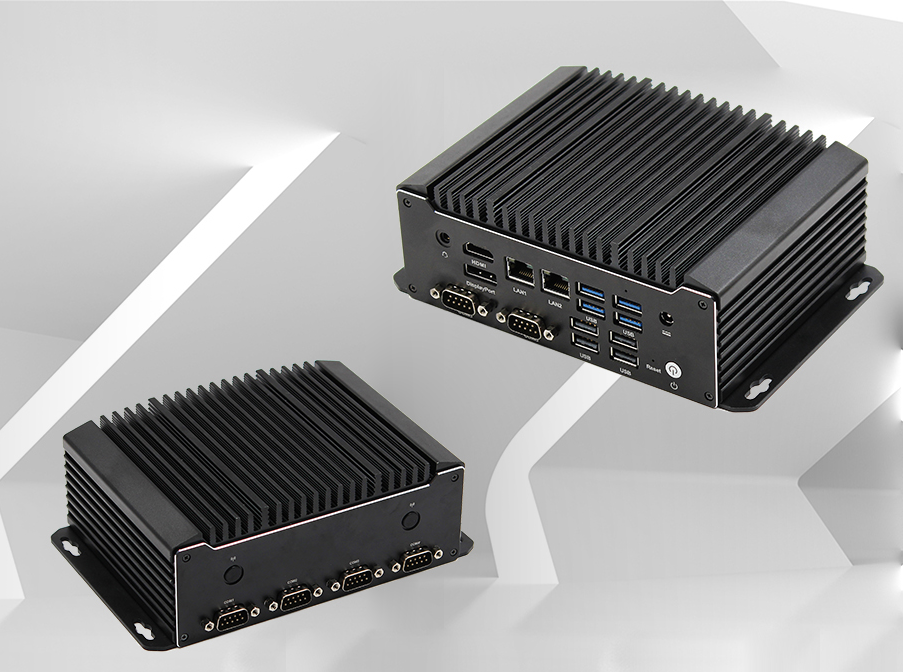

Industrial Fanless PC IXEHL-35 Product description

The Maxtang IXEHL-35 industrial fanless PC, powered by the Intel® Elkhart Lake Celeron® J6412 processor, is a compact, high-performance solution for industrial automation, motion control, and surveillance applications. With support for up to 32GB of DDR4 memory and Intel® UHD Graphics, it delivers reliable performance for demanding tasks. Its fanless design ensures silent operation, making it perfect for environments with dust or contaminants, while its durable construction and wide operating temperature range of -20°C to 60°C make it ideal for industrial automation in harsh environments. O

Features

    Industrial Fanless PC IXEHL-35 Features

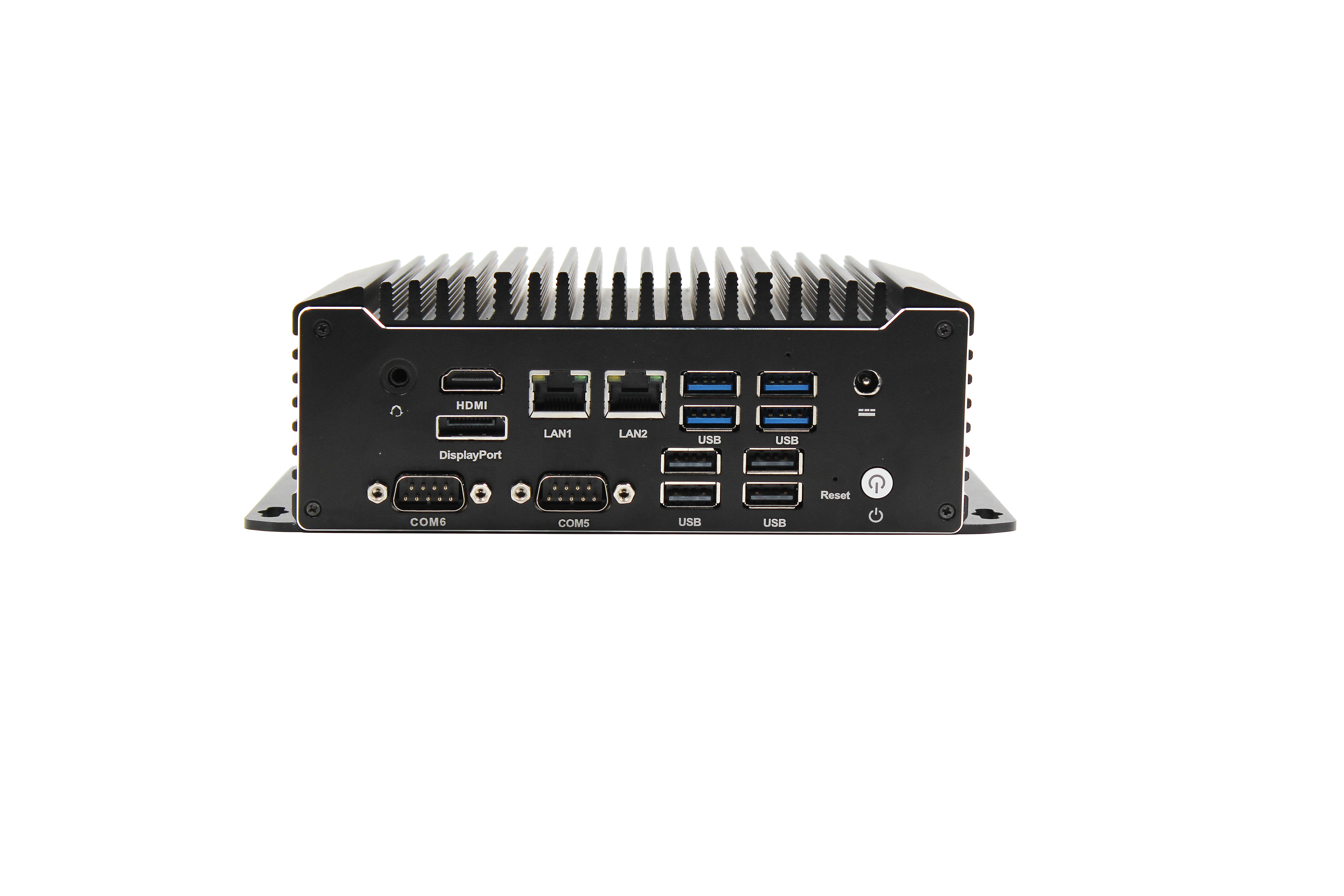

    IXEHL-35 Front picture.png

    • CPU: Intel® Celeron® Processor J6412

    • Memory: Single Channel SO-DIMM DDR4 up to 32 GB

    • Display: Intel® UHD Graphics, display via HDMI®+DP

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA3.0, mSATA

    • Expansion: M.2 for WiFi

Intel® Elkhart Lake Processor J6412

Intel® Elkhart Lake Processor J6412
The Intel® Celeron® J6412 processor, built on the Elkhart Lake platform, features 4 cores and 4 threads, a 1.5MB cache, and a burst frequency up to 2.60GHz. Designed for low power consumption (10W TDP) while delivering reliable performance.

Fanless, Ventless, and Dust-Resistant

Fanless, Ventless, and Dust-Resistant
The IXEHL-35 delivers powerful and efficient performance with exceptional reliability.
Built with a durable full-aluminum enclosure and a fanless, ventless design,
it effectively protects internal components from dust, debris, and harsh industrial
environments, ensuring long-term stability and durability.

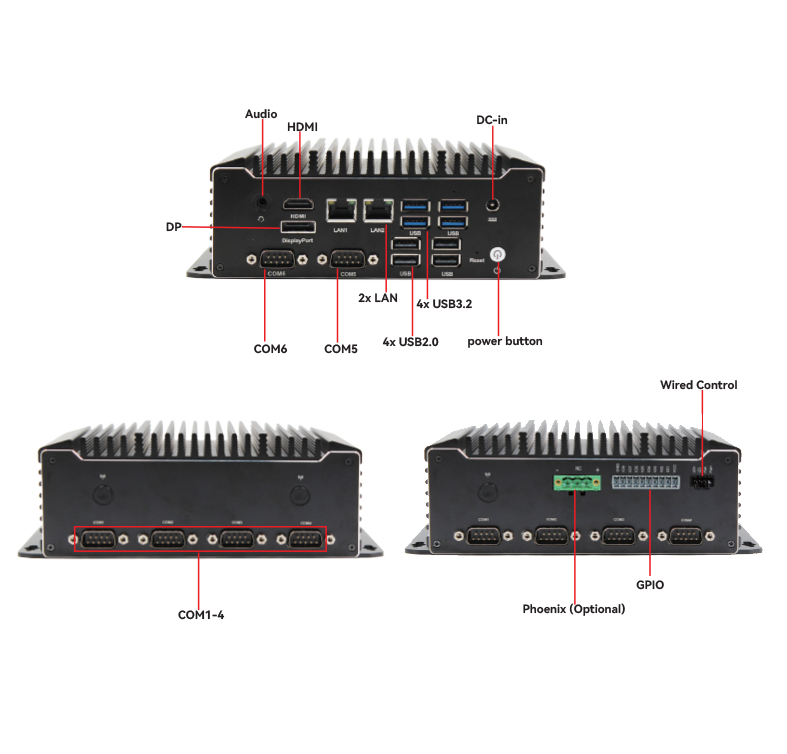

Rich I/O Interfaces

Rich I/O Interfaces
The IXEHL-35 offers a comprehensive range of I/O interfaces, including 2× Gigabit LAN, 6× COM, 8× USB, GPIO, CTIA audio, and 12V DC-in, enabling seamless connectivity for industrial automation, IoT devices, kiosks, digital signage, and factory control systems. With an operating temperature range of -20°C to 60°C, it ensures reliable performance even in harsh industrial and edge computing environments.


Fanless design

Fanless design
Fanless design ensures stable CPU performance while maintaining silent, reliable operation.

Multiple Display

Multiple Display
HDMI® + DP with Intel® UHD Graphics for smooth multitasking.
Technical Parameters

Specification

IXEHL35 V1.0 Specification.png


*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Drivers LAN_Realtek_1.0GbE Drivers Audio_Realtek_ALC897 Drivers Intel Elkhart Lake Series Datasheet_IXEHL-35
