Industrial Pc-DXBYT-60

DXBYT-60
Product Description

Industrial Fanless PC DXBYT-60 Product Description

The Maxtang DXBYT-60 industrial fanless PC, powered by the Intel® Bay Trail processor, is designed for high-performance applications in industrial automation, motion control, and surveillance. With its fanless architecture, this system offers quiet and reliable operation even in dusty or harsh environments. Dual display support through HDMI and VGA provides flexibility for complex industrial setups, while its wide operating temperature range of -20°C to 60°C ensures consistent performance under extreme conditions.

Features

    Industrial Fanless PC DXBYT-60 Features

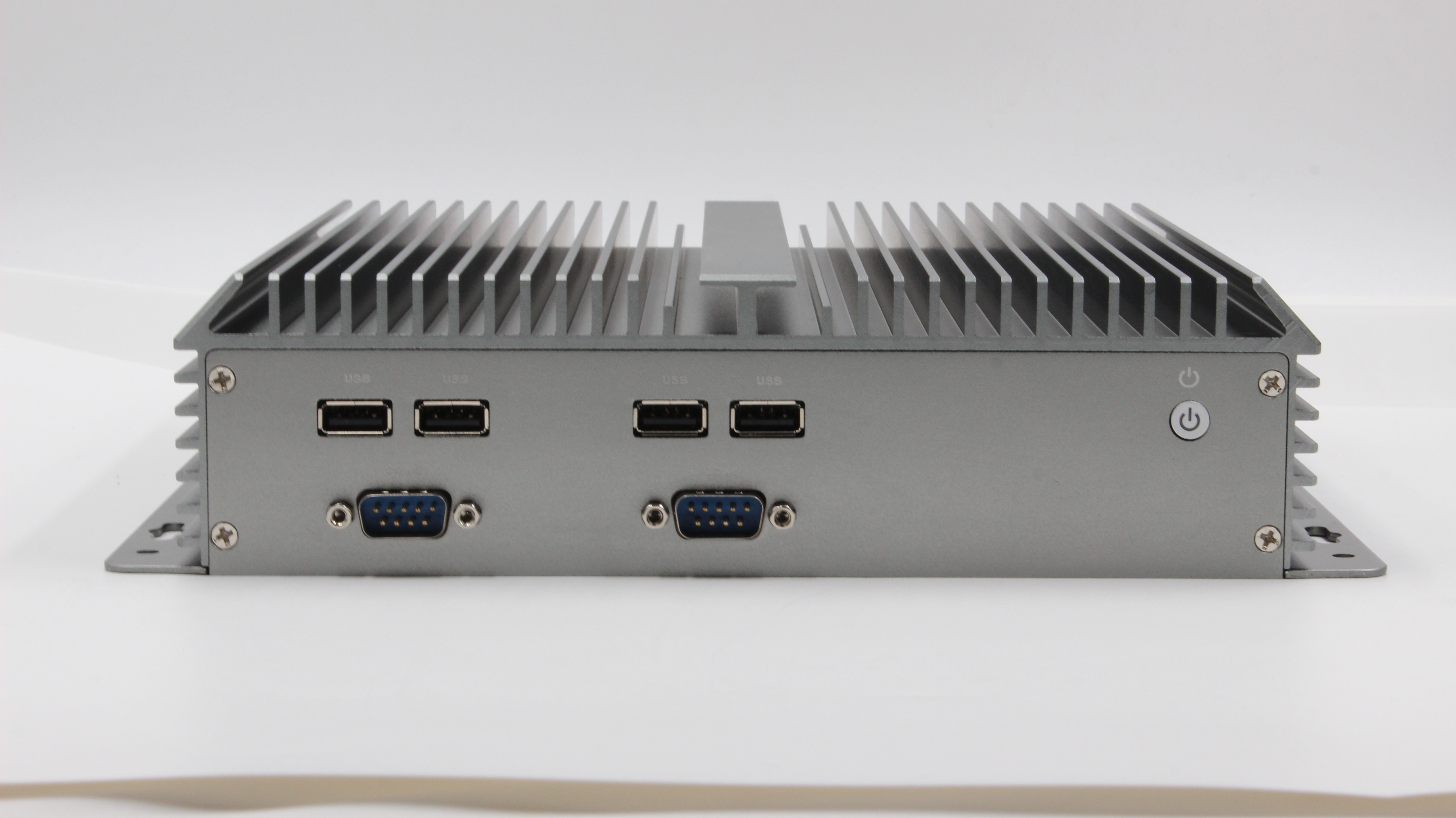

    DXBYT-60 Front picture.jpg

    • CPU: Intel Bay Trail Processor

    • Memory: Single Channel SO-DIMM DDR3L up to 8G

    • Display via: Intel HD Graphics via VGA, HDMI

    • I/O Ports: 1xUSB3.2, 5xUSB2.0. 2xLAN, 6xCOM

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA2.0, mSATA

    • Power:12V DC-in, Low Power Consumption



Intel® Bay Trail Processors

Intel® Bay Trail Processors
The DXBYT-60 is powered by Intel® Bay Trail Celeron® processors, offering flexible performance for industrial PC applications. It supports three processor options: the dual-core Celeron® J1800, running at 2.41GHz with burst speeds up to 2.58GHz, featuring 1MB cache and a 10W TDP; the quad-core Celeron® J1900, with a 2.00GHz base frequency, 2.42GHz burst, 2MB L2 cache, and the same 10W TDP; and the quad-core Celeron® N2940, delivering 1.83GHz base, up to 2.25GHz burst, 2MB L2 cache, and a lower 7.5W TDP. With this range of processor choices, the DXBYT-60 provides the right balance of processing power, energy efficiency, and cost-effectiveness, making it ideal for automation, surveillance, and embedded industrial environments.


Multi-Display Output

Multi-Display Output

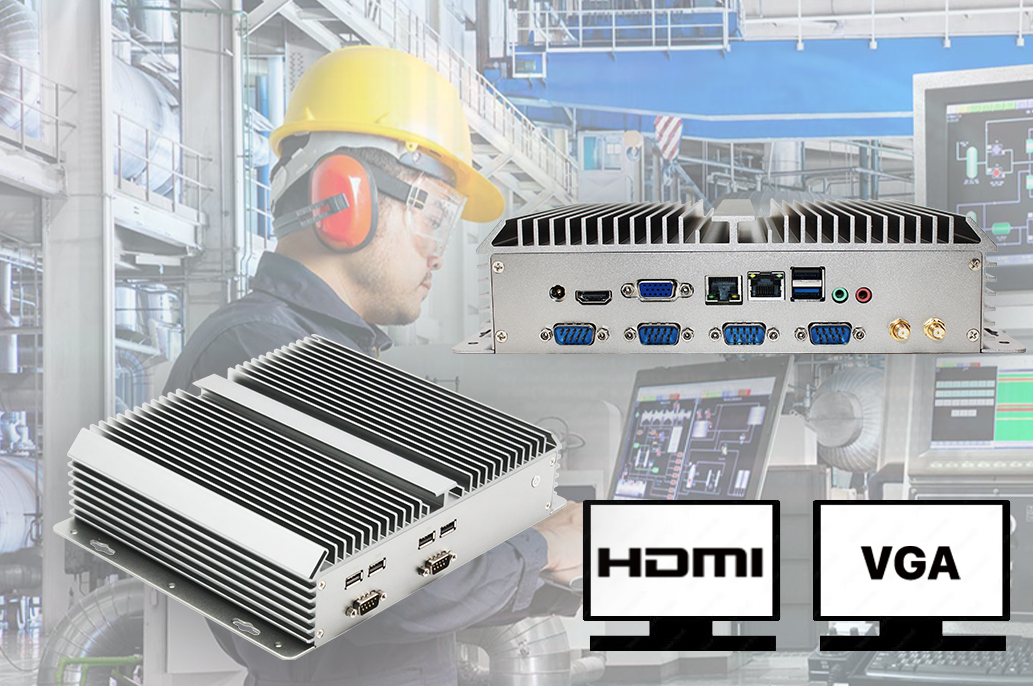

The DXBYT-60 features dual display support through HDMI and VGA outputs, powered by
integrated Intel® HD Graphics. This capability ensures reliable and flexible video
performance in industrial automation, vision inspection, motion control, and
surveillance applications. By enabling simultaneous dual-screen operation,
the system delivers clear visualization of production data, real-time monitoring,
and efficient process control. Its stable graphics performance and fanless industrial
design make it a cost-effective solution for demanding environments where
durability and consistent output are essential.

Multi-Display Output

Comprehensive I/O Interface
The DXBYT-60 offers a comprehensive I/O interface to meet the demands of industrial applications. It is equipped with 1× USB 3.2 and 5× USB 2.0 ports for peripheral connectivity, dual LAN interfaces for reliable networking, and 6× COM ports for legacy device support. In addition, the system provides HDMI 2.0 and VGA outputs to enable multiple display options, ensuring flexibility and ease of integration into diverse operating environments.


High Performance

High Performance
The DXBYT-60 combines high performance with low power consumption in a robust aluminum, fanless design that ensures silent operation and reliable protection in dusty industrial environments.
Multiple Display
Delivering reliable performance for digital display equipment and dual-monitor setups.


Technical Parameters

Specification

DXBYT60 Specification.png


*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_DXBYT-60 Drivers Audio_Realtek_ALC897 Drivers Audio_Realtek_ALC662 Drivers LAN_Realtek_1.0GbE Drivers Intel Bay Trail Series
