Industrial Pc-DXBW-10

DXBW-10
Product Description

Industrial Fanless PC DXBW-10 Product Description

The Maxtang DXBW-10 industrial fanless PC, powered by Intel® Haswell/Broadwell processors, is built to deliver high performance for demanding industrial automation, motion control, and surveillance applications. Featuring a fanless design, this system ensures quiet operation and is ideal for environments where dust and contaminants are a concern. With dual display support via HDMI and VGA, the DXBW-10 offers flexibility for complex industrial setups. Equipped with 10 COM ports, it provides extensive connectivity options for various industrial systems.

Features

    Industrial Fanless PC DXBW-10 Features

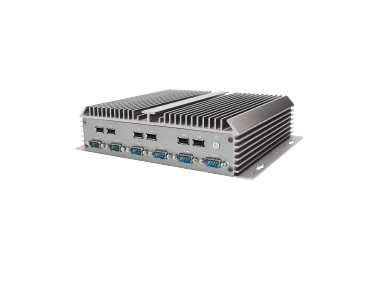

    DXBW-10 Front Picture.jpg

    • CPU: Intel Haswell/Broadwell Processors

    • Memory: Single Channel DDR3L up to 8GB

    • Display via: Dual display via 1xHDMI, 1xVGA

    • I/O Ports: 2xUSB3.2, 6xUSB2.0. 2xLAN, 10x COM

    • Ethernet: 10/100/1000Mbps

    • Power: 12V/19V

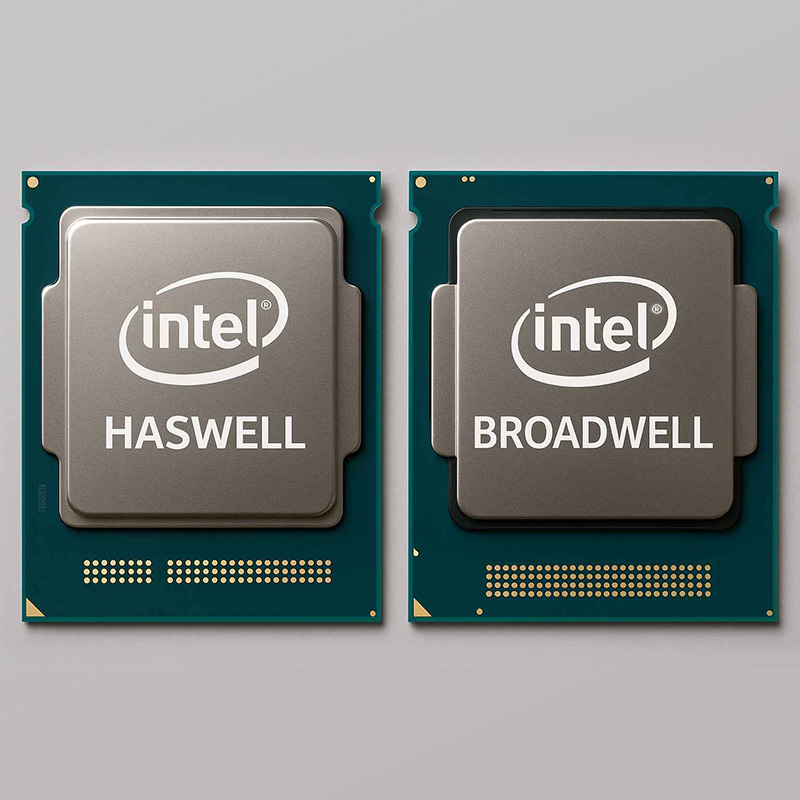

Intel® Haswell/Broadwell Processors

Intel® Haswell/Broadwell Processors
The DXBW-10 is powered by Intel® Haswell and Broadwell Core™ processors, including options such as i3-4010U, i5-4200U, i7-4500U, and i7-5500U. These processors feature up to 2.4GHz base frequency and turbo boost up to 3.0GHz, with 3MB to 4MB cache and a 15W TDP, balancing high performance with low power consumption. Integrated Intel® HD Graphics provide smooth visual output, making these CPUs a reliable choice for embedded computing platforms.

Fanless PC

Fanless PC
With sufficient COM port, extreme performance.

Rich I/O Interfaces

I/O Interfaces
The DXBW-10 offers rich connectivity with 2 × Gigabit LAN, 2 × USB 3.0, 4 × USB 2.0, 1 × COM, 1 × HDMI®, 1 × VGA, and audio in/out, along with expansion via mSATA and Mini PCIe. This comprehensive I/O design ensures seamless integration with industrial controllers, factory automation systems, kiosks, IoT devices, and digital signage solutions, delivering flexible networking, storage, and peripheral connectivity for diverse embedded and edge computing applications.

Fanless Design

Fanless Design
Keeps the CPU cool while running quietly and efficiently.

Multiple COM Outputs

Multiple COM Outputs
10 COM ports to cover whatever you need.
Technical Parameters

Specification



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_DXBW-10 Drivers Audio_Realtek_ALC662 Drivers LAN_Realtek_1.0GbE Drivers Intel Haswell/Broadwell Series
