Name: DXAL-10
Brand: Maxtang
Price: Request for Quote USD
Availability: InStock

Industrial Fanless PC DXAL-10 Product Description

The Maxtang DXAL-10 industrial fanless PC, powered by Intel® Alder Lake-U processors, is a high-performance solution for industrial automation, motion control, and surveillance applications. Equipped with Intel® Xe or UHD Graphics (depending on CPU), the DXAL-10 offers exceptional graphics performance and supports up to 4K displays, making it ideal for digital signage, vision inspection, and complex industrial environments. With up to 64GB of dual-channel DDR4 memory, this fanless embedded system delivers reliable computing power for demanding industrial tasks. Its fanless design ensures silent operation and durability, even in harsh environment.

Industrial Fanless PC DXAL-10 Features

CPU: Intel® Alder Lake-U Series Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display: Intel^® Integrated Graphics via 4xHDMI^®2.0
I/O Ports: 4xUSB3.2, 4xUSB2.0. 2xLAN, 6xCOM
Ethernet: 10/100/1000/2500Mbps
Storage: SATA3.0, M.2_2280 for NVMe SSD
Dimension: 255mm x 220mm x 60mm (10x8.7x2.4-inch)
Power: 19V DC-in

Intel® Alder Lake-U Series

Powered by the Intel® Alder Lake-U Series processors, the DXAL-10 leverages a hybrid architecture of performance and efficient cores, delivering strong computing power while maintaining low energy consumption. With up to 10 cores, 12 threads, and a turbo frequency of 4.4GHz, combined with dual-channel DDR4 memory up to 64GB, it ensures reliable performance for multitasking, industrial automation, vision inspection, and data-intensive applications.

Wide-Range Of Applications

The DXAL-10 offers extensive connectivity with 6 COM ports, dual Gigabit/2.5G LAN,
USB3.2, USB2.0, and multiple HDMI outputs, making it well-suited for multi-device
integration and multi-display setups. Its fanless construction and rugged design ensure
consistent performance even in challenging environments, supporting applications such as
industrial automation, vision inspection, motion control, digital signage and surveillance.

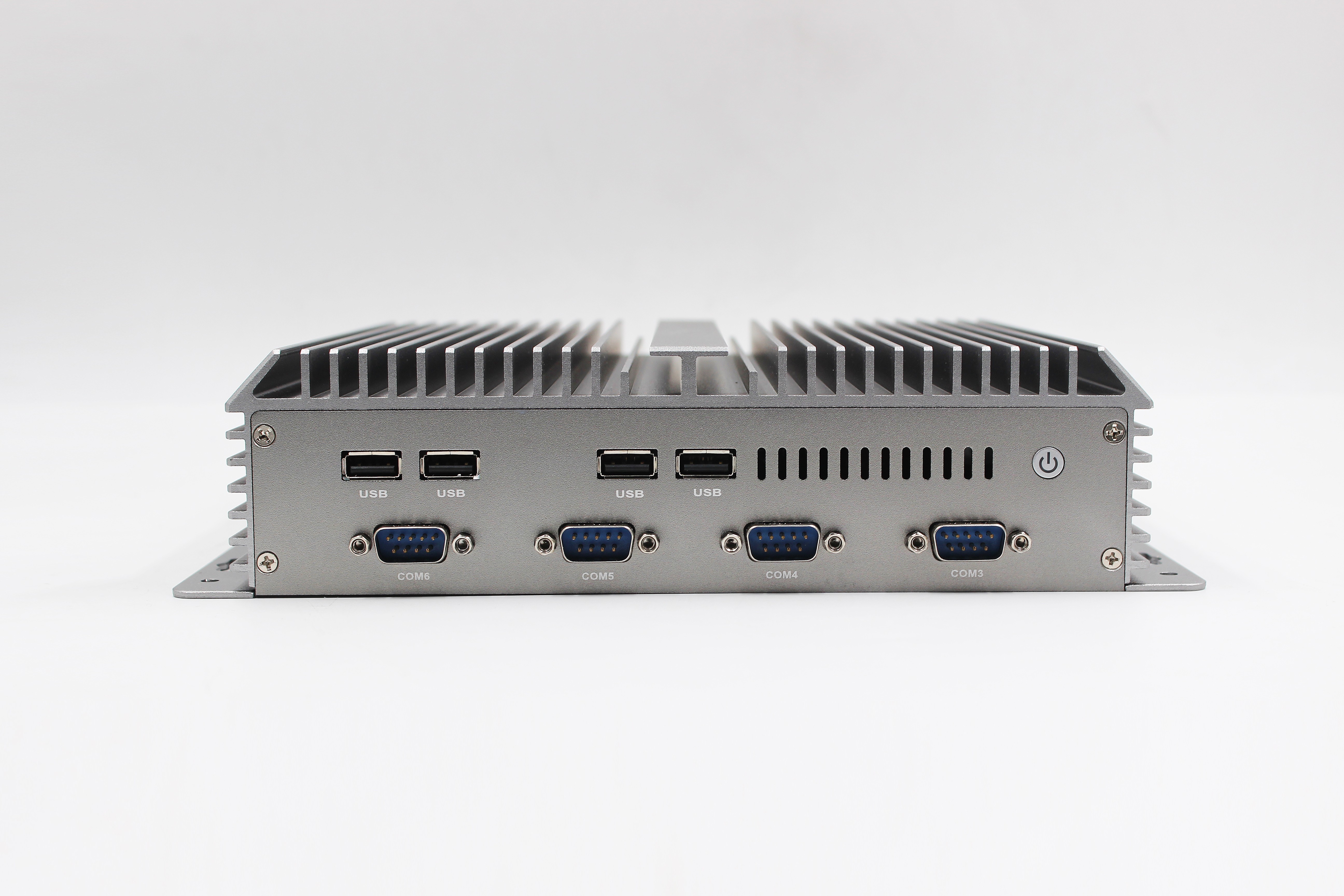

I/O Interfaces

The DXAL-10 is equipped with a versatile set of I/O interfaces, including 6 COM ports (configurable RS232/RS485), 4 USB3.2, 4 USB2.0, dual LAN (1×2.5GbE + 1×1GbE), 4 HDMI2.0, and audio line-in/out. This comprehensive connectivity enables seamless integration with multiple peripherals, supporting multi-display setups, high-speed data transfer, and reliable device communication. Such flexibility makes it ideal for industrial automation, equipment control, data acquisition, and surveillance systems .

Technical Parameters

Features

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
