Industrial Pc-DSAL-35

DSAL-35
Product Description

Industrial Fanless PC DSAL-35 Product Description

The Maxtang DSAL-35 industrial fanless PC, powered by the Intel® Alder Lake-U series processor, is designed for high-performance industrial automation, motion control, and surveillance applications. With Intel® Iris® Xe Graphics (depending on CPU), this embedded system delivers exceptional graphics performance and supports dual displays via HDMI for flexible visual setups. The fanless design ensures silent and reliable operation, even in harsh environments. Built with up to 64GB of DDR4 memory, the DSAL-35 provides powerful computing for demanding tasks.

Features

    Industrial Fanless PC DSAL-35 Features

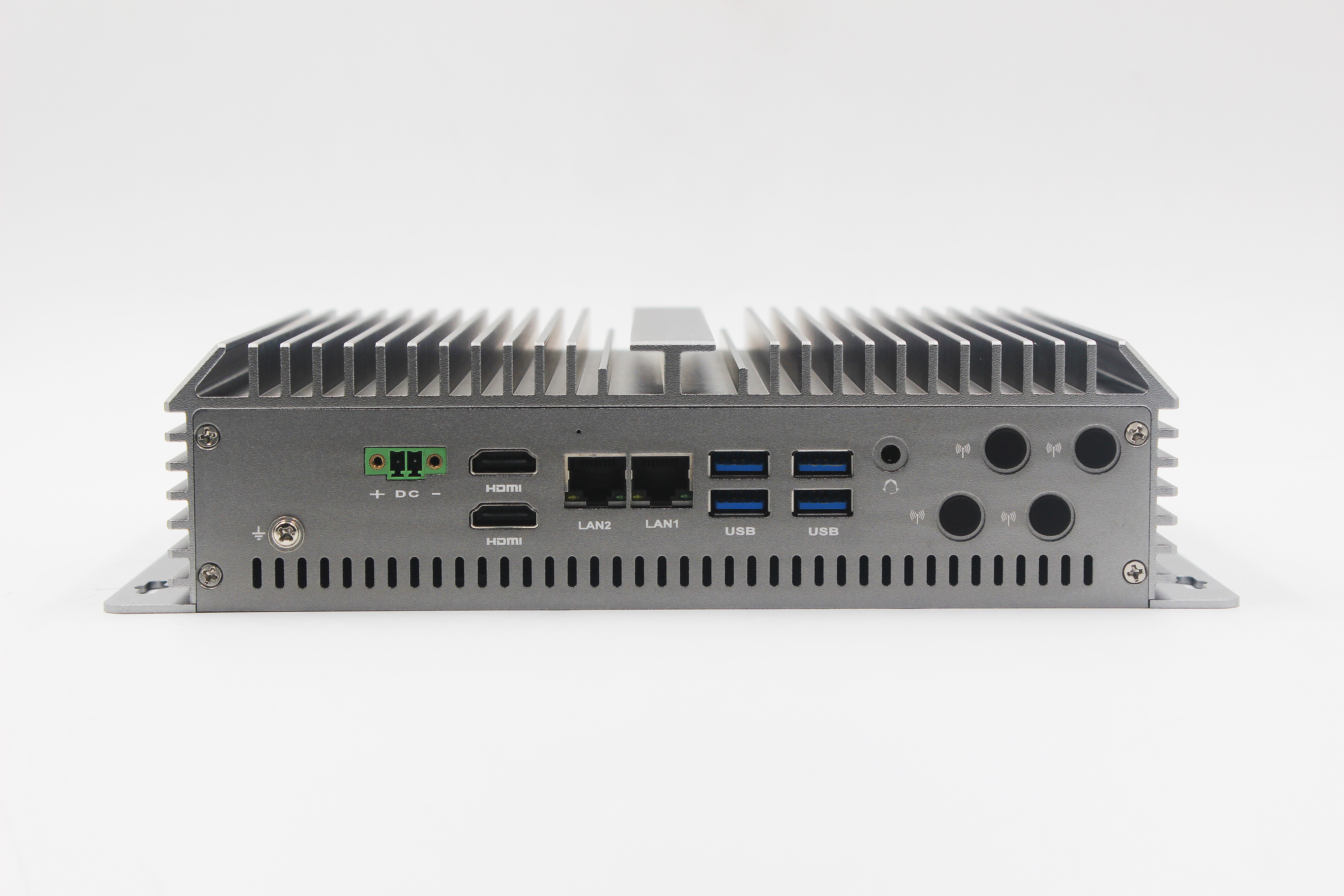

    DSAL-35 Front Picture.jpg

    • CPU: Intel® Alder Lake-U Series Processor

    • Memory: Dual Channel SO-DIMM DDR4 up to 64GB

    • Display via: Intel® Integrated Graphics via 2xHDMI2.0

    • I/O Ports: 4xUSB3.2, 4xUSB2.0. 2xLAN, 6xCOM

    • Ethernet: Intel i219(1.0GbE)+Intel i210(1.0GbE)

    • Storage: SATA3.0, M.2 for SATA/4G, M.2 for NVMe

    • Dimension: 255mm x 165mm x 60mm

    • Power: 9V-35V DC-in







Intel® Alder Lake U Series

Intel® Alder Lake U Series
The DSAL-35 is powered by the Intel® Alder Lake-U Series processor, featuring a hybrid architecture with performance cores and efficient cores to balance speed and energy efficiency. With up to 10 cores and 12 threads, a turbo frequency of up to 4.4GHz, and 12MB cache, it delivers responsive computing for multitasking and industrial workloads. Combined with support for dual-channel DDR4 memory up to 64GB and integrated Intel® Iris® Xe Graphics, the platform ensures reliable performance for advanced industrial applications.

Industrial Automation

Industrial Automation
The Maxtang DSAL-35 is optimized for industrial automation, combining the power of the
Intel® Alder Lake-U processor with up to 64GB DDR4 dual-channel memory and extensive connectivity,
including 6 COM ports, dual LAN, USB3.2, and dual HDMI outputs. It integrates seamlessly with sensors,
PLCs, robotic arms, and motion control systems, while supporting demanding tasks such as vision inspection
and data acquisition. Its fanless design ensures silent and stable operation in dusty, high-vibration,
or high-temperature environments, making it ideal for smart manufacturing and automated production lines.

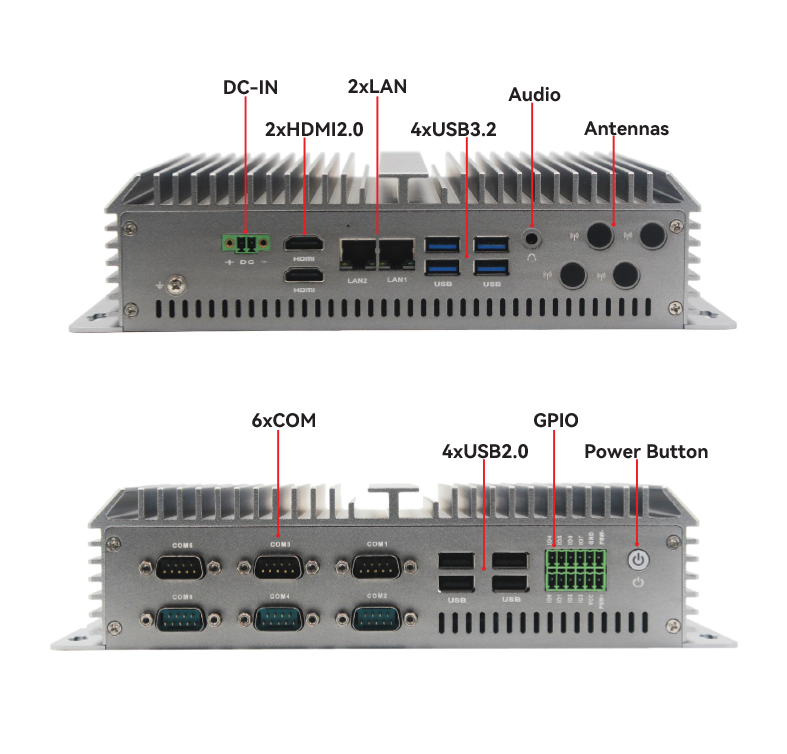

Rich I/O Interface

Rich I/O Interface
DSAL-35 offers a rich I/O interface, including 6 COM ports (configurable RS232/RS485/RS422), 4 USB3.2, 4 USB2.0, dual Gigabit LAN, and dual HDMI2.0 outputs, along with audio I/O and GPIO control. This versatile connectivity ensures seamless integration with sensors, PLCs, industrial equipment, and multi-display setups, making it well-suited for industrial automation, vision inspection, motion control, and surveillance systems.

High-speed hard drive

High-Speed
Blazing-fast PCle 3.0-based NVMe M.22280 SSD delivers over 3X quicker read/write speeds than SATA3.0 SSDs.

WiFi6 Technology

WiFi6 Technology
Enjoy 3x faster speeds compared to WiFi5, reaching up to 9.6Gbps,With support for 2.4GHz, 5GHz, and 6.0GHz.


Technical Parameters

Specification





*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.



Downloads
Datasheet_DSAL-35 Drivers Audio_Realtek_ALC897 Drivers Intel Alder Lake Series Drivers Intel LAN_1.0GbE2.5GbE
