Name: DX6412
Brand: Maxtang
Price: Request for Quote USD
Availability: InStock

Product Description

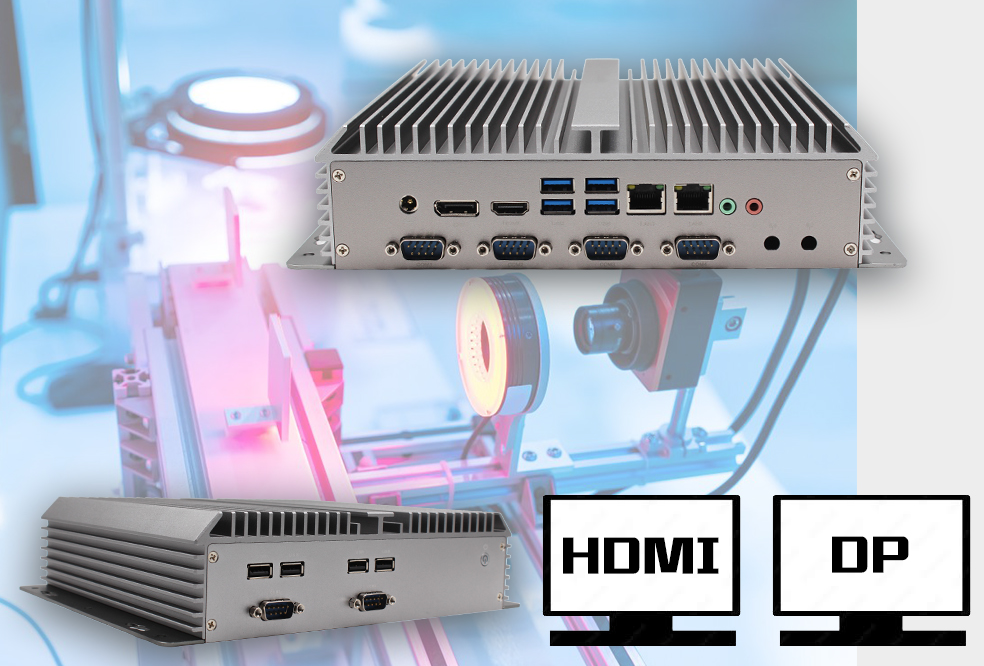

The Maxtang DX6412 is a industrial fanless PC powered by the Intel® Celeron® J6412 processor. It supports dual displays via HDMI® 2.0 and DP, and up to 32GB single-channel SO-DIMM DDR4 memory for enhanced computing performance. With versatile I/O and flexible expansion options, it meets the demands of industrial automation, vision inspection, motion control, and surveillance systems, providing stable performance in complex environments.

Its fanless construction overcomes dust, noise, and vibration challenges while improving MTBF by eliminating failure-prone components, extending platform lifecycle. The DX6412 carries the robust design of the Maxtang DX series at an extremely cost-effective price point, delivering reliable, high-performance computing for long-term industrial deployments.

Intel^® Elkhart Lake J6412 Processor

The DX6412 is powered by the Intel® Celeron® J6412, a quad-core, quad-thread processor with 1.5MB L2 cache, base frequency of 2.0GHz, and burst frequency up to 2.6GHz, all within a low 10W TDP. Compared to the previous generation, it delivers up to 1.7× better single-thread performance, 1.5× better multi-thread performance, and 2× graphics performance, ensuring efficient and reliable computing power.

Multi-Display Output

With integrated Intel® UHD Graphics, the DX6412 supports triple independent displays
via HDMI, DP, and LVDS/eDP interfaces, delivering resolutions up to 4K. This makes
it well-suited for digital signage, control rooms, industrial monitoring, and
edge computing visualization, where stable and clear multi-display output is essential.

Comprehensive I/O Interface

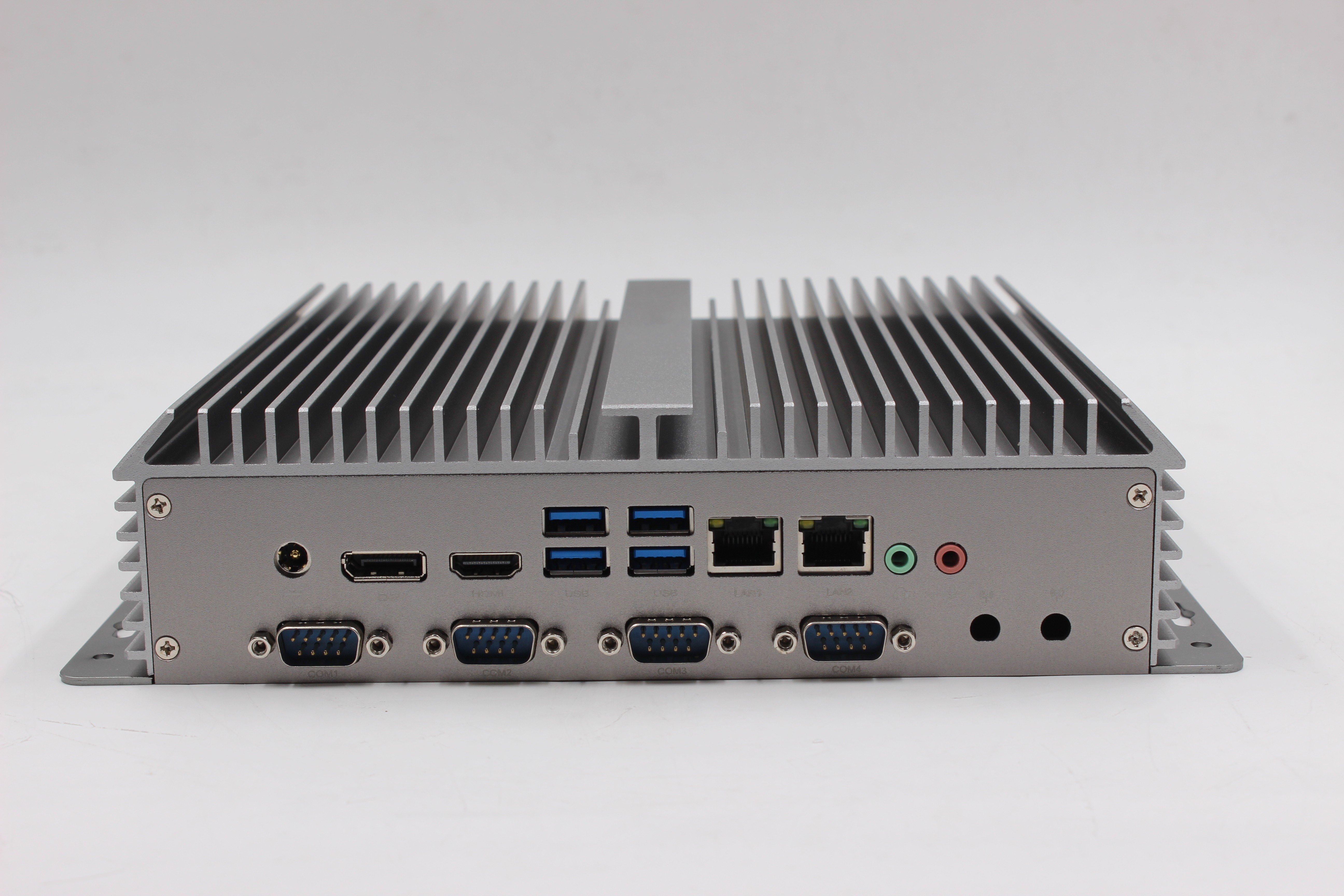

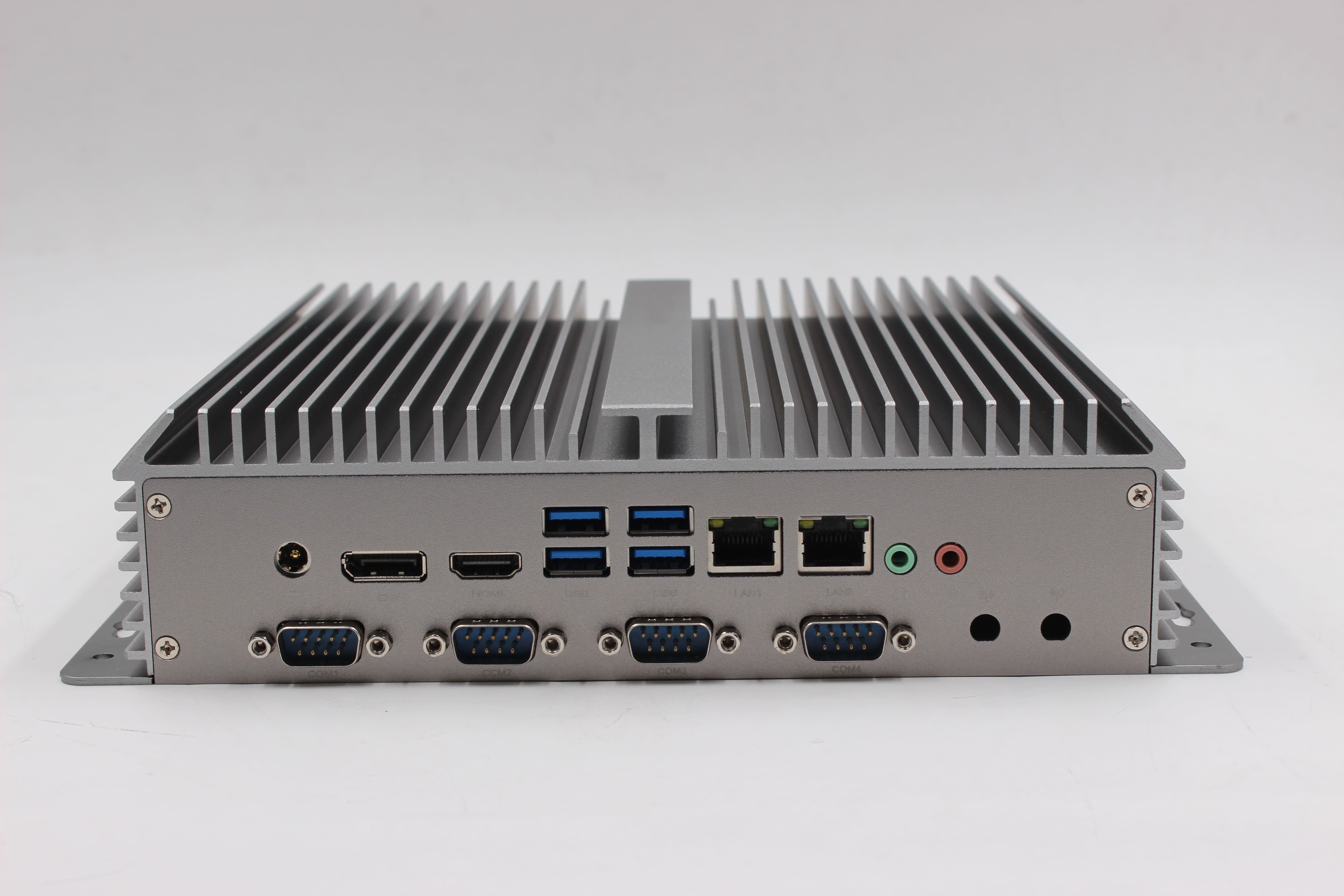

The DX6412 offers extensive connectivity with 4 × USB 3.2, 4 × USB 2.0, 2 × LAN, 6 × COM, 1 × HDMI® 2.0, and 1 × DP ports, supporting multiple displays and high-speed communication. This rich I/O design enables seamless integration with industrial controllers, factory automation systems, kiosks, IoT devices, and digital signage, making it adaptable for diverse embedded applications.

High Performance

With low power consumption and an aluminum fanless enclosure, it achieves efficient performance while ensuring reliable operation in dusty or harsh environments.

Multiple Display

Delivering clear multi-display performance for digital signage, kiosks, and control systems.

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
