Name: DXALN-10
Brand: Maxtang
Price: Request for Quote USD
Availability: InStock

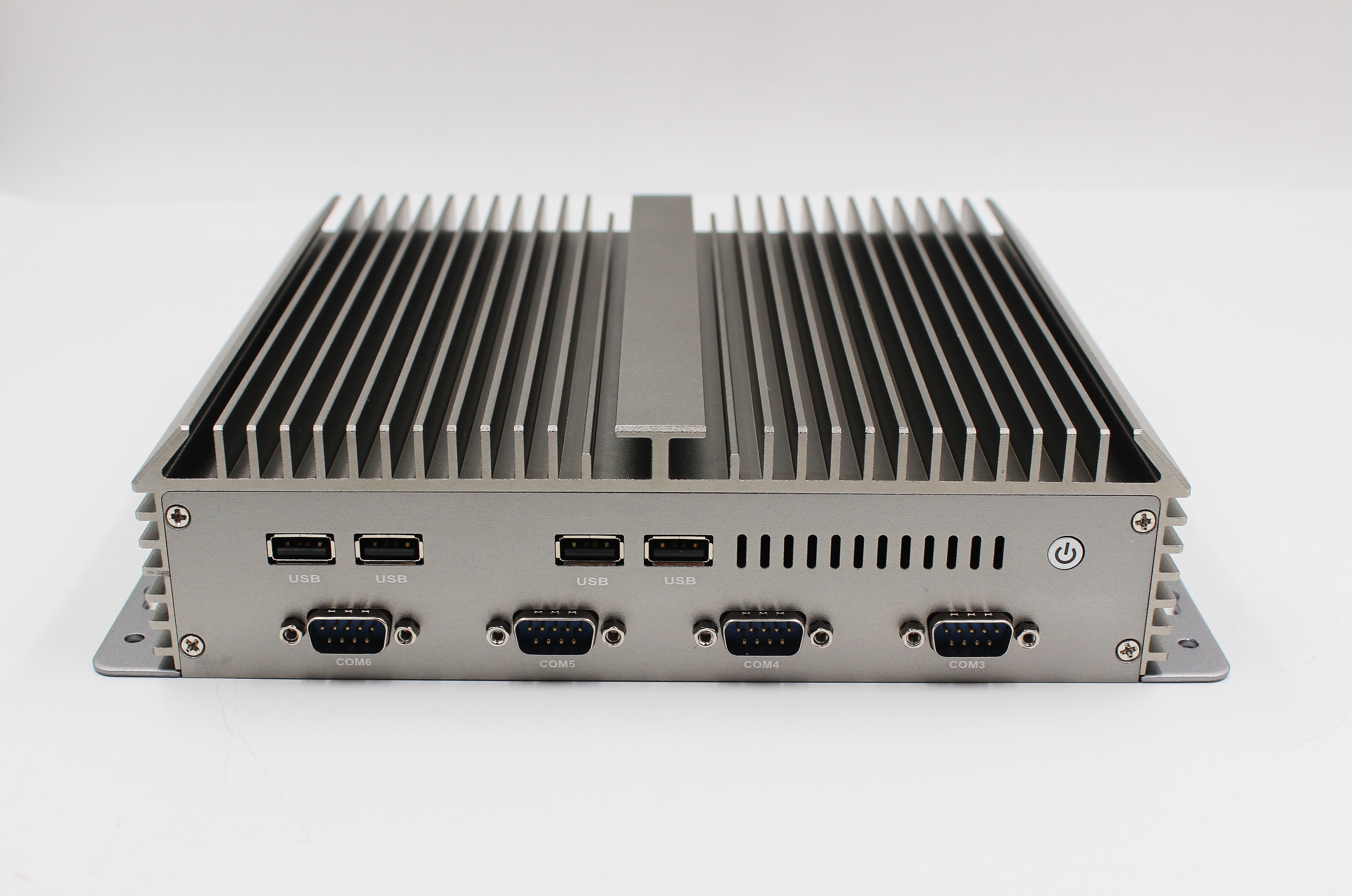

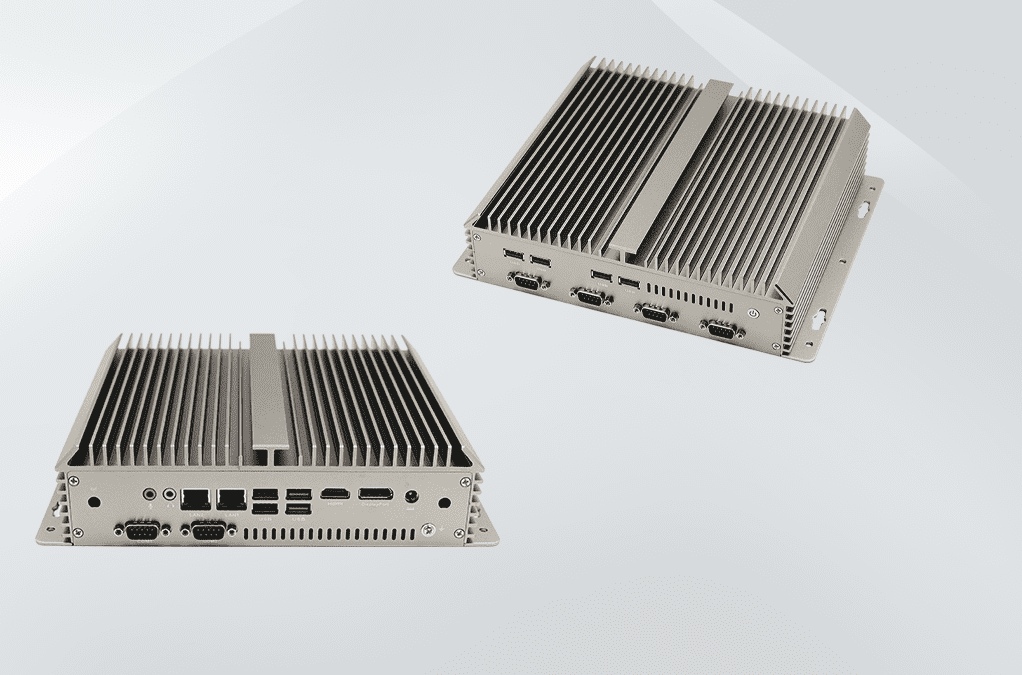

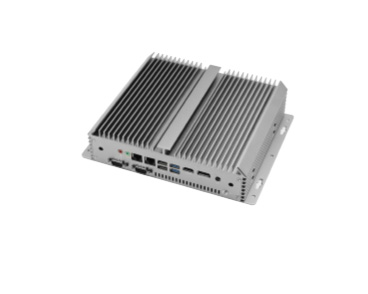

Industrial Fanless PC DXALN-10 Product Decription

The Maxtang DXALN-10 industrial fanless PC, powered by the Intel® Alder Lake-N Series N100 processor, is designed for high-performance applications in industrial automation, surveillance, and motion control. Featuring Intel® UHD Graphics, this fanless embedded system supports dual displays for flexible visual setups. With up to 16GB of DDR4 memory, the DXALN-10 offers reliable computing for demanding tasks in harsh environments. Its passive cooling design ensures silent operation, while its wide operating temperature range of -20°C to 60°C guarantees stable performance even in extreme conditions.

Intel® Alder Lake-N Series N100

The DXALN-10 is powered by the Intel® Alder Lake-N Series N100 processor, offering 4 cores and 4 threads with a turbo frequency of up to 3.4GHz and 6MB Intel® Smart Cache for smooth multitasking and responsive data handling. With an ultra-low 6W TDP, it ensures excellent energy efficiency while supporting up to 16GB DDR4 memory and Intel® UHD Graphics, enabling reliable dual display outputs via HDMI and DP—ideal for industrial environments that demand both performance and efficiency.

Reliability and Durability

The DXALN-10 is built with a fanless passive cooling design, eliminating issues caused
by dust, noise, and vibration in industrial environments. By reducing moving parts and
potential failure points, the system achieves greater stability and extended lifecycle
expectations. Its rugged construction and wide operating temperature range (-20°C to 60°C)
ensure reliable performance in harsh conditions, making it ideal for applications
that demand continuous operation such as automation, inspection, and surveillance .

Versatile I/O Options

The DXALN-10 offers versatile I/O options, featuring 6 COM ports (RS232 with optional RS485), 2 USB3.2, 6 USB2.0, dual LAN (2.5GbE + 1GbE), HDMI and DP dual display outputs, and audio line-in/out. This comprehensive connectivity enables seamless integration with multiple devices, efficient data collection, and multi-display setups, making it ideal for factory automation, surveillance, transportation monitoring, and retail terminals .

Dual Display

The DXALN-10 supports dual displays via HDMI® and DisplayPort, making it ideal for monitoring multiple data streams or processes simultaneously.

Expand-ability

The DXALN-10 features M.2 slots with WiFi and Intel® CNVi support, providing flexible expansion and future-ready wireless connectivity.

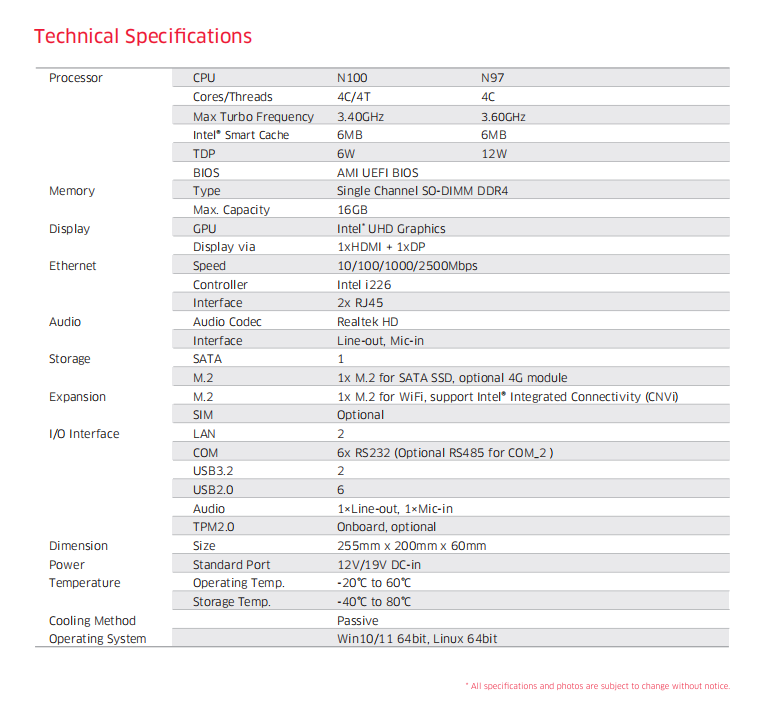

Technical Parameters

Specification

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads
