Intel^® "Gemini Lake J4125" Processor

As part of the Gemini Lake family under the collection of Celeron processor J series. The J4125 has 4 cores and 4 threads with a base frequency 2.00GHz, a burst frequency of 2.70 GHz, and a 4MB Cache, which takes advantage of process-level improvements to lower power-draw, bump up the CPU clock speeds. The integrated GPU is based on the Intel 9th Gen architecture, features up to 18 execution units, tuned for high-resolution displays via 2xHDMI^® outputs.

A "Next Unit of Computing"

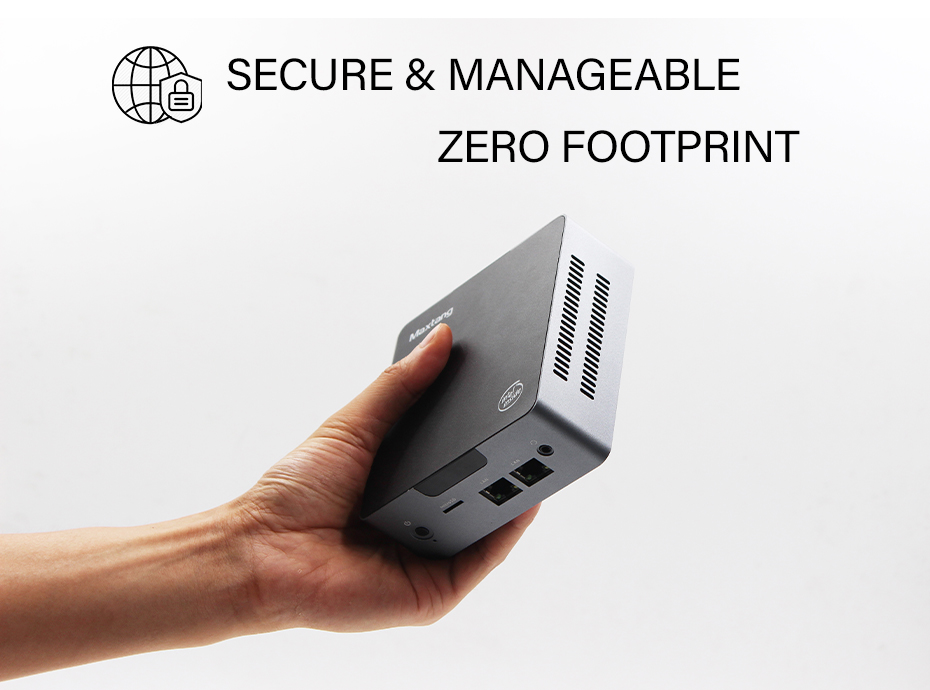

The MTN-GL50 is a small box-shaped computer
that fits on your hand, contains an entire system
crammed into its minuscule chassis.
Its exterior is made of aluminum alloy,
well on heat dissipation; its compact design
is great for space-saving.

Rich I/O Interfaces

Features 2RJ45 10/100/1000Mbps or 10/100Mbps ethernet controller,
SATA and M.2 for storage, addition M.2 for Wi-Fi/Bluetooth for expansion.
A rich I/O interface includes 5x USB3.0, 2xHDMI^®, SD card reader, CTIA with standard 12 DC-in carters most market’s requirements.

Built-in Wi-Fi

Fast wireless connectivity

Built-in Bluetooth

Data transmission convenient

Product description

The MTN-GL50 is a full-sized PC that fits on your hand, based on Intel^® Gemini Lake. The Gemini Lake SoCs features improved CPU cores over the previous generation, an enhanced media decoding/encoding engine, and a new display pipeline. Comparable to the full-size desktop PCs into the small form factor with a powerful processor, fast memory, and massive storage. LPDDR4 up to 8GB for its memory. Features 2RJ45 10/100/1000 Mbps Ethernet controllers, SATA and M.2 for storage, addition M.2 for WiFi and Bluetooth for expansion. A rich I/O interface includes 5x USB3.0, 2xHDMI^®, SD card reader, CTIA with standard 12V DC-in caters to most market’s requirements, great for space-saving.

Features

Intel^® Gemini Lake Processor
LPDDR4 for memory up to 8GB
Dual Display via 2x HDMI^®2.0
2x RJ45 10/100/1000Mbps Ethernet
Built-in Wi-Fi and Bluetooth
Compact design and low power consumption
Aluminum enclosure, ready to use

Technical Parameters

MTN-GL50 TS.png

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
