Product Description

compact embedded PC VHWL-30 Prodcut Description

The Maxtang VHWL-30 is a compact embedded PC powered by Intel® Whiskey Lake-U/Comet Lake-U processors, offering reliable performance in a fanless, space-saving design. With Intel® UHD Graphics, it’s ideal for multi-display embedded applications like industrial automation and digital signage. Featuring dual Gigabit Ethernet ports and M.2 SSD storage, the VHWL-30 is perfect for IoT solutions, edge computing, and embedded control systems. Its wide operating temperature range of -20°C to 60°C and rugged, fanless build make it an excellent choice     for reliable embedded systems in harsh environments and 24/7 operations.

Features

    Compact Embedded Pc VHWL-30 Features

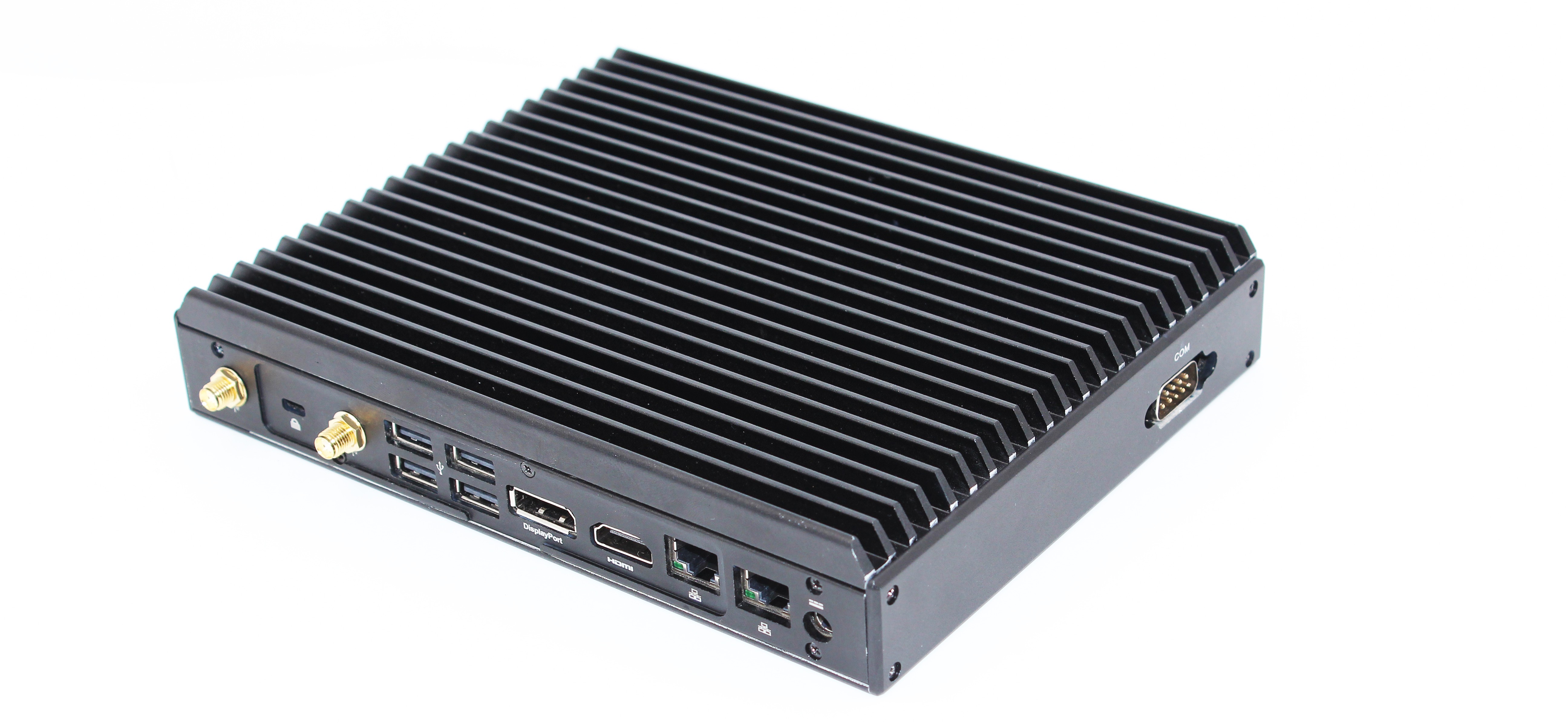

    VHWL-30 front picture.jpg
    • CPU: Intel® Whiskey Lake U/Comet Lake U Processor

    • Memory: Dual Channel SO-DIMM DDR4 up to 64GB

    • Display via: Intel® Integrated Graphics display via HDMI, DP, mini-HDMI

    • I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 4xUSB2.0, SIM

    • Ethernet: 10/100/1000Mbps

    • Storage: 1xM.2 for 2280 SSD, 1xM.2 for 2242 SSD/4G

    • Power: 19V DC-in

Intel® Whiskey Lake/Comet Lake U Processor

Intel® Whiskey Lake/Comet Lake U Processor

The Intel® 8th Gen Whiskey Lake and 10th Gen Comet Lake U processors bring integrated Gigabit Wi-Fi to mini PCs, delivering up to 12× faster wireless connectivity. Compared with the previous generation, they offer up to 2× higher performance with noticeable gains in office productivity, multitasking, web browsing, and light content creation—ensuring efficient and reliable computing in embedded systems.

Multiple Displays

Multiple Displays

The VHWL-30 features DP+HDMI®+mini HDMI®, supporting multiple displays for enhanced productivity. It allows users to run multiple programs simultaneously across different screens,reducing the need to switch between full-screen windows and enabling a faster workflow. This triple-display capability also makes the system an excellent choice for digital signage, kiosks,and other multi-screen applications.

Rich I/O Interfaces

Rich I/O Interfaces
Features two RJ45 10/100/1000Mbps ethernet controller,  2x M.2 for storage, addition M.2 for Wi-Fi/Bluetooth and SIM for expansion.  A rich I/O interface includes 2x USB3.2, 4xUSB2.0, 2xHDMI®, 1xDP, and COM optional with standard 19V DC-in carters most market's requirements.


Built-in Wi-Fi

Built-in Wi-Fi
Fast wireless connectivity


Built-in Buletooth

Built-in Bluetooth
Data transmission convenient

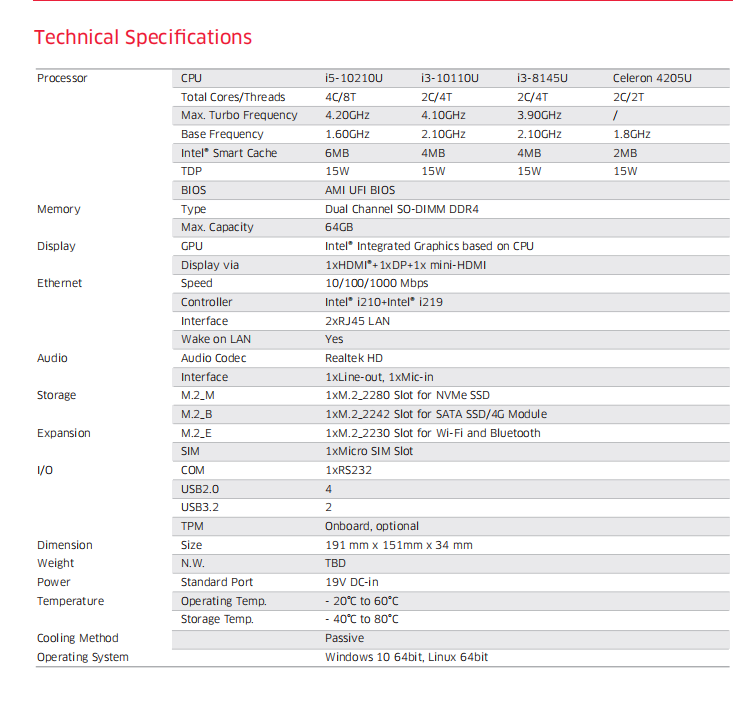

Technical Parameters

Compact Embedded Pc VHWL-30 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What expansion interfaces are available? (GPIO, PCIe, M.2, Mini-PCIe)
    It supports M.2 expansion only, including:
    1×M.2 for 2280 NVMe SSD;
    1×M.2 for 2242 SATA SSD/4G;
    1×M.2 for WiFi;
    No GPIO or PCIe expansion listed.
  • Can the memory and storage be upgraded?
    Yes, both the memory and storage are upgradeable according to user requirements; detailed information on the maximum supported capacity can be found in the datasheet.
  • What operating systems are supported?
    It supports Windows 10 64-bit and Linux 64-bit.
  • What application scenarios is VHWL-30 suitable for?
    It is suitable for industrial automation, digital signage, and embedded systems such as vending machines, kiosks, and robots.
