Compact Fanless Pc-VBYT-31

VBYT-31
Product Description

compact embedded PC VBYT-31 Product Description

The Maxtang VBYT-31 is a compact embedded PC powered by Intel® Bay Trail processors, designed for industrial embedded systems. Featuring Intel HD Graphics, it's ideal for multi-display embedded applications such as industrial automation and digital signage. The VBYT-31 includes six Gigabit Ethernet ports, making it perfect for network-intensive embedded applications like IoT solutions and edge computing.

Features

    compact embedded PC VBYT-31 Features

    compact embedded PC VBYT-31 front picture.jpg

    • CPU: Intel Bay Trail Processors

    • Memory: 1x SO-DIMM DDR3L up to 8GB

    • Display via: Intel HD Graphics display via VGA

    • I/O Ports: 6xLAN, 1x COM, 4xUSB2.0.

    • Ethernet: 10/100/1000Mbps

    • Storage: SATA, mSATA

    • Power: 12V DC-in/9-36V Optional

High-Performance Processing

High-Performance Processing
Powered by the Intel® Bay Trail platform, the VBYT-31 delivers a balance of performance and energy efficiency. Built on the advanced 22nm low-power tri-gate transistor process with the Silvermont architecture, it achieves up to 50% higher performance per clock compared to the previous generation. Enhanced pipeline utilization, improved branch prediction, larger buffers, and optimized decoders all contribute to smoother multitasking and responsive performance, while maintaining excellent power efficiency for fanless, long-term embedded applications.


6LAN Security Appliances

6LAN Security Appliances
VBYT-31 includes six 1-Gigabit Ethernet ports, mini PCIe for wireless, intended to provide a new hardware architecture for the next generation of network security appliances. It is engineered for today's fast Internet connections, delivers enterprise-level security to small and midsize businesses.

Comprehensive I/O Interface

Comprehensive I/O Interface
Features 6xRJ45 10/100/1000Mbps, ethernet controller; SATA3.0, mSATA, for storage, mini PCIe for Wi-Fi and SIM for expansion. Other I/O interface includes 4xUSB2.0, 1x COM, VGA for display and standard 12V DC-in, carters most market's requirements.
Display via VGA
Integrated Intel® HD Graphic card, the VGA port provides strong support to digital display equipment.
Compact Fanless Embedded PC
Ideal for quiet, space-constrained environments, easy to deploy and run silently with low power consumption.

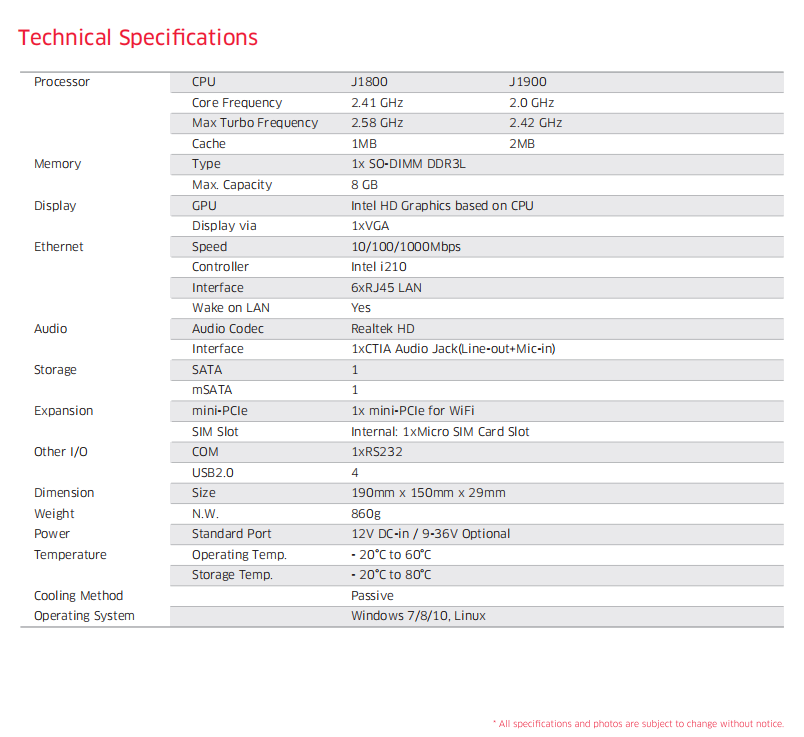

Technical Parameters

Compact Embedded Pc VBYT-31 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What board or chassis size does it follow? (3.5", Mini-ITX, etc.)
    It uses a compact custom chassis, sized 191 × 151 × 34 mm, not based on 3.5" or Mini-ITX standards.
  • Does it support fanless cooling?
    Yes. It features a passive fanless cooling design, suitable for quiet or dust-prone environments.
  • What operating systems are supported?
    It supports Windows 7/8/10 and Linux.
  • What application scenarios is VBYT-31 suitable for?
    With its fanless design, compact form factor, and multiple LAN ports, it is suitable for network appliances, industrial automation, gateways, routers, and embedded systems.
Downloads
Drivers Audio_Realtek_ALC662 Drivers LAN_Intel_1.0GbE Drivers Intel Bay Trail Series Datasheet_VBYT-31
