Compact Fanless Pc-VHFP-30

VHFP-30
Product Description

Compact Embedded PC VHFP-30 Product Description

The Maxtang VHFP-30 is a high-performance compact embedded PC powered by AMD Ryzen™ Quad-Core processors, perfect for industrial embedded systems. With up to 32GB of DDR4 memory and AMD Radeon Vega 8 graphics, it’s designed for multi-display embedded applications like industrial automation, digital signage, and edge computing solutions. Its fanless design, wide operating temperature range of -20°C to 60°C, and rugged build make the VHFP-30 ideal for reliable embedded computing in harsh environments and 24/7 operations..

Features

    Compact Embedded PC VHFP-30 Features

    VHFP-30 front picture.jpg

    • CPU: AMD Ryzen™ Quad-Core Processors

    • Memory: Dual Channel SO-DIMM DDR4 up to 32GB

    • Display via: AMD Radeon Vega 8 Graphics via DP, HDMI®

    • Ethernet:10/100/1000Mbps Ethernet

    • I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 4xUSB2.0, SIM

    • Storage: 1xM.2 for 2280 SATA SSD, 1xM.2 for 2242 SSD/4G

    • Aluminum enclosure, Ready to use

AMD® Ryzen™ Quad-Core Processor

AMD® Ryzen™ Quad-Core Processor
The AMD® Ryzen™ Embedded V1000 processor family brings together the breakthrough performance of the pioneering AMD® “Zen” CPU and “Vega” GPU architectures in a seamlessly integrated SoC solution that sets a new standard in processing power for next-generation embedded designs.


Dual Displays

Dual Displays
The VHFP-30 features DP+HDMI®, supports dual display, makes it far easier and faster to use multiple programs simultaneously. Instead of having to switch between full-screen windows, the second program can be put on the second monitor making for fewer clicks and faster workflow.


Rich I/O Interfaces
Features two RJ45 10/100/1000Mbps ethernet controller, 2x M.2 for storage, addition M.2 for Wi-Fi/Bluetooth for expansion.  A rich I/O interface includes 2x USB3.2, 4xUSB2.0, 1xHDMI®, 1xDP, and USB-C with standard 12V DC-in carters most market’s requirements.



Built-in Wi-Fi
Fast wireless connectivity


Built-in Bluetooth

Built-in Bluetooth
Data transmission convenient

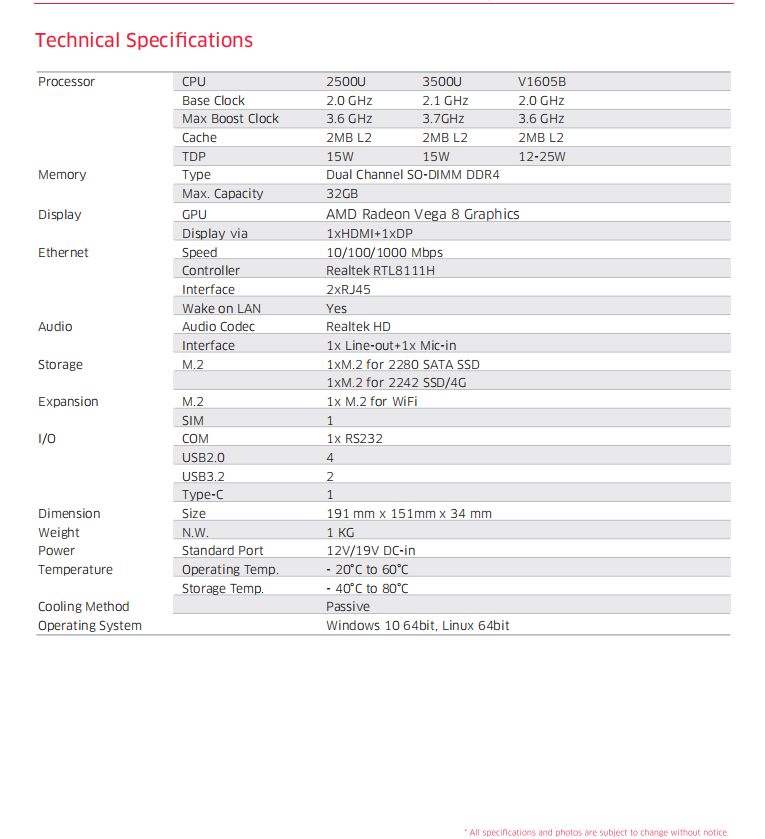

Technical Parameters

Compact Embedded Pc VHFP-30 Specification


HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

FAQ

FAQ
  • What board or chassis size does it follow?
    The VHFP-30 uses a custom compact chassis, measuring 191mm x 151mm x 34mm
  • Is it suitable for enclosed or space-limited environments?
    Yes, its small form factor and fanless design make it ideal for space-constrained environments.
  • What external devices can it interface with?
    It can interface with PLC controllers, network devices via LAN ports, sensors, and other embedded systems through its USB and COM ports.
  • What application scenarios is VHEHL-30 suitable for?
    It is suitable for industrial automation, digital signage, and embedded systems like vending machines, kiosks, and robots.
Downloads
User Manual_VHFP-30 Drivers Audio_Realtek_ALC662 Drivers Audio_Realtek_ALC897 Drivers LAN_Realtek_1.0GbE Drivers AMD V1605B Drivers AMD 2500U Datasheet_VHFP-30
