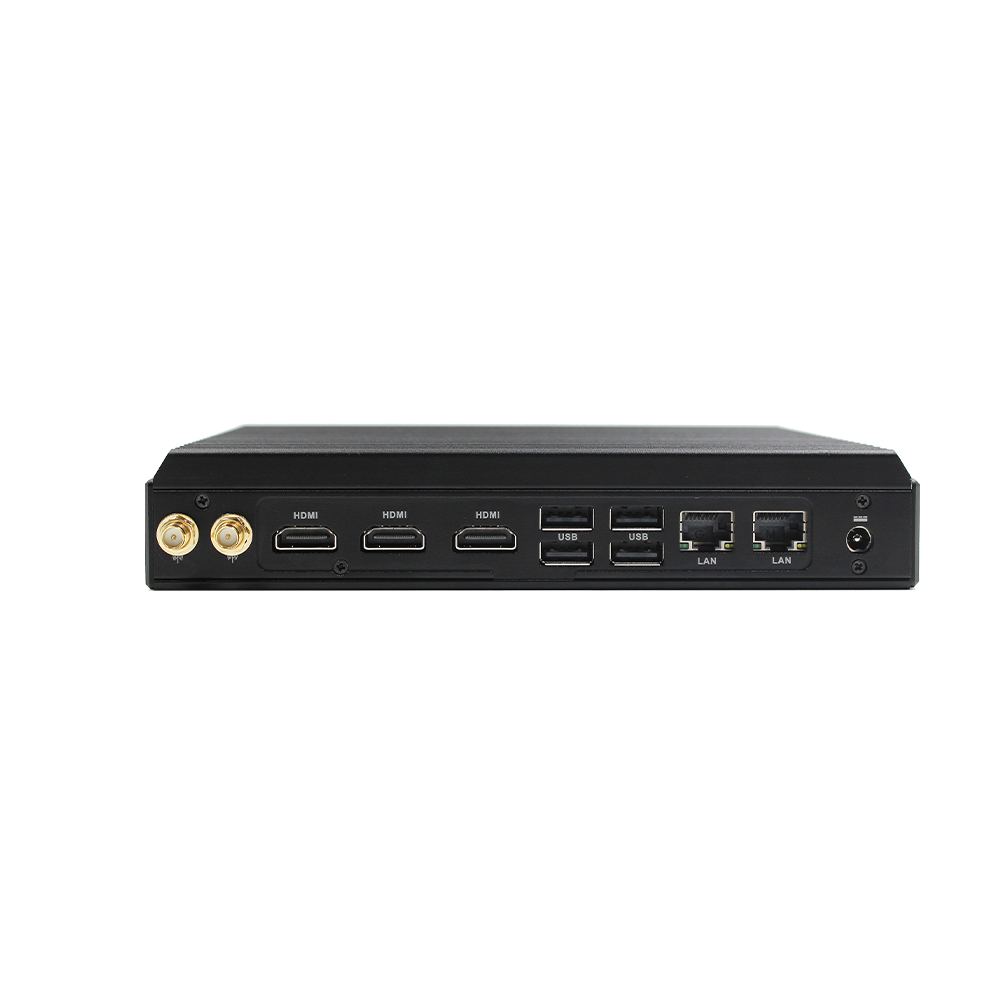

The VHEHL-30 is an industrial fanless embedded PC built on the Intel® Elkhart Lake J6412 processor. Featuring triple HDMI 2.0 display output, dual Gigabit LAN, rich I/O with COM and SIM slot, and passive cooling rated from -20°C to 60°C, it is designed for digital signage, industrial automation, and edge computing deployments.

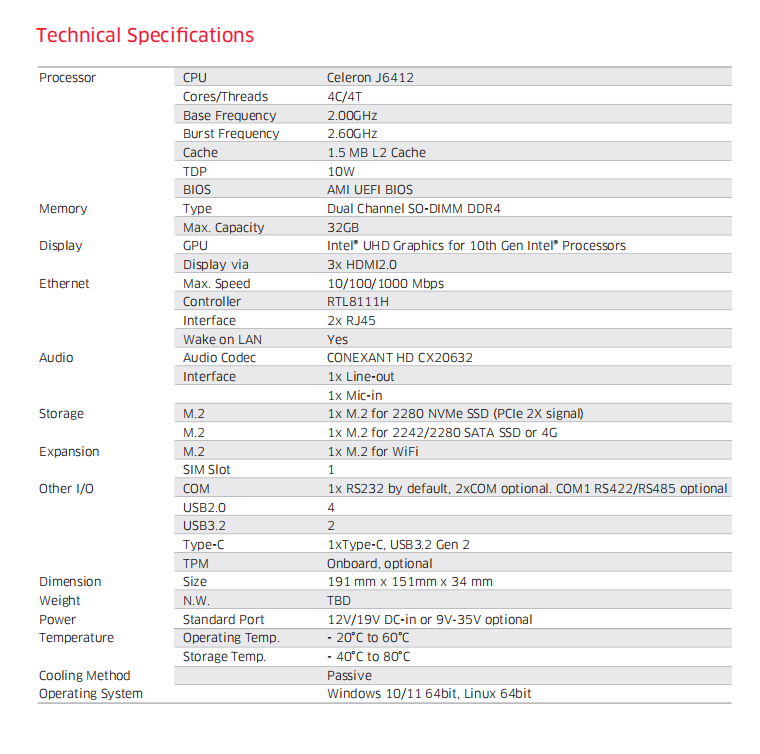

CPU: Intel® Elkhart Lake Celeron J6412 Processor
Memory: Dual Channel SO-DIMM DDR4 up to 32GB
Display via: Intel® Integrated Graphics display via 3xHDMI®2.0
I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 4xUSB2.0, SIM, Type-C
Ethernet: 10/100/1000Mbps
Storage: M.2 for NVMe SSD(PCIe2X Signal),M.2 for SATA SSD/4G
Power: 12V/19V DC-in or 9V~35V optional

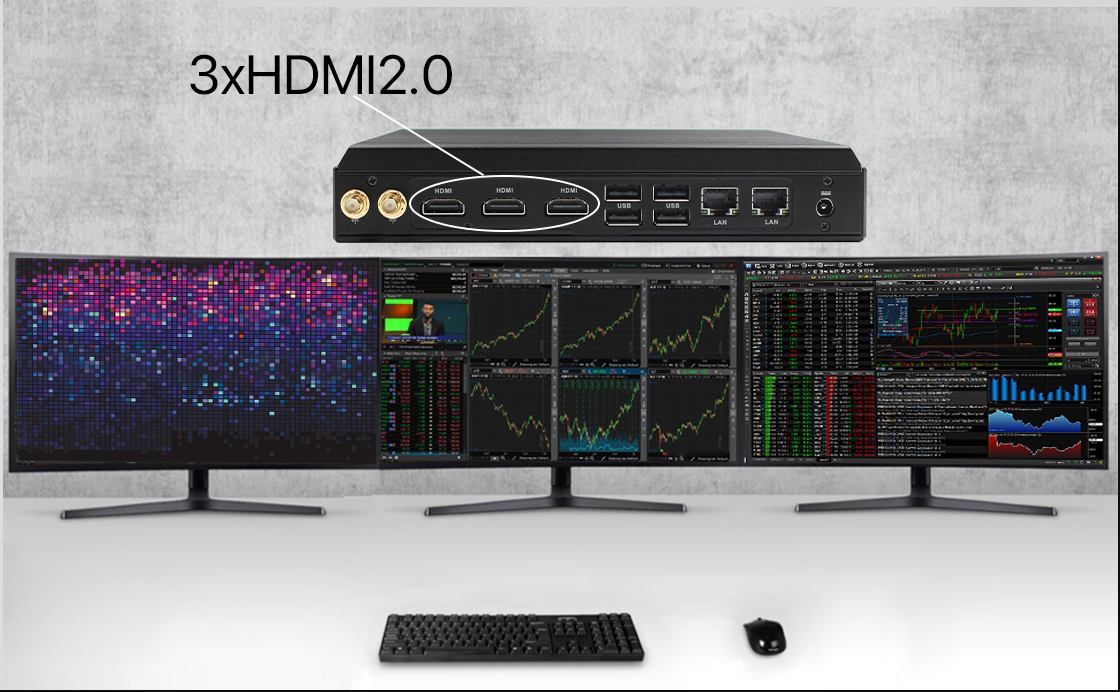

The VHEHL-30 fanless embedded PC supports three fully independent HDMI 2.0 display outputs, making it one of the most capable compact embedded PCs for multi-screen deployments. Whether driving three digital signage screens in a retail environment, operating a multi-zone HMI panel on the factory floor, or powering triple displays at a self-service kiosk — the VHEHL-30 delivers stable, simultaneous visual output from a single compact unit with no active cooling required.
The VHEHL-30 provides the rich I/O that industrial embedded applications demand. Dual Gigabit Ethernet supports network redundancy and multi-network deployments. Seven USB ports cover peripheral connectivity, while the RS232 COM port (configurable to RS422/RS485) enables direct communication with PLCs, sensors, and industrial equipment. An M.2 slot for 4G modules combined with a SIM slot adds wireless WAN capability — making the VHEHL-30 a fully self-contained embedded fanless computer for connected edge deployments.
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.
*All other trademarks or registered trademarks are the property of their respective owners and are recognized.
