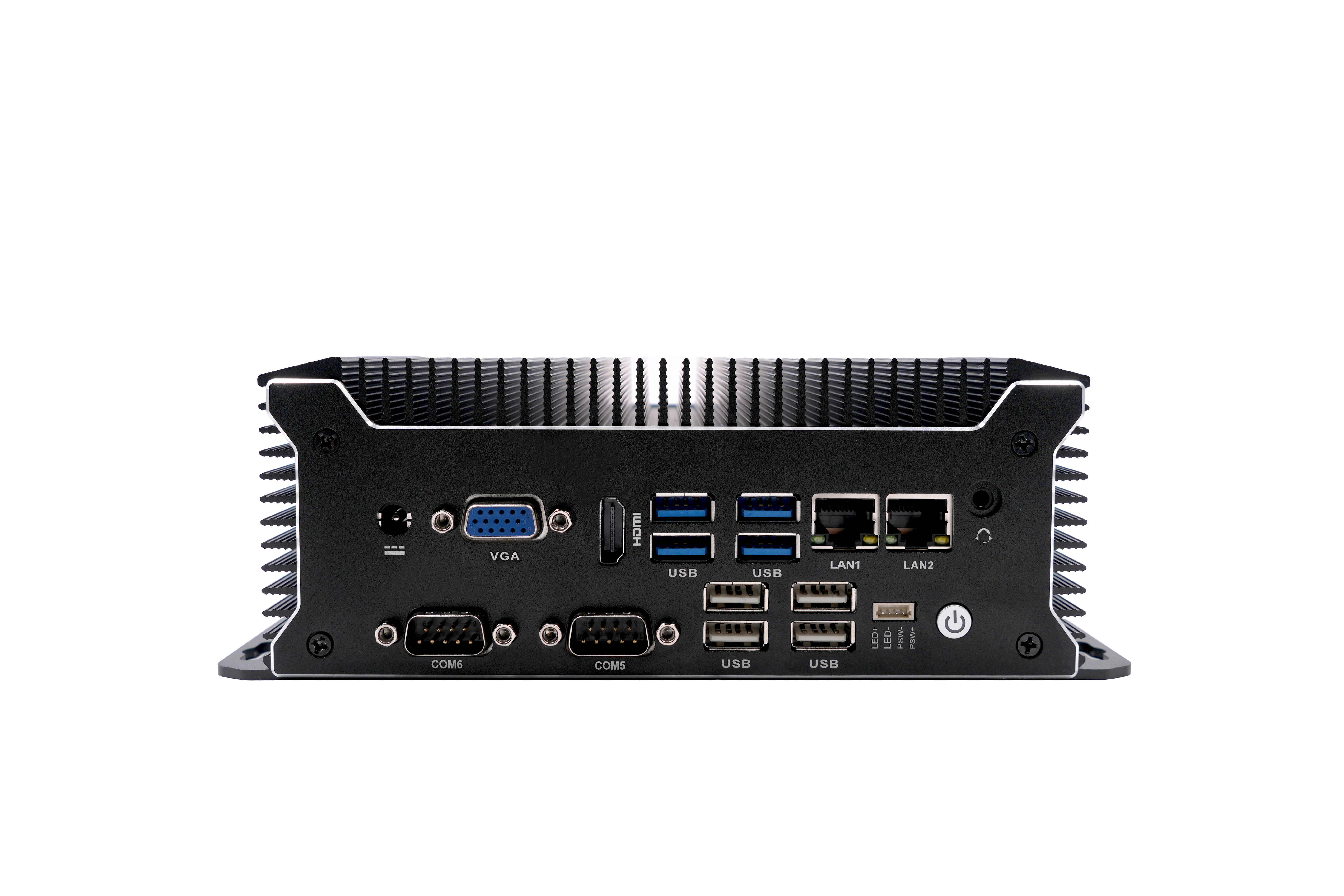

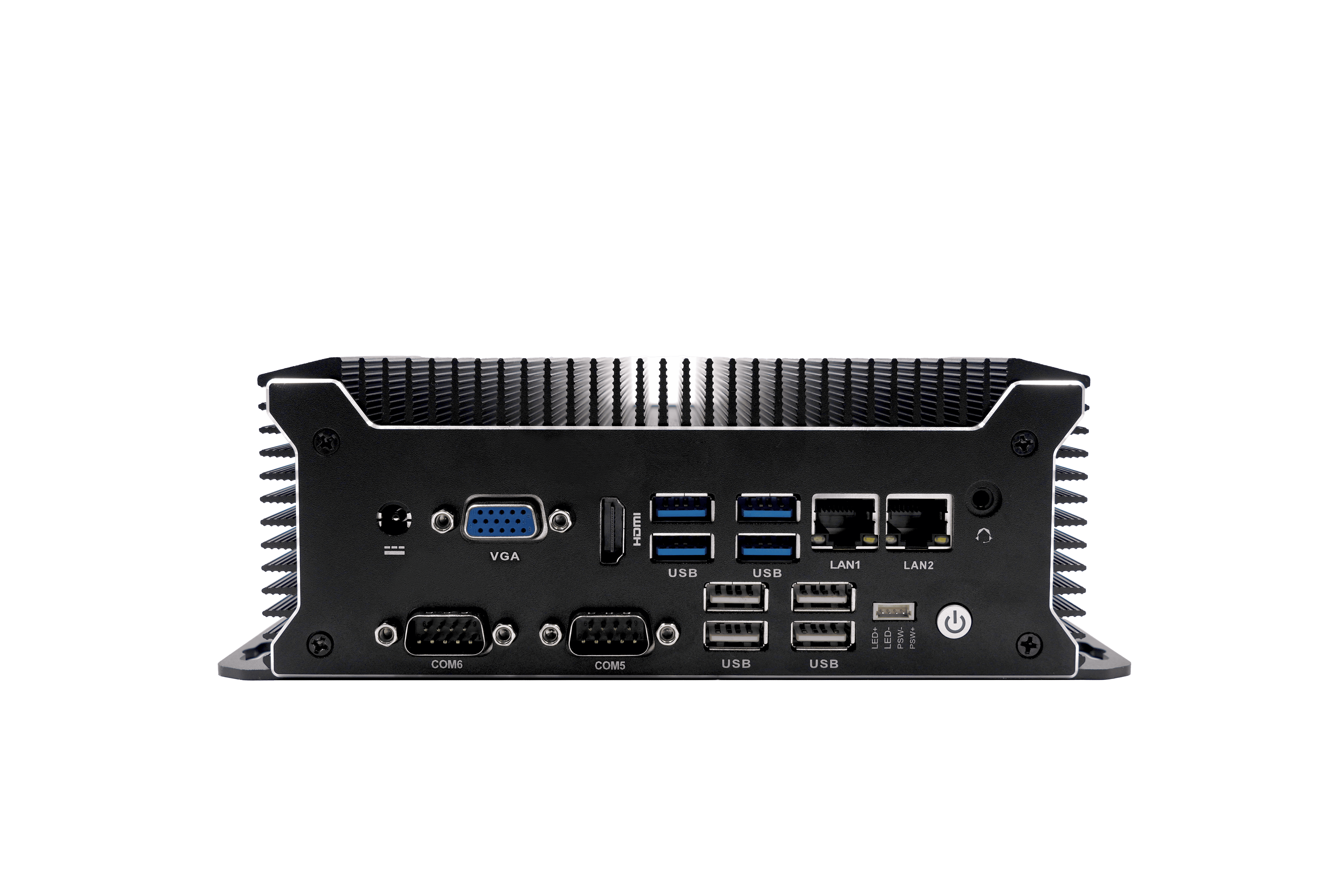

The Maxtang IXH-KL35 is a fanless embedded industrial PC powered by Intel® Skylake/Kaby Lake-R processors, supporting up to 32GB DDR4 dual-channel memory and Intel® UHD/HD Graphics via HDMI and VGA. It delivers stable performance and energy efficiency for industrial applications. Equipped with a comprehensive I/O interface—including dual Gigabit LAN, six COM ports (RS232/RS485), four USB 3.2, four USB 2.0, SATA3.0, mSATA, and M.2 expansion for Wi-Fi/4G—the IXH-KL35 provides versatile connectivity to meet the demands of factory automation, machine vision, IoT gateways, and digital signage.
Built for harsh industrial environments, the IXH-KL35 features a rugged fanless aluminum enclosure, wide 9V–35V DC input, and industrial-grade operating temperature range (-20°C to 60°C). With dust-resistant construction, reliable long lifecycle design, and cost efficiency, it is an ideal solution for smart transportation, edge computing, industrial control, and intelligent monitoring systems. The IXH-KL35 combines powerful computing, flexible expansion, and robust reliability to support diverse and demanding industrial deployments.
CPU: Intel® Skylake/Kabylake-R Processor
Memory: Dual Channel SO-DIMM DDR4 up to 32GB
Display: Integrated Intel® Graphics display via HDMI+VGA
Ethernet: 10/100/1000Mbps
Expansion: M.2 for WiFi, Nano SIM Slot

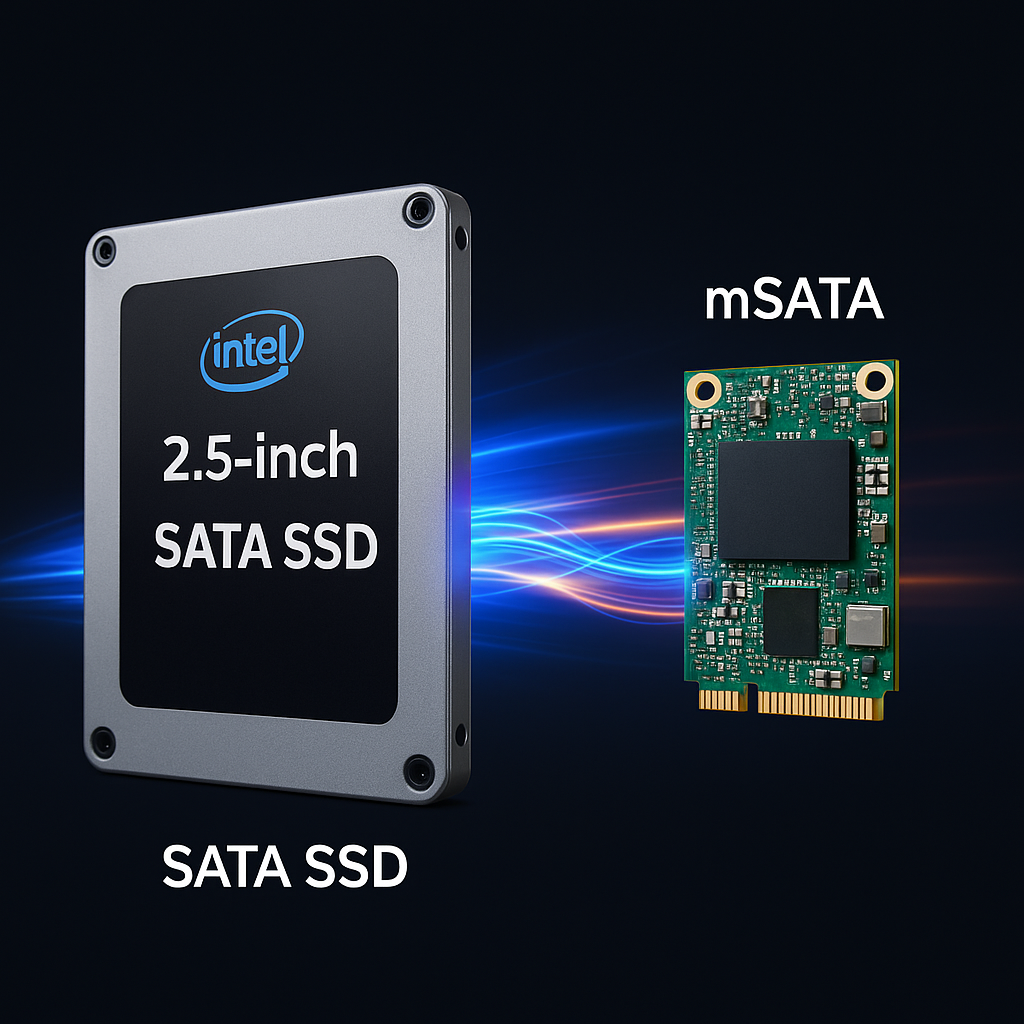

Storage: SATA3.0 FPC, mSATA
Power: 9V-35V
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Datasheet_IXH-KL35
