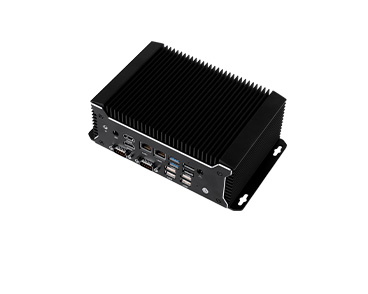

IXH-FP535 Industrial Fanless PC | AMD Ryzen Embedded R2314

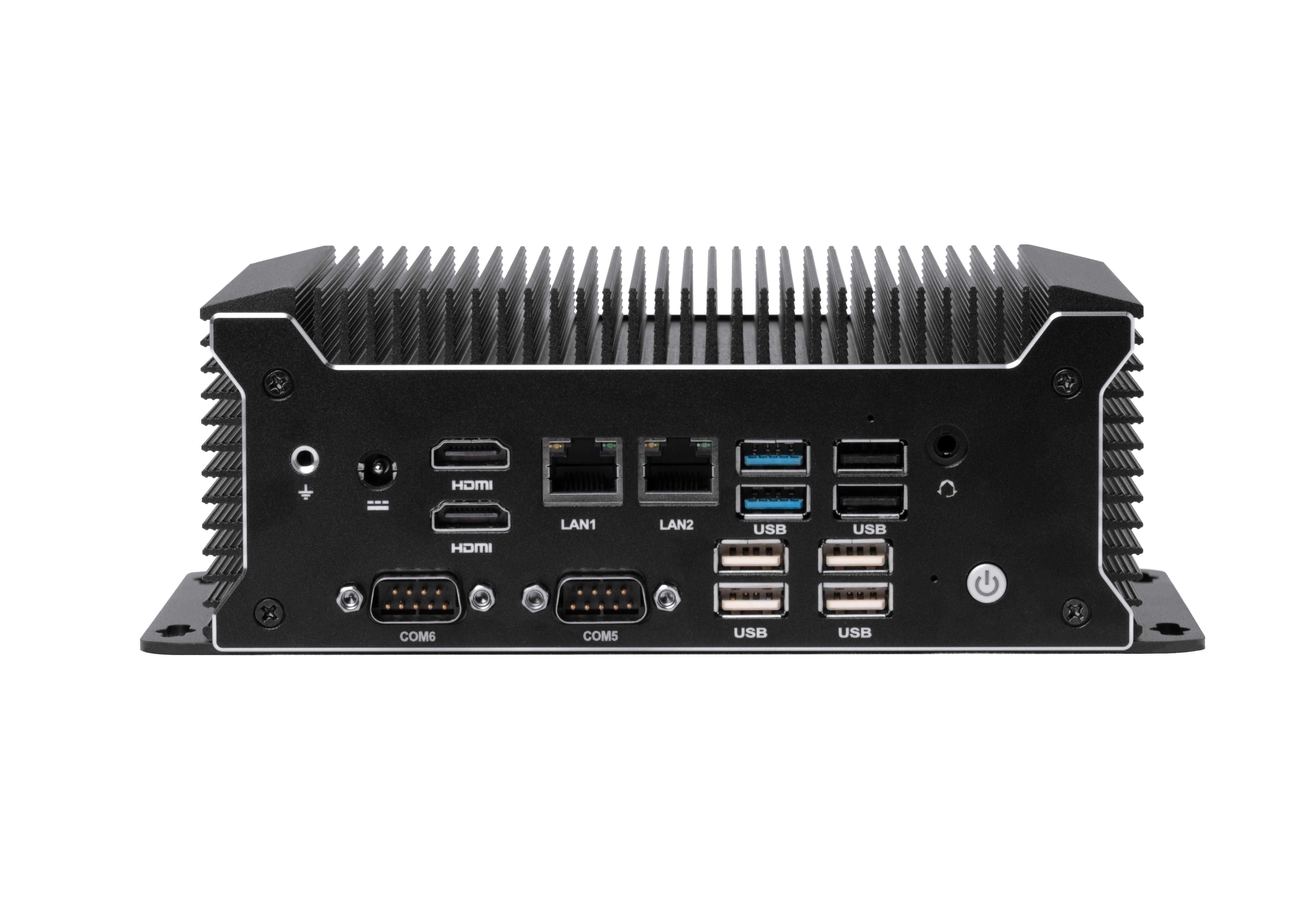

Industrial Fanless PC IXH-FP535 Prodcut Description

The IXH-FP535 is a fanless industrial computer powered by the AMD Ryzen™ Embedded R2314 Processor, offering 4 cores and 4 threads with a base frequency of 2.10GHz and a boost frequency of up to 3.50GHz. It features AMD Radeon™ Graphics and supports dual HDMI 2.0 and eDP/LVDS display outputs, making it ideal for multi-display digital signage, industrial control, and edge computing applications. With support for up to 64GB of dual-channel DDR4 memory, and multiple storage expansion options such as mSATA, M.2 for SSD, 4G/5G, and Wi-Fi, the IXH-FP535 provides flexibility for various embedded and industrial solutions. Equipped with a wide operating temperature range of -20°C to 60°C, it ensures reliable performance in harsh environments

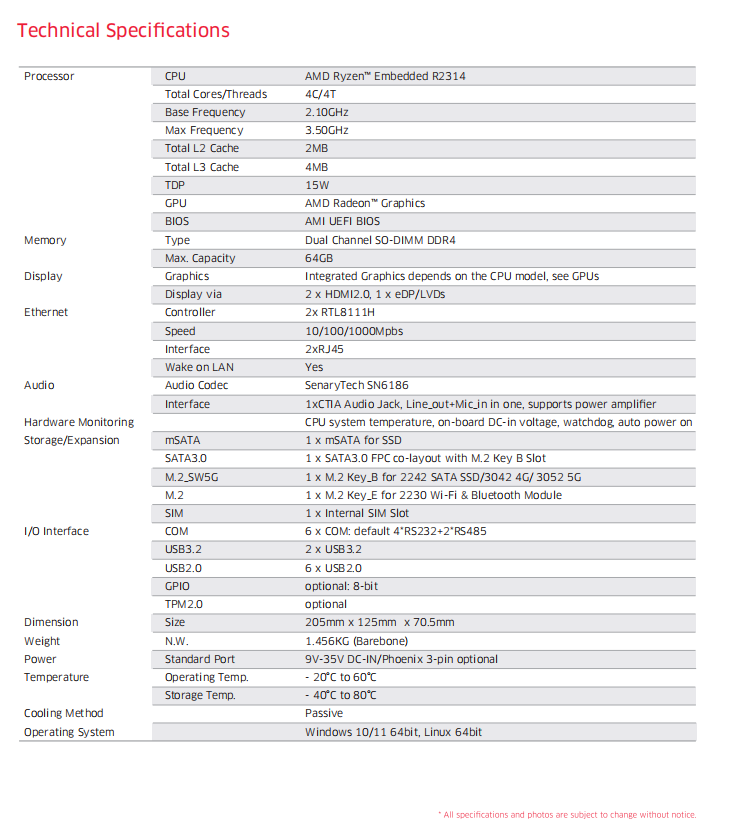

Industrial Fanless PC IXH-FP535 Futures

CPU: AMD Ryzen™ Embedded R2314 Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
GPU: AMD Radeon™ Graphics, displays via 2xHDMI, eDP/LVDs
Ethernet: 2xRTL8111H, 10/100/1000Mbps
Storage: mSATA, M.2 Key B for SSD/4G/5G+SATA FPC(Co-layout. Optional)
Expansion: M.2 Key E for WiFi & Bluetooth
9V-35V DC-IN/Pheonix 3-pin optional

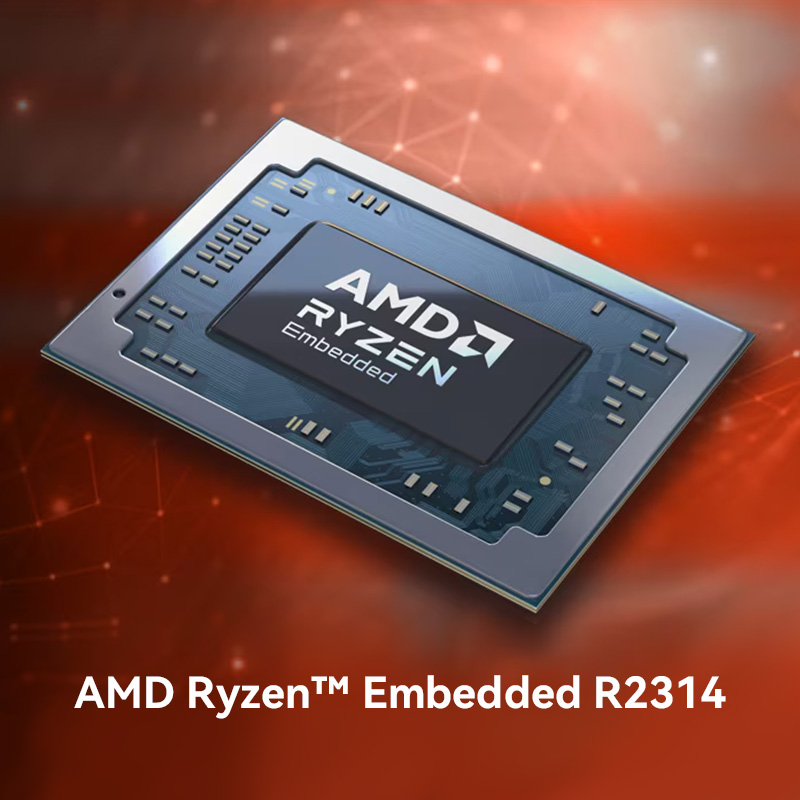

AMD^® Ryzen Processors

Powered by the AMD Ryzen™ Embedded R2314 processor, the IXH-FP535 delivers quad-core computing and integrated Radeon™ Graphics performance within a compact, fanless industrial system. This powerful configuration enables stable and efficient operation for AI-driven applications such as object recognition, predictive maintenance, and real-time monitoring — ensuring the entire system performs reliably across industrial automation and digital display environments.

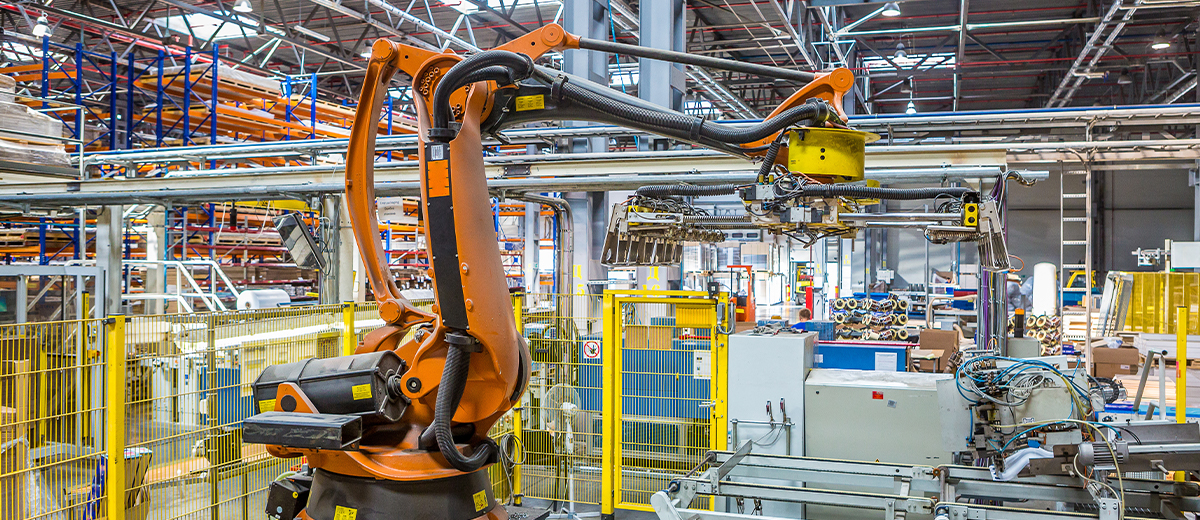

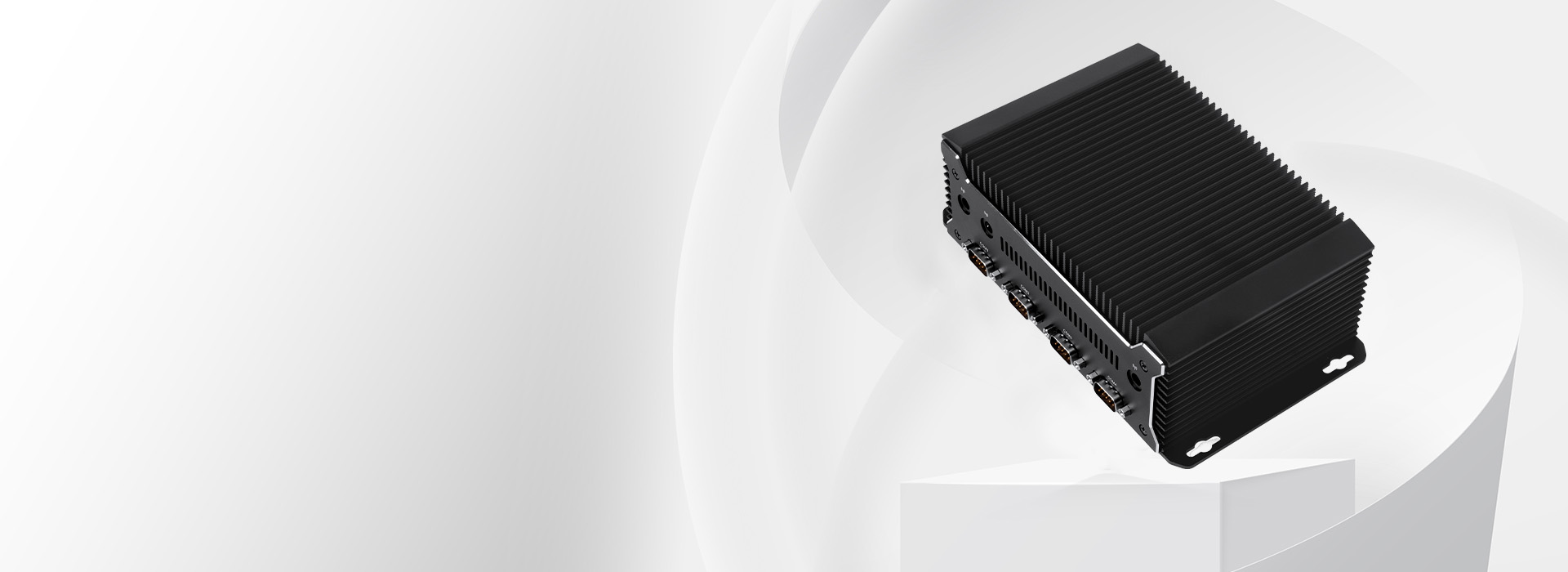

Ready-to-Deploy Industrial Solution

The IXH-FP535 is a compact, fanless industrial computer built for
immediate deployment. Featuring a full aluminum chassis for
efficient heat dissipation and silent operation, it integrates high-
performancecomputing, storage, and rich I/O within a single
system—no assembly required. Simply power on and connect
peripherals to start working. Ideal for industrial
automation, machine vision inspection, smart retail kiosks, and
digital signage control, the IXH-FP535 delivers plug-and-play
reliability and long-term stability across diverseindustrial and
edge computing environments.

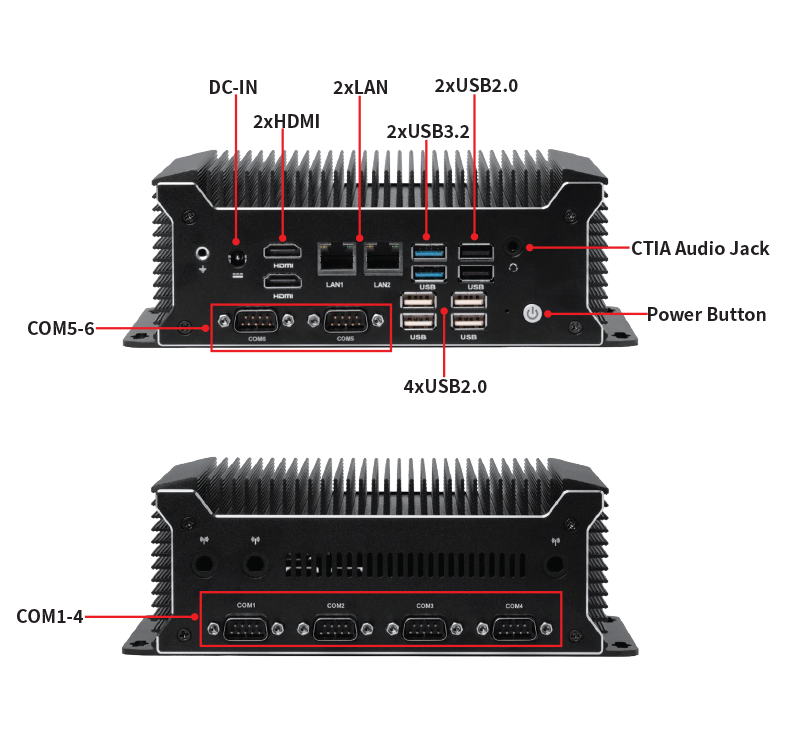

Rich I/O Connectivity

The IXH-FP535 fanless industrial computer delivers rich I/O connectivity designed for flexible system integration and reliable industrial performance. Equipped with dual Gigabit LAN ports, six COM ports (4×RS232, 2×RS485), and up to eight USB ports, it supports a wide range of peripheral and control devices. Dual HDMI 2.0 and eDP/LVDS interfaces enable multi-display output up to 4K resolution, making it ideal for digital signage, automation control, and embedded system applications. With additional features such as TPM 2.0, watchdog timer, and wide 9–35 V DC input, this embedded platform ensures secure, stable, and continuous operation across diverse industrial and edge computing environments.
