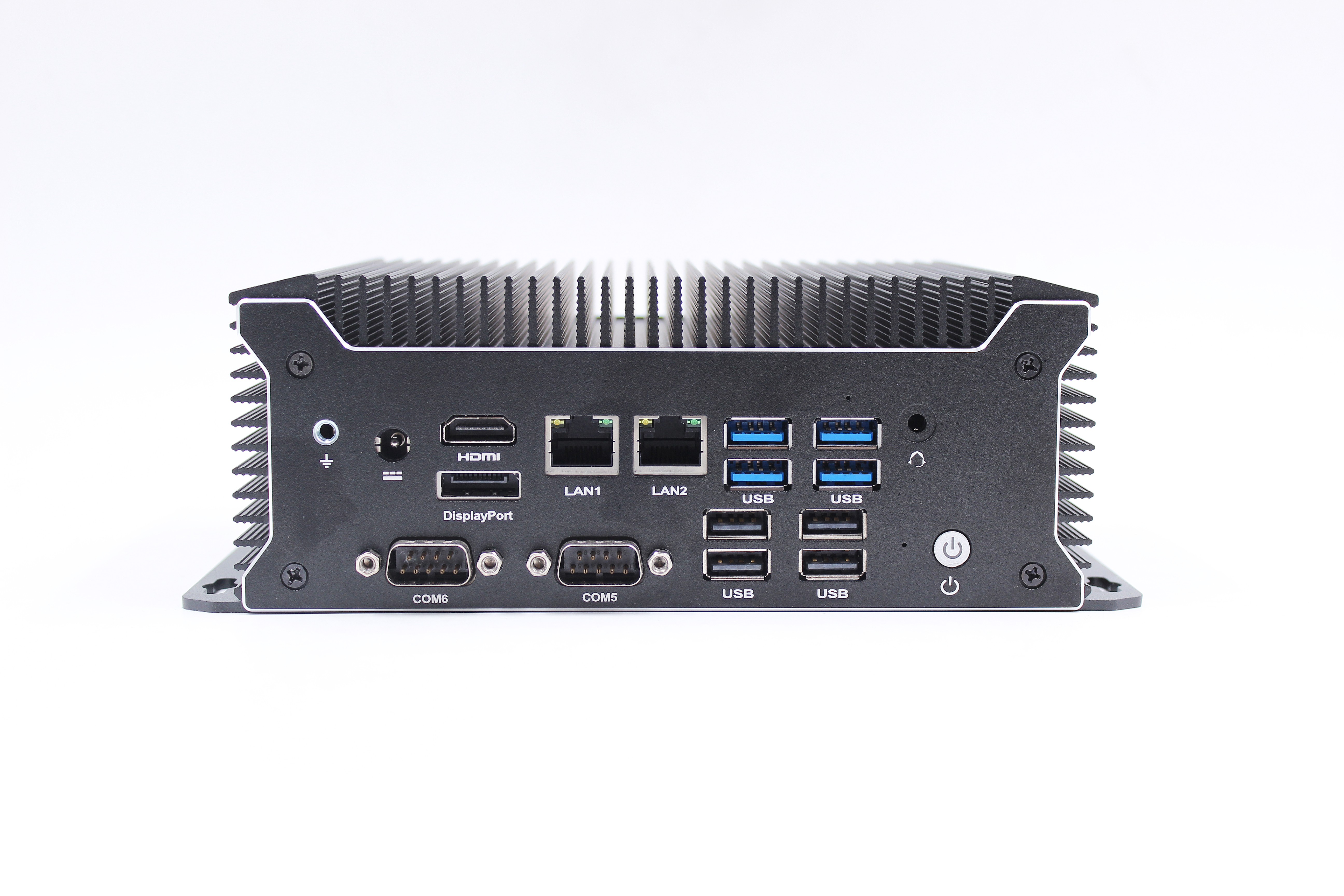

IXH-ALN35 is a industrial PC powered by the Intel® Alder Lake-N processors (Core i3-N305/N97), offering up to 8 cores, 8 threads, 6MB cache, and turbo frequencies up to 3.80GHz. It supports up to 16GB DDR4 memory, features dual display outputs (HDMI 2.0 + DP), and provides a versatile I/O interface with dual Gigabit LAN, six COM ports (RS232/RS485), eight USB ports, GPIO, SATA, mSATA, and M.2 expansion. With its rugged aluminum fanless enclosure, wide 9–35V DC input, and -20°C to 60°C operating range, the IXH-ALN35 ensures stable and energy-efficient performance in harsh environments.
Engineered for a wide range of industrial applications, the IXH-ALN35 delivers reliability, scalability, and seamless integration across diverse scenarios. From industrial automation and IoT gateways to digital signage, healthcare devices, and smart retail solutions, it provides the computing power, durability, and connectivity required for modern edge computing and embedded system deployments.
CPU: Intel® Alder Lake-N Series Processor
Memory: Single Channel SO-DIMM DDR4 up to 16 GB
Display: Intel® Integrated Graphics, display via HDMI® +DP
Ethernet: 10/100/1000Mbps
Storage: SATA3.0, mSATA
Expansion: M.2 for Wi-Fi
Power: 9V-35V DC input, Phoenix input optional
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Datasheet_IXH-ALN35
