Industrial Pc-IXH-AL35 V2.0

IXH-AL35 V2.0
Product Description

Industrial Fanless PC IXH-AL35 V2.0 Product description

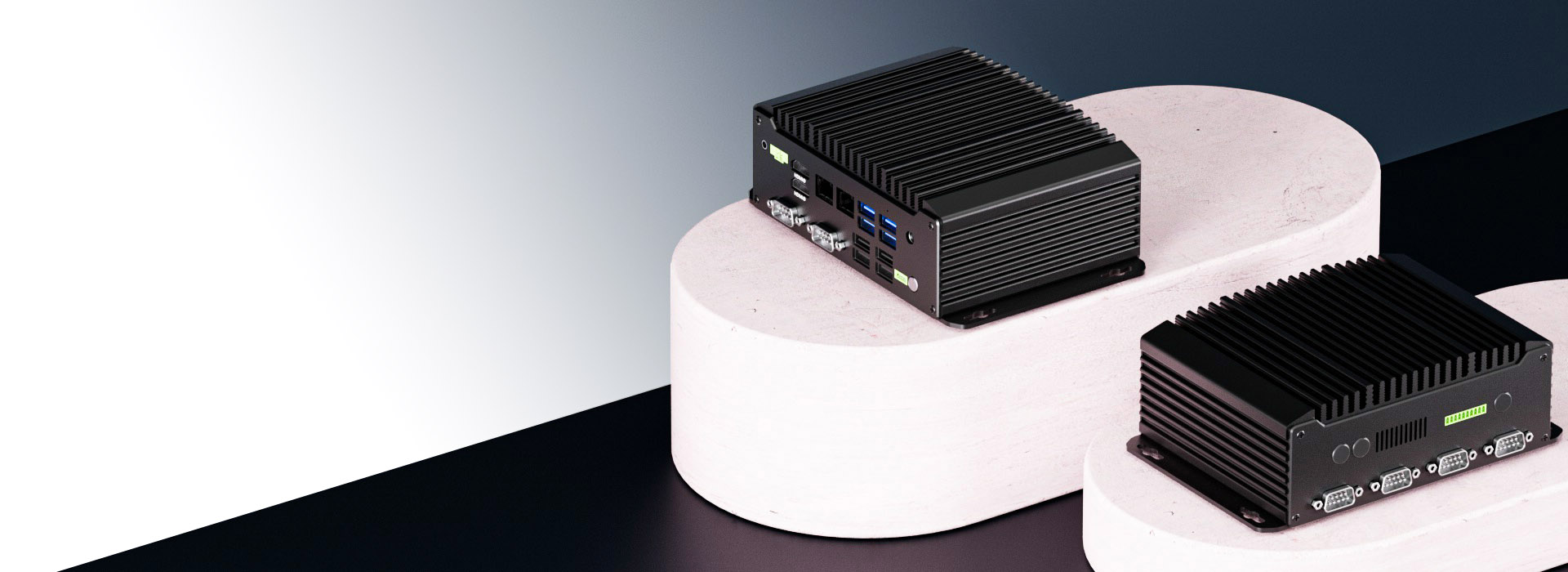

IXH-AL35V2.0 is a industrial fanless PC designed for reliable edge computing and embedded applications. Powered by Intel® Alder Lake U / Raptor Lake U series processors, it delivers efficient multitasking performance, stable 24/7 operation, and flexible connectivity for a wide range of industrial scenarios. With its rich industrial interface design, passive cooling structure, wide 9–36V DC input, and support for diverse peripheral and expansion requirements, the IXH-AL35V2.0 is well suited for industrial automation, transportation, machine vision, intelligent control, and other demanding embedded environments.

Features

    Industrial Fanless PC IXH-AL35 V2.0 Features

    IXH-AL35 V2.0 Front Picture.jpg

    • CPU:Intel® Alder Lake/Raptor Lake U Processor

    • Memory: Onboard DIMM DDR5, 8GB/16GB

    • Display: Integrated Intel® Graphics, display via 2xHDMI2.0

    • Ethernet: 10/100/1000Mbps

    • Storage  Expansion: SATA FPC, M.2 Key B Slot for SATA SSD/4G, M.2 Key M for NVMe SSD, M.2 Key E for Wi-Fi BT, UFS Flash optional

    • Power: 9V-36V (2Pin DC-IN Phoenix Connector)

Intel® Alder Lake U / Raptor Lake U Series processors

Intel® Alder Lake U / Raptor Lake U Series processors
Powered by Intel® Alder Lake U / Raptor Lake U Series processors, the Maxtang IXH-AL35V2.0 delivers efficient multitasking, responsive computing, and reliable performance for industrial edge applications. With its hybrid core architecture, onboard LPDDR5-5200 memory, and Intel® Smart Cache, it provides the speed and stability required for industrial automation, transportation systems, machine vision, and intelligent control environments.

Wide-Range Applications

Wide-Range Applications
IXH-AL35V2.0 is built for a wide range of industrial applications, combining efficient Intel® Alder Lake U / Raptor Lake U processing with a compact fanless design for reliable 24/7 operation. With dual Intel® i210 Gigabit LAN, 6 COM ports, dual HDMI 2.0, 8 USB ports, GPIO, and flexible M.2 expansion, it is well suited for industrial automation, transportation systems, machine vision, intelligent control, IoT gateways, smart edge devices, and digital signage. Supporting a wide 9–36V DC input and an operating temperature range of -20°C to 60°C, the IXH-AL35V2.0 delivers stable performance, long-term reliability, and seamless connectivity in demanding industrial environments.

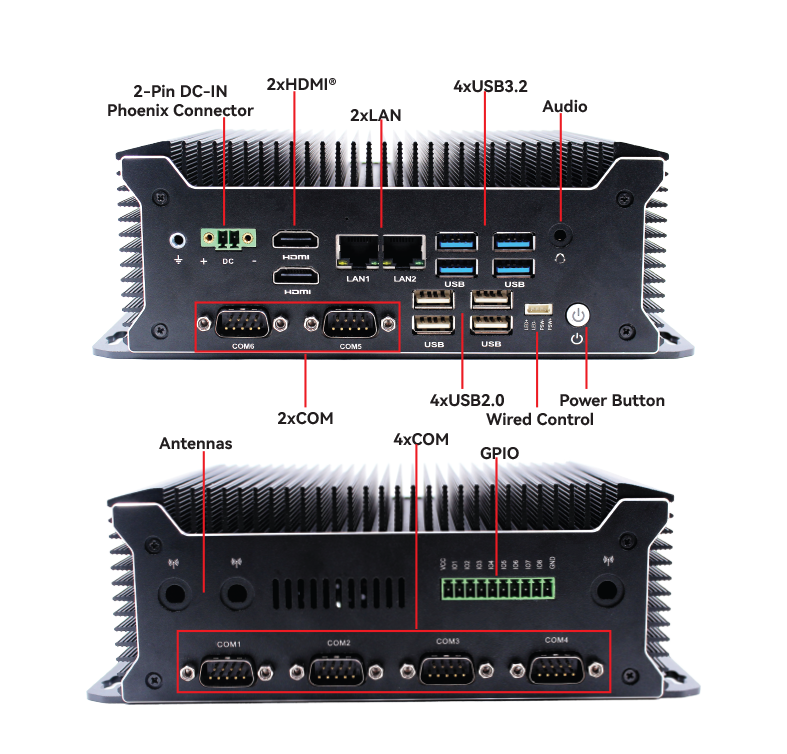

Versatile I/O Interface

Versatile I/O Interface
IXH-AL35V2.0 is equipped with a versatile range of industrial I/O interfaces, including 6 COM ports, with COM1–2 configurable as RS422/RS485 via BIOS, 4 x USB 2.0, 4 x USB 3.2, dual Intel® i210 Gigabit LAN, and 2 x HDMI 2.0 for high-definition dual-display output. It also integrates 8-bit GPIO, wired control, audio, and flexible M.2 expansion options, enabling seamless connection with peripherals, displays, and communication modules. With its rich connectivity, the IXH-AL35V2.0 is well suited for industrial automation, intelligent control, machine vision, and edge computing applications requiring stable and efficient data communication.

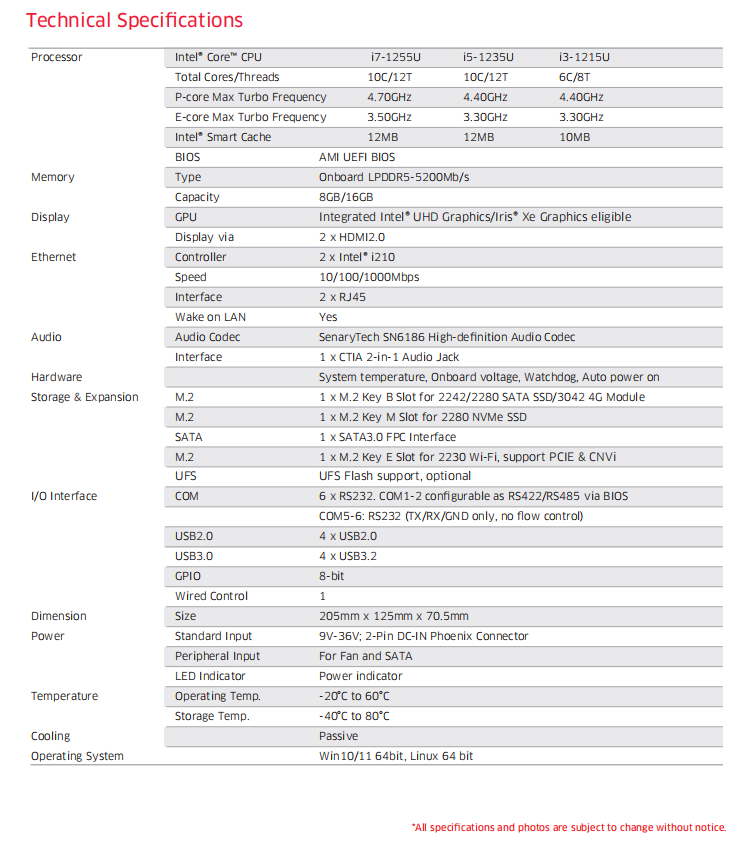

Technical Parameters

Industrial Fanless PC IXH-AL35 V2.0 Specification



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.


Downloads
Datasheet_IXHAL-35 V2.0
