Name: IXH-AL35
Brand: Maxtang
Price: Request for Quote USD
Availability: InStock

Product description

Maxtang IXH-AL35 is a compact fanless embedded industrial PC powered by the latest Intel® Alder Lake/Raptor Lake U series processors, delivering a balance of high performance and energy efficiency. It supports up to 64GB dual-channel DDR4 memory, features integrated Intel® UHD/Iris® Xe Graphics with dual HDMI® 2.0 outputs, and provides rich I/O connectivity including dual Gigabit LAN, six serial ports (RS232/RS485/RS422 configurable), eight USB ports, GPIO, audio, and expansion via M.2 for Wi-Fi, NVMe SSD, SATA, and 4G modules.

Designed with a rugged aluminum fanless enclosure, the IXH-AL35 ensures stable operation in harsh industrial environments, with wide voltage input (9–35V), industrial temperature range (-20°C to 60°C), and long product lifecycle. Its versatile design makes it an ideal solution for factory automation, IoT gateways, machine vision, digital signage, and edge computing applications.

Next-Gen CPU Power

Powered by Intel® Alder Lake / Raptor Lake U-series processors, the Maxtang IXH-AL35 delivers cutting-edge performance with configurations ranging from the Core™ i3-1215U (6 cores / 8 threads) to the Core™ i7-1255U (10 cores / 12 threads). Featuring Performance-cores up to 4.70GHz and Efficient-cores up to 3.50GHz, it ensures exceptional multitasking capability and energy-efficient processing across diverse industrial workloads. With up to 12MB Intel® Smart Cache, the platform provides enhanced responsiveness, faster data access, and stable computing power, designed to power diverse industrial workloads, from automation and IoT gateways to edge computing and embedded systems.

Wide-Range Applications

IXH-AL35 is engineered for wide-range industrial applications, delivering reliable computing power across factory automation, smart access control, and digital signage. With its powerful CPU, flexible I/O, and rugged fanless design, it supports advanced solutions in precision agriculture, environmental monitoring, IoT gateways, smart transportation, and edge computing deployments .the IXH-AL35 ensures stable performance, long lifecycle reliability, and seamless connectivity in diverse industrial environments.

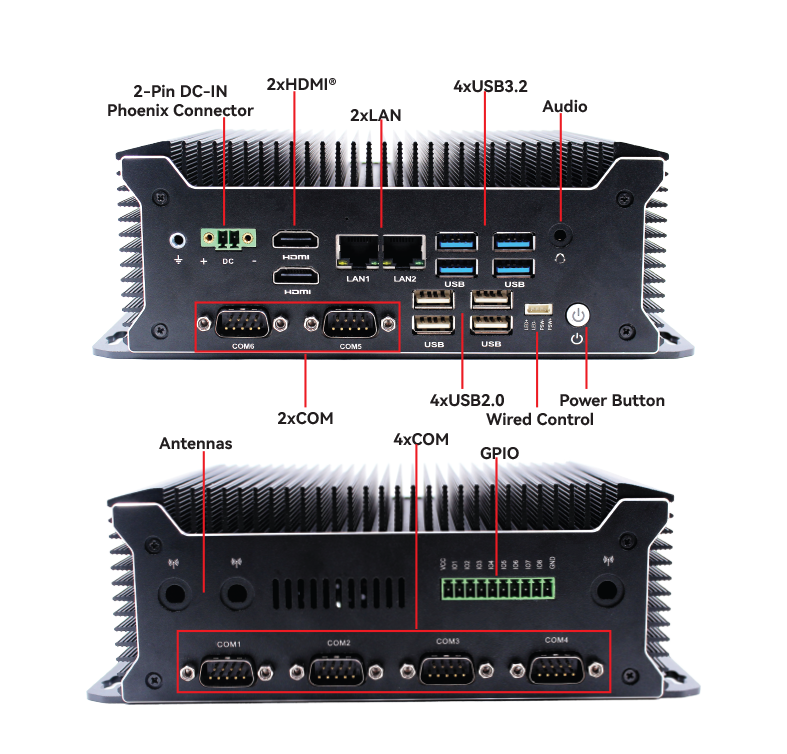

Versatile I/O Interface

The Maxtang IXH-AL35 is equipped with a comprehensive set of I/O options designed for industrial versatility, featuring six serial ports (configurable RS232/RS485/RS422), eight USB ports (four USB 2.0 and four USB 3.2), and dual Gigabit Ethernet for reliable networking. It also supports HDMI 2.0 high-definition display output, enabling smooth visualization and control. With its rich connectivity, the IXH-AL35 ensures seamless integration of peripherals, efficient data transfer, and reliable communication across diverse industrial environments.

Display Connectivity

Dual HDMI® 2.0 for multi-display support.

GPIO and Wired Control

8-bit GPIO with wired control for flexible device interfacing and system integration.

Technical Parameters

Specification

*All specications and photos are subject to change without notice.

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
