IXALN-35 is a industrial fanless PC powered by the Intel® Alder Lake-N series processors, supporting up to 8 cores, 8 threads, 6MB cache, and turbo frequencies up to 3.80GHz. It accommodates up to 32GB DDR4 memory via SO-DIMM and operates with a low 6W–15W TDP, delivering the perfect balance of high performance and energy efficiency.

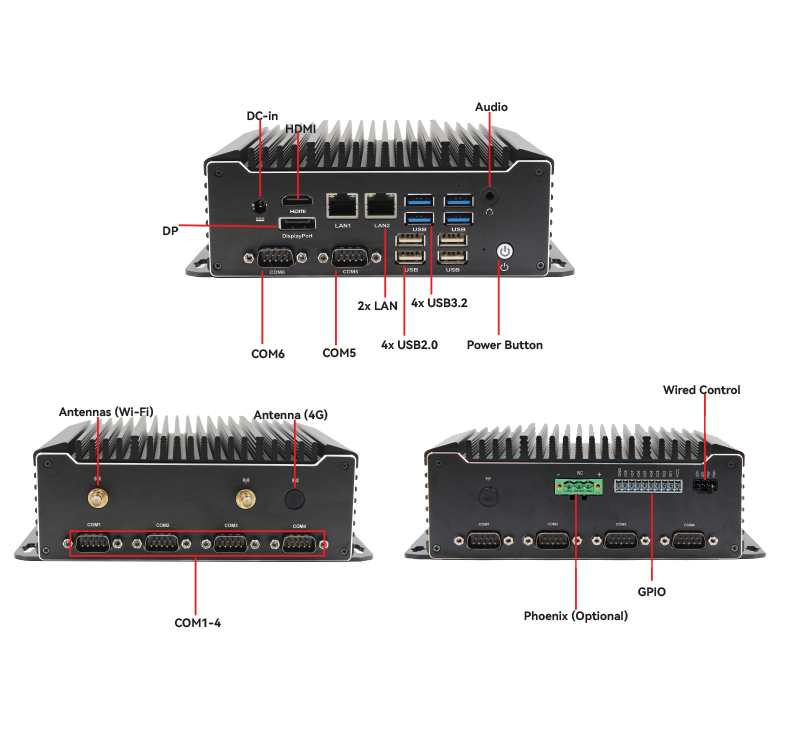

Designed for industrial-grade reliability, the IXALN-35 offers rich I/O connectivity, including HDMI®, DP, dual Gigabit LAN, six COM ports (4×RS232 + 2×RS485), and eight USB ports, ensuring seamless integration with diverse devices. Its rugged aluminum fanless enclosure provides protection against dust and debris, enabling stable operation in harsh environments. With a long product lifecycle and proven durability, it is ideal for industrial automation, IoT gateways, digital signage, healthcare, and smart retail applications.

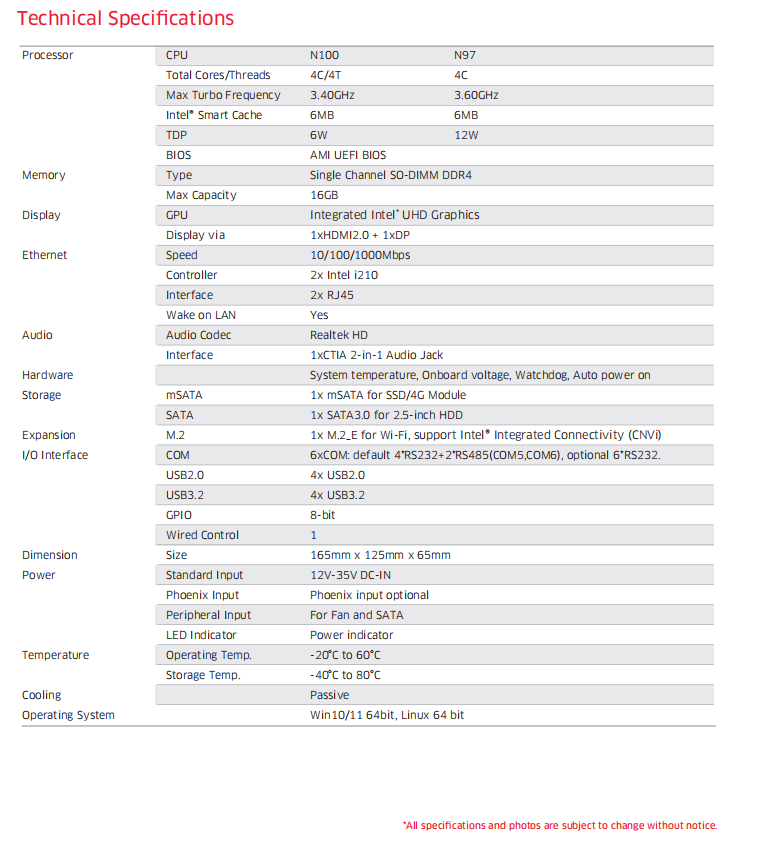

CPU: Intel®Alder Lake-N Series Processor
Memory: Single Channel SO-DIMM DDR4 up to 16 GB
Display: Intel® Integrated Graphics, display via HDMIl®+DP
Ethernet: 10/100/1000Mbps
Storage: SATA3.0, mSATA
Expansion: M.2 for WiFi
Power: 12V-35V DC input, Phoenix input optional

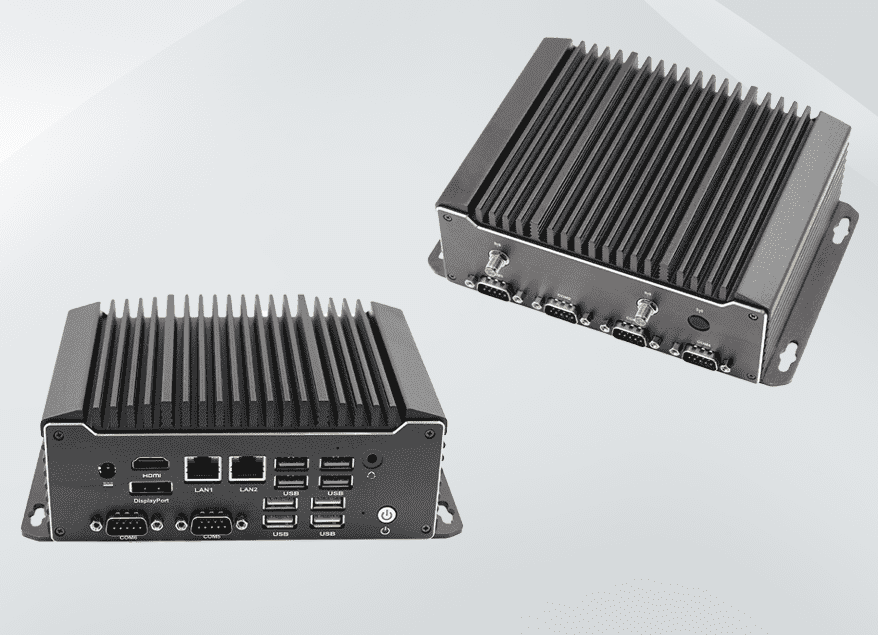

The IXALN-35 adopts a passive cooling design, eliminating the need for fans to deliver
silent operation and higher reliability by avoiding fan-related failures. Its compact, fanless
construction ensures efficient performance and long-term stability, making it ideal for
noise-sensitive environments and rugged industrial applications.
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
Drivers Audio_Realtek_ALC897
