Name: FP510
Brand: Maxtang
SKU: FP510
Availability: InStock

Mini-PC T0-FP750 Product Description

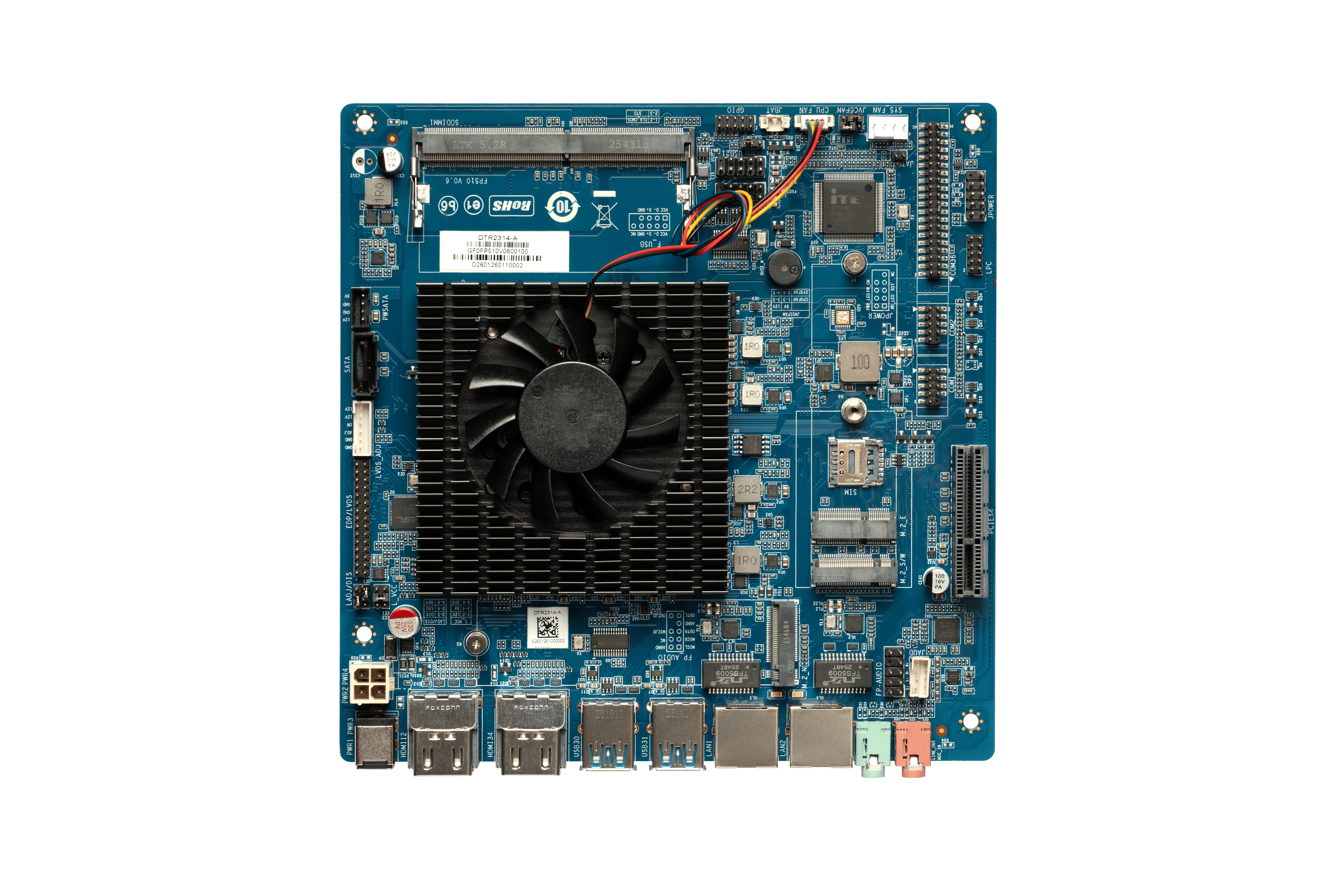

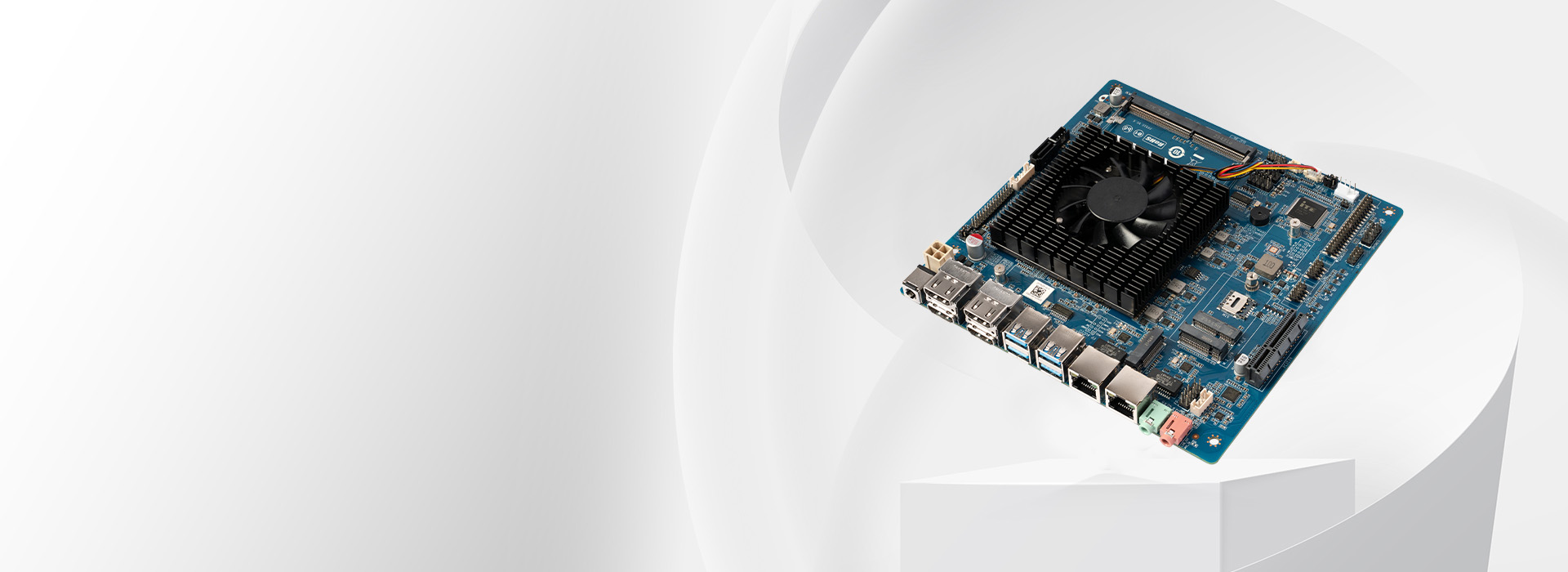

Maxtang FP510 Mini-ITX motherboard is powered by AMD Ryzen™ Embedded R2314 and R2514 processors, delivering up to 4 cores and 8 threads with boost frequencies up to 3.70GHz. Integrated Radeon™ Graphics supports up to four displays, including four HDMI outputs and one eDP/LVDS interface, enabling up to three independent 4K external displays. With dual-channel DDR4 memory support up to 64GB, the FP510 provides strong computing and graphics performance for industrial and multi-display applications.

Mini ITX FP510 Features

CPU: AMD Ryzen™ Embedded R2000 Series Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display: AMD Radeon™ Graphics via 3*HDMI2.0+1*HDMI2.0/eDP/LVDs
Ethernet: 2xRTL8111H, 10/100/1000Mbps
Storage & Expansion: SATA3.0, M.2 Key M for NVMe SSD, PCIeX4,
M.2 Key B for SATA SSD/4G, SIM Slot, M.2 Key E for WiFi&BT
Power: 12V/19V DC-IN Jack

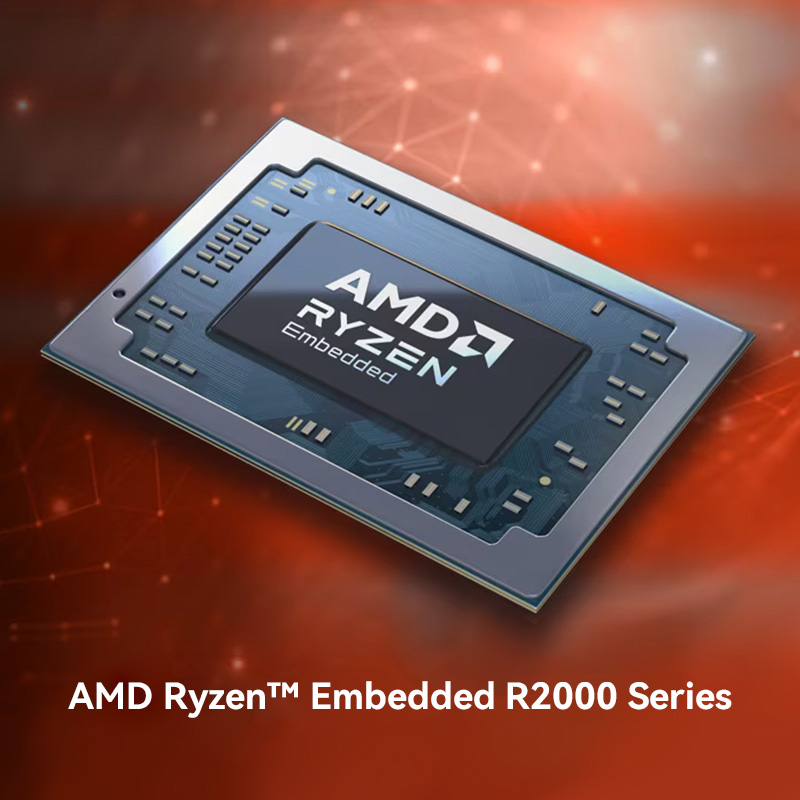

High-Performance Processing

The AMD Ryzen™ Embedded R2000 Series processors, integrated into the Maxtang FP510 Mini-ITX motherboard, deliver exceptional performance with up to 4 cores and 8 threads, and a boost frequency of up to 3.70 GHz, providing outstanding multi-tasking and computational power. This makes the processor particularly effective in applications that demand high-performance computing and graphics processing. The integrated Radeon™ Graphics supports four independent 4K displays, meeting the high-resolution and multi-display requirements of applications such as digital signage and video walls. Furthermore, the processor's 15W–35W TDP ensures efficient power consumption while maintaining 24/7 reliability, making it ideal for demanding environments like industrial control systems, where continuous operation is critical.

Wide Range of Application

The Maxtang FP510 Mini-ITX motherboard supports a wide range of applications including digital signage, industrial control systems, medical equipment, transportation systems, and security systems. Its quad-display capability, dual Gigabit Ethernet, and flexible I/O make it ideal for multi-display setups, seamless data transmission, and integration with legacy devices, ensuring reliable performance in various commercial and industrial environments.

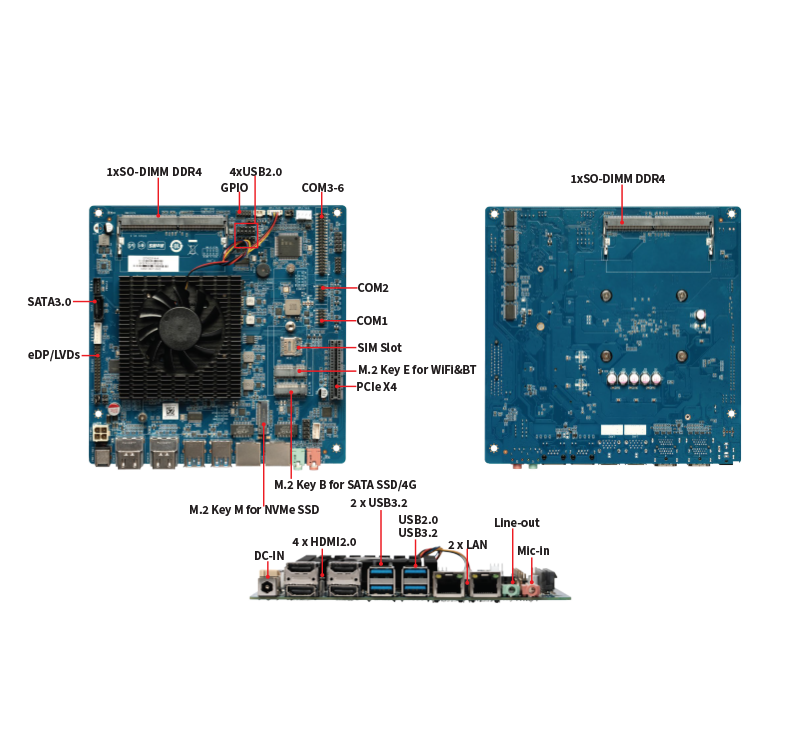

Versatile Connectivity and Expansion

The FP510 Mini-ITX motherboard offers rich I/O capabilities, ensuring seamless integration with a wide range of devices and peripherals. It features six RS232 serial ports (with one configurable to RS485), allowing compatibility with legacy industrial systems and control equipment. The motherboard also includes dual Gigabit Ethernet ports for stable, high-speed networking, essential for real-time data transfer and system communication. With three USB 3.2 ports and five USB 2.0 ports, it provides extensive connectivity for external devices and storage. Additionally, the PCIe x4 slot and multiple M.2 slots (including NVMe SSD, SATA SSD, and Wi-Fi & Bluetooth options) offer flexible expansion, supporting various storage and wireless communication needs. This comprehensive I/O suite ensures that the FP510 meets the connectivity demands of industrial automation, digital signage, and other embedded applications.

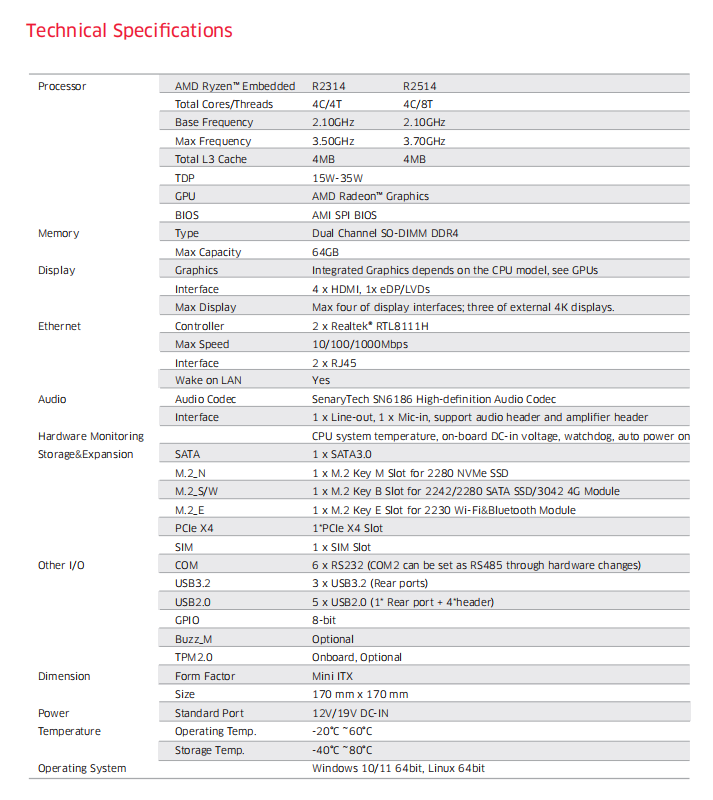

Technical Parameters

Mini ITX FP510 Specification

HDMI Logo

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.

*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

FP510_Datasheet
