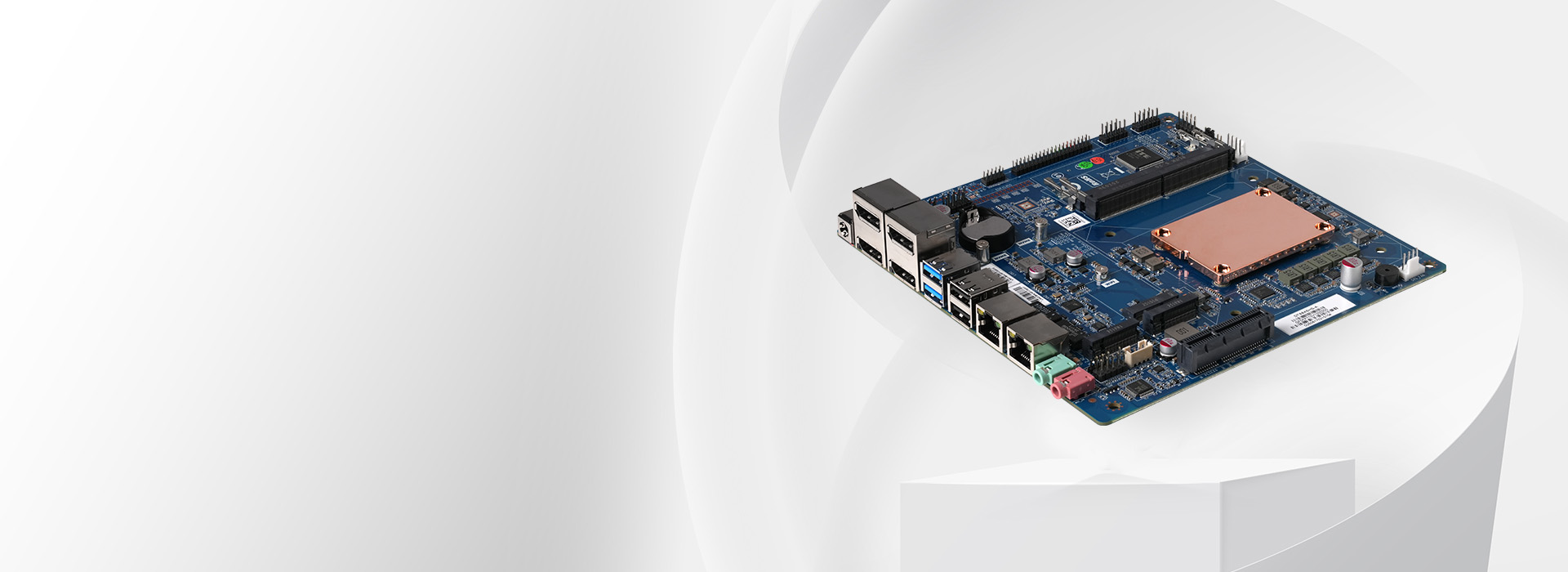

FP-710
Powered by Ryzen™ 7 PRO 8845HS | Up to 96GB DDR5 | Quad 4K Displays | Industrial-Grade AI Performance
Inquiry Now
Features
CPU: AMD Ryzen™ 8000 Series Processor
Memory: Dual channel SO-DIMM DDR5 up to 96GB
Display: AMD Radeon™ Graphics, Up to 4 independent 4K displays
Ethernet: 1xIntel i219+3xIntel i210
Storage: 1xM.2 for NVMe SSD, 8xSATA
Expansion: PCIe 4X, M.2 for Wi-Fi, M.2_2242 Slot for 4G, Nano SIM
Power: 19V DC input
Application Scenarios
The FP-710 is built to meet the demands of a wide range of embedded applications where reliability, stability, and consistent performance are essential. From interactive terminals and real-time data systems to advanced imaging and intelligent automation, it delivers powerful processing and high-quality graphics for uninterrupted 24/7 operation.
Application Scenario1
Application Scenario2
Overview
Efficient Quad-Core Performance
Built for low-power industrial applications, the FP-710 Mini-ITX board runs on Intel's quad-core Celeron N3160 Braswell processor. With support for dual HD displays and power consumption under 7W, it offers strong multitasking ability without compromising energy efficiency. The system supports up to 8 GB of DDR3L memory, ensuring dependable performance for edge and embedded computing.
Rich I/O Options for Industrial Flexibility
Designed to meet a range of deployment needs, this compact board includes four USB 3.0 ports, dual Gigabit LAN, VGA, HDMI, and two COM ports (including RS-232/422/485), plus PS/2 support for legacy hardware. Additional onboard headers offer expansion for extra COM/USB ports and a parallel port, while full-size PCIe Mini and mSATA slots open the door for wireless and high-speed storage modules.
Long-Term Availability and Reliability
Engineered with industrial-grade reliability in mind, the FP-710 comes with a guaranteed 5-year product lifecycle. It’s a dependable choice for system integrators and OEMs planning long-term deployments with minimal risk of obsolescence.

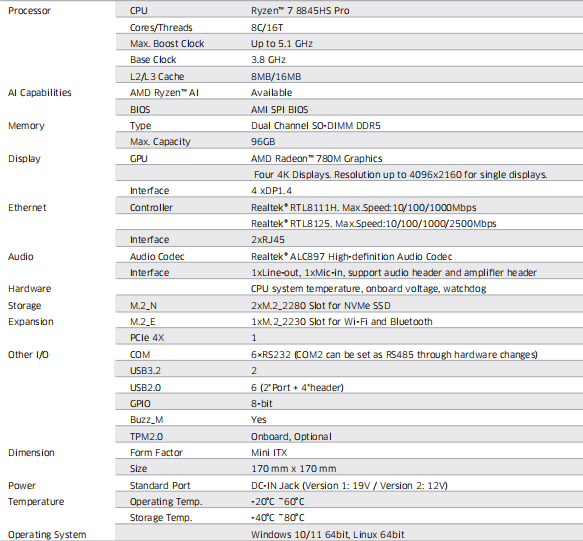

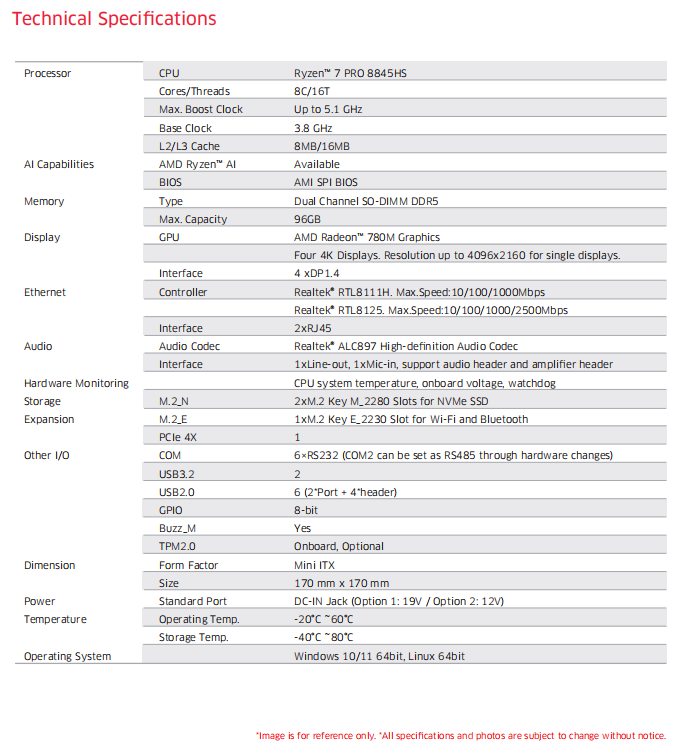

Technical Parameters
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
FP-710 Datasheets
