Intel^® Braswell Processor

Braswell is the next-generation, multicore system-on-a-chip (SoC) based on Intel^® latest microarchitecture and 14 nm process technology. It’s built for designs that target entry-level desktops, and all-in-one PCs. It delivers a range of innovative features including quiet fanless designs, the ability to design lighter-weight materials and devices, and compact, more portable PCs. This platform offers enhanced graphics and media with up to 2x the graphics performance for fast video creation, editing and sharing, plus the ability for easy multi-tasking over multiple monitors.

Dual Displays

The VBR-30 features 2xHDMI^®for displays
make it far easier and faster to use programs simultaneously.
Instead of having to switch between full-screen windows,
programs can be put on the second monitor
making for fewer clicks and faster workflow.

Comprehensive I/O Interface

Features 3xRJ45 10/100/1000Mbps, ethernet controller; SATA, mSATA, eMMC optional for storage, mini PCIe for Wi-Fi and SIM for expansion. Other I/O interface includes 2x USB3.2, 4xUSB2.0, 2x COM and standard 12V/19V DC-in, carters most market’s requirements.

Gigabit LAN

It delivers a high-speed LAN connection with a transfer rate of up to 1000Mbps and is ideal for a seamless internet connection with no hesitation.

Plenty Storage

Allows for all the expandability you might need. 1×mSATA, 1×SATA, 1×eMMC (optional ) gives you plenty of options for high-speed, high-capacity storage drives.

Product description

The VBR-30 is a small form factor embedded fanless PC based on the Intel^® Braswell platform. It supports Intel® Celeron™ N3150, N3160 for better performance with cost advantages. The PC carries 2xSO-DIMM DDR3L memories up to 8GB to add higher bandwidth, lower latencies for processes. It features Intel Integrated graphic display via 2×HDMI, supports dual displays with increased productivity. A rich i/o interface includes 3xLAN, 2xCOM, 2xUSB3.2, and 4xUSB2.0 meets most market’s requirements. 1x mini-PCIe for Wi-Fi, 1x SIM card slot for expansion, and desktop ready for easy installation. Its fanless construction not only overcomes noise challenges but also can be a great fit for various applications. The VBR-30 provides an excellent customer experience, a long-lasting life expectancy for future development.

Features

Intel^® Braswell Processors
2 × SO-DIMM DDR3L for memory up to 8GB
Support dual display via 2 × HDMI^®

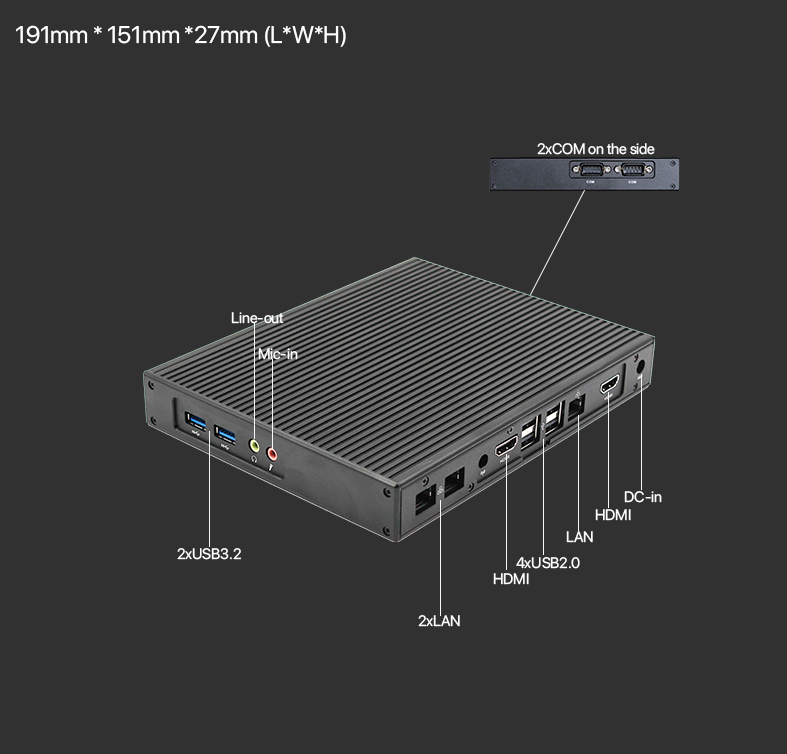

Rich I/O ports: 2 × USB3.2, 4 × USB2.0, 3 × LAN, 2 × COM
SATA, mSATA, eMMC (optional) for Storage
Fanless design and low power consumption
High quality Aluminium Enclosure

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Technical Parameters

VBR TS.png

Downloads

Datasheet_VBR-30

Drivers Audio_Realtek_ALC662

Drivers LAN_Realtek_1.0GbE
