Intel^® Whiskey Lake/Comet Lake U Processor

The Intel 8th or 10th Gen Intel^® Whiskey Lake/Comet Lake U processors bring integrated Gigabit Wi-Fi to the thin and light mainstream mini pcs for the first time, delivering up to 12 times faster connectivity speeds. It offers up to 2-times better performance and double-digit gains in office productivity for everyday web browsing and light content creation over the previous generation. This leap in connectivity and performance will help empower people to focus, create, and connect at home, and in the office.

Multiple Displays

The VHWL-30 features DP+HDMI^®+mini HDMI^®,
supports multiple displays, makes it far easier
and faster to use multiple programs simultaneously.
Instead of having to switch between full-screen windows,
programs can be put on the second monitor or third monitor
making for fewer clicks and faster workflow.

Rich I/O Interfaces

Features two RJ45 10/100/1000Mbps ethernet controller,
2x M.2 for storage, addition M.2 for Wi-Fi/Bluetooth and SIM for expansion.
A rich I/O interface includes 2x USB3.2, 4xUSB2.0, 2xHDMI^®, 1xDP, and COM optional with standard 19V DC-in carters most market’s requirements.

Built-in Wi-Fi

Fast wireless connectivity

Built-in Bluetooth

Data transmission convenient

Product description

Maxtang's VHWL-30 embedded mini-PC incorporated the Intel Whiskey Lake-U/Comet Lake U processor, offers you greater computing power with cost advantages. Dual-channel SO-DIMM DDR4 up to 64GB for its memory, multiple displays via HDMI, DP, and mini HDMI. A rich i/o interface includes 2xLAN, 2xUSB3.2, and 4xUSB2.0, and COM optional meets most market’s requirements. It provides an excellent customer
experience and a long-lasting life expectancy for future development.

Based on a small form factor, as its name states, it is great for space-saving. It supports VESA mounting, has an M.2 for Wi-Fi and a SIM slot for expansion, and is desktop-ready for easy installation. It builds with advanced cooling construction, overcomes noise challenges, and can be a great fit for various applications

Features

CPU: Intel Whiskey Lake U/Comet Lake U Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display via: Intel® Integrated Graphics display via HDMI, DP
I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 4xUSB2.0, SIM
Ethernet: 10/100/1000Mbps
Storage: 1xM.2 for 2280 SSD, 1xM.2 for 2242 SSD/4G
Power: 19V DC-in

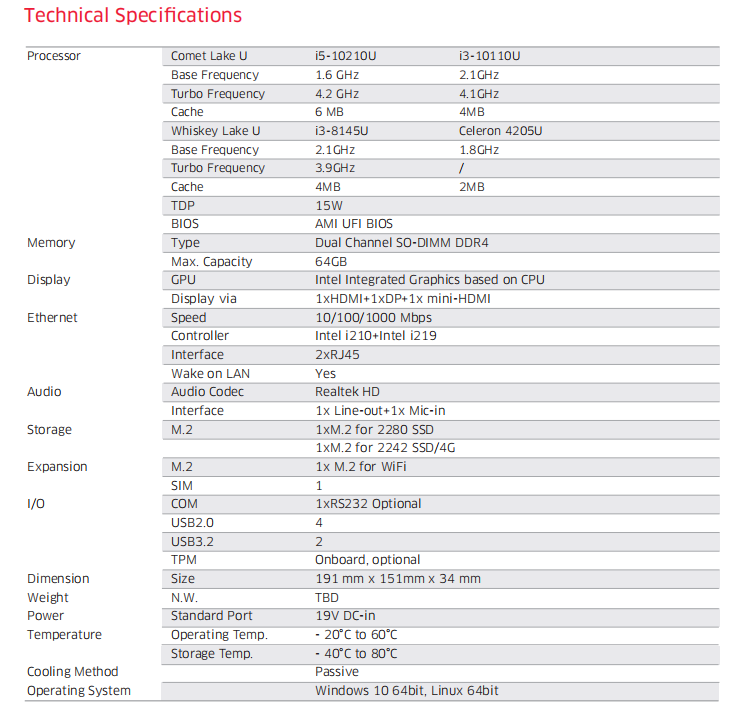

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

Datasheet_VHWL-30

Drivers Audio_Realtek_ALC662

Drivers Audio_Realtek_ALC897

Drivers LAN_Intel_1.0GbE

Drivers Intel Whiskey Lake Series

Drivers Intel Comet Lake Series

BIOS Update_VHWL30
