Do what you do with exceptional performance
The board features the Raptor Lake-P and U series processor which provides an incremental set of crucial industrial features vital to the manufacturing and energy sector along with a significant increase in instructions-per-cycle performance from the 12th Gen core Mobile processor. It also comes with long-life hardware availability of up to 10 years and software support of up to 5 years.
Leverage vision application into the beyond
The board supports 4HDMI2.0 with extensive I/O interfaces that can be utilized in numerous industrial systems and devices, especially for digital signage and gaming industries.
Smart City
Digital Signage

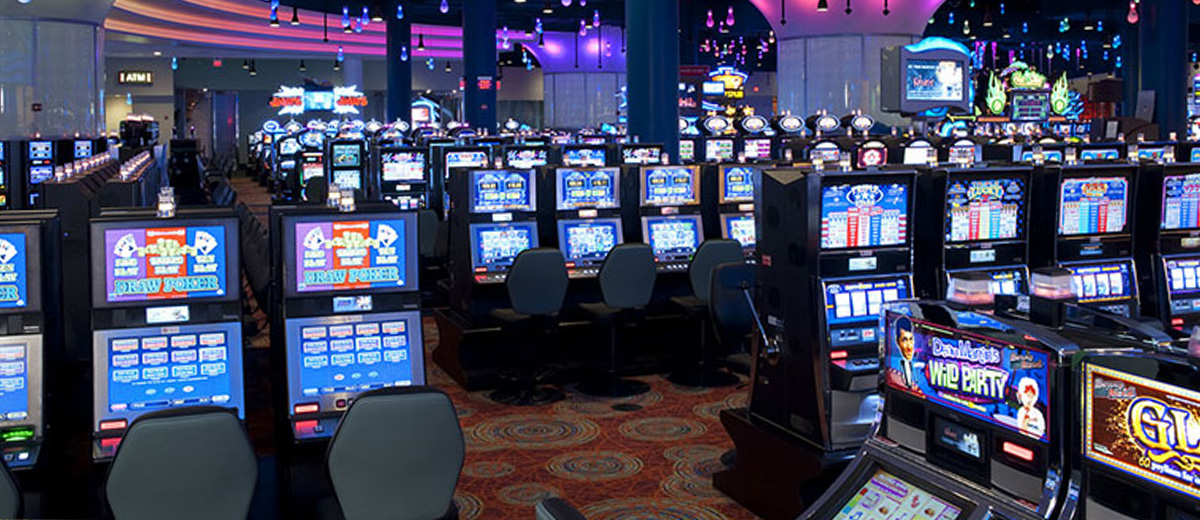

Amusement Gambling
Mutiple display
Rich I/O Interfaces
A rich connectivity of 4xHDMI®2.0, 6x COM, 4xUSB3.2+4xUSB2.0, 2xLAN, 1xSATA, 2xM.2 connector, PCIe 4X, GPIO and optional TPM2.0 for added security.

Product description

Maxtang RL-10 is designed with the 13th Gen Intel Raptor Lake Series processor, up to 14 cores and 20 threads based on a small form factor design great for IoT deployments that require high-performance, enhanced graphics densi-ty. Supports 2xSO-DIMM DDR4 up to 64GB, features 4xHDMI2.0, 6xCOM, 4xUSB3.2+4xUSB2.0, 2xLAN, 1xSATA, 2xM.2 connector, PCIe4X, GPIO and optional TPM2.0 for added security.


The RL-10 drives more values for IoT use cases with differentiated capabilities, offers an immersive experience by Intel Xe Graphics/UHD graphics (varies on CPU), and supports 4K independent displays through 4xHDMI+1xLVDs/eDP+1x eDP/DP/HDMI. The motherboard is suitable for surveillance, digital signage, electronic gaming machines, and thin clients.

    • CPU: Intel® Raptor Lake Series Processor

    • Memory: Dual channel SO-DIMM DDR4 up to 64GB

    • GPU: Intel Iris® Xe Graphics eligible/UHD Graphics depends on CPU

    • Ethernet Controller: Intel i225/i226 + Intel i219

    • Storage: 1xM.2 for NVMe 2280 SSD, 1xSATA

    • Expansion: M.2 for WiFi, PCIe 4X

    • Power: 19V DC-in

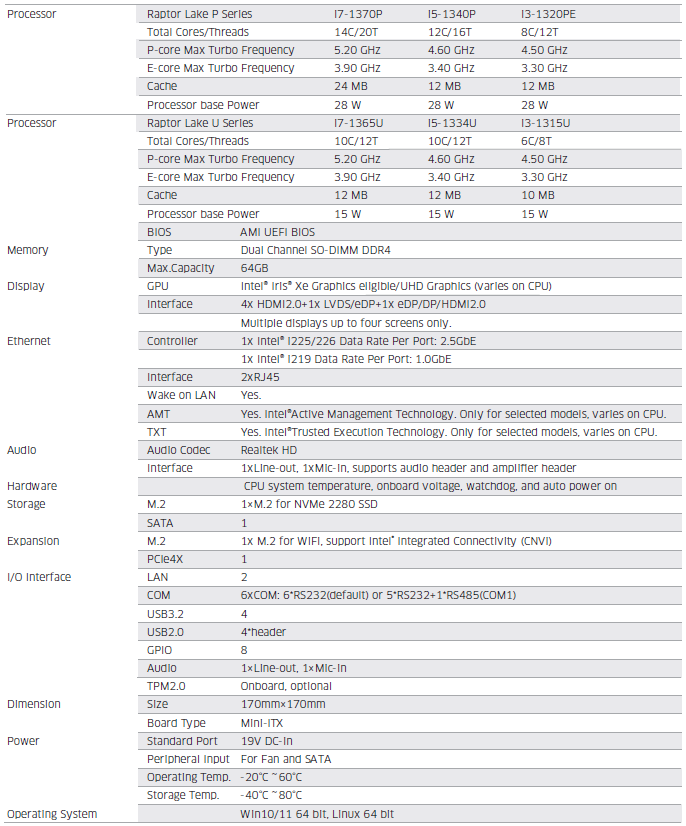

Technical Parameters



*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.
