Intel^® Bay Trail Processors

Based on the Bay Trail platform, it is power efficient. Thanks to the specially optimized 22-nanometer low-power process with tri-gate transistors, performance, and energy efficiency have been significantly improved compared to its predecessor. The processor cores are based on the new Silvermont architecture. The increased utilization of the pipeline and many other improvements (optimized branch prediction, increased buffers, enhanced decoders) have increased the performance per clock by about 50 percent compared to the previous generation.

Fanless, Ventless,
Dust-Resistant

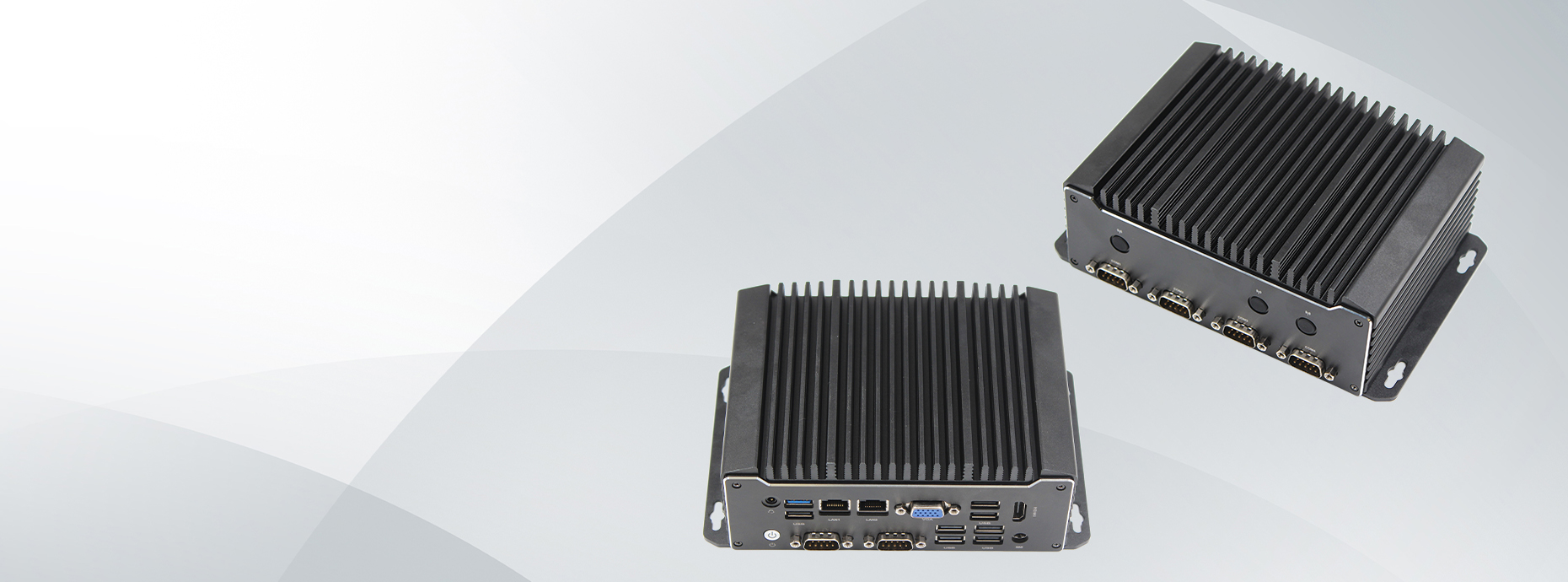

The IXBYT35 is a Fanless Industrial PC
provides a powerful performance with efficiency
and reliability combined. Its fully made of aluminum enclosure
with fanless design, intend to protect internal components from
dust and debris in harsh industrial environment.

Comprehensive I/O Interface

Features 2xRJ45 10/100/1000Mbps, ethernet controller； SATA2.0, mSATA, for storage, mini PCIe for Wi-Fi, HDMI^® and VGA for display. Other ports includes1x USB3.2, 7xUSB2.0, 6x COM and standard 12V DC-in, carters most market’s requirements.

High Performance

Its low power consumption perfectly balances efficiency and performance, wrapped in an Aluminum enclosure with a fanless design that protects the system against a harsh dusty environment.

Multiple Display

Integrated Intel^® HD Graphic card, display via VGA, HDMI ports, and 1xLVDS pin on board, provide strong support to digital display equipment.

Product description

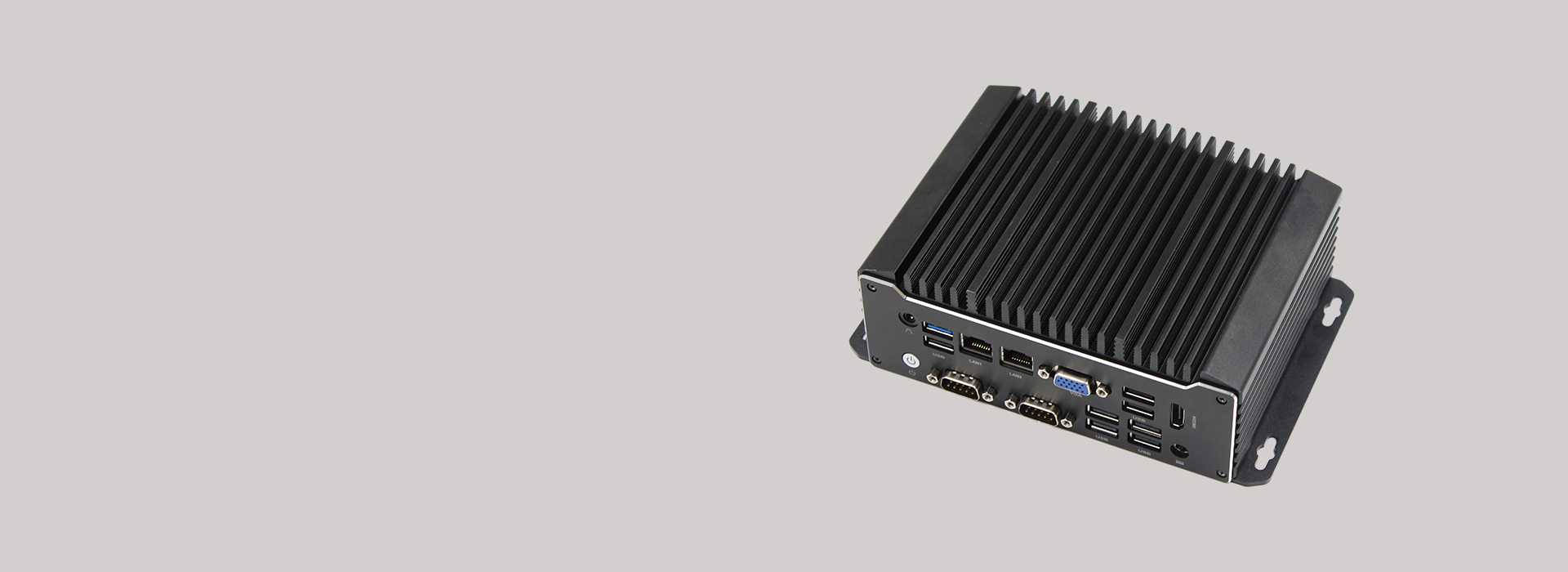

The IXBYT-35V2.1 is a small form factor embedded fanless industrial PC based on Intel^® Bay Trail processors. It supports single-channel SO-DIMM DDR3L up to 8GB with a TDP rate of 10W. Dual displays via HDMI^®, VGA with Intel Integrated Graphic. A rich interface includes 2xLAN, 6xCOM, 1xUSB3.2, and 7xUSB2.0 caters to most market requirements.

The IXBYT-35 is fanless and ventless, designed to be used in an industrial environment as an ideal solution. It can withstand harsh environments, features extensive I/O options, with a long lifecycle for sustainable development. It has a low power consumption, great for energy saving, retains the robust design of all Maxtang product lines with cost advantages. Provides a great user experience, increases productivity with stability and reliability.

Features

Intel^® Bay Trail Processor
Supports Single Channel SO-DIMM DDR3L up to 8GB
Full HD 1080P Playback, Display via VGA, HDMI^®
Rich I/O ports: 1 x USB3.2, 7 x USB2.0, 2 x LAN, 6xCOM
mSATA, SATA2.0 for Storage, mini-PCIe for WiFi/4G
Fanless Design with Aluminum Enclosure
Power:12V DC-in, Low Power Consumption

Technical Parameters


*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
