Power at its Core

Supporting Intel^® latest 6th, 7th, 8th, and 9th Gen. Core™ i3/i5/i7 Celeron^®/Pentium processor. Loaded with an H310C chipset, this board features 1 x HDMI^®, 1x VGA, with an ethernet speed of 10/100/1000 Mbps. It carries 2 x SO-DIMM DDR4-2400/2666 MHz slots up to 64GB to add higher bandwidth and lower latencies for processes.

Dual Displays

The FX-H310C features VGA+HDMI^®,
supports dual display, makes it far easier
and faster to use multiple programs simultaneously.
Instead of having to switch between full-screen windows,
the second program can be put on the second monitor
making for fewer clicks and faster workflow.

Rich I/O Interfaces

It contains1x LAN, 2x USB2.0, 4x USB3.2, 1xVGA, 1xHDMI^®, and 2xAudio, catering most market requirements.

Product description

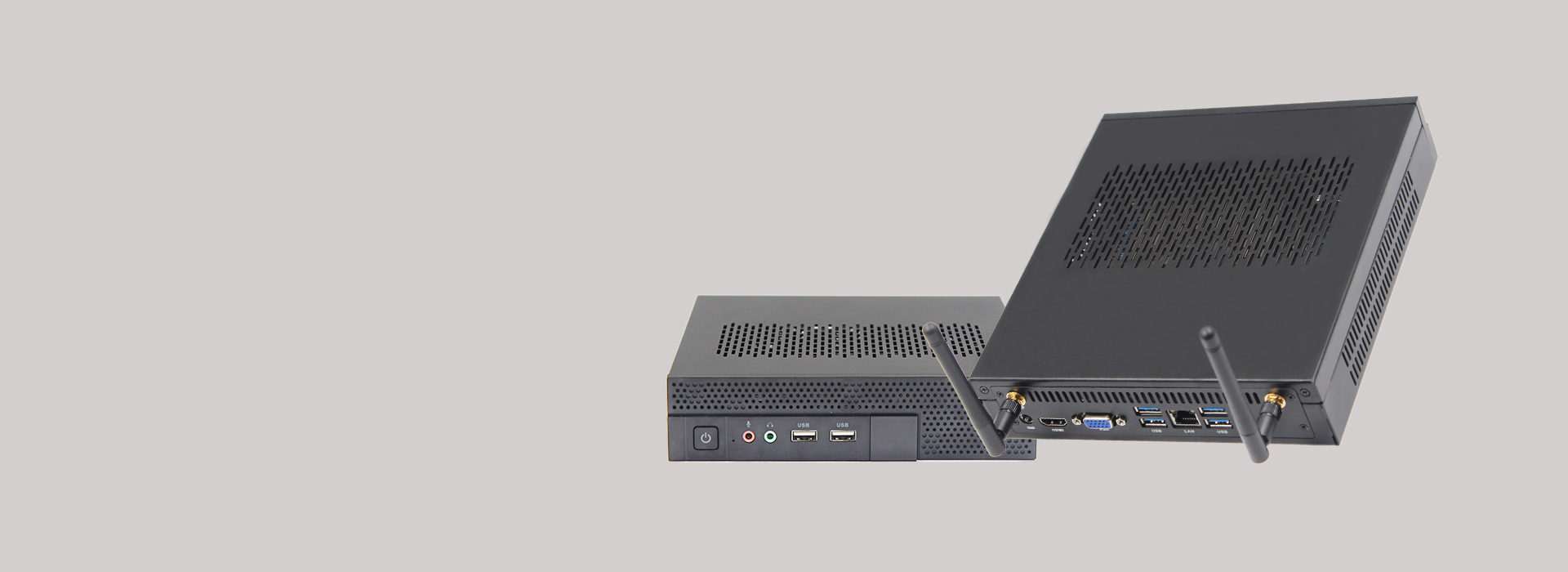

The Maxtang FX-H310C embedded mini PC is based on the Intel^® 6th, 7th, 8th, 9th Gen processors with H310C chipset. It provides a complete PC platform with powerful performance. Supports dual display via HDMI^®+VGA in addition to dual-channel SO-DIMM DDR4 memory. Features with 1-Gigabit ethernet controllers, M.2 for WiFi, mSATA and SATA3.0 for storage, and plenty of USB ports for uses.

The FX-H310C is an ideal solution for various industrial applications. It retains the robust design just like all other Maxtang products with cost advantages. Our goal is to provides you a great customer experience with a great product base on flexibility and reliability.

Features

CPU: Intel^® 6th, 7th, 8th, and 9th Gen Desktop Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display: Intel^® Graphics display via HDMI^® 1.4, VGA
Ethernet: 10/100/1000 Mbps
Storage: SATA3.0, mSATA
Expansion: M.2 for WiFi
Power: 19V DC input

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
