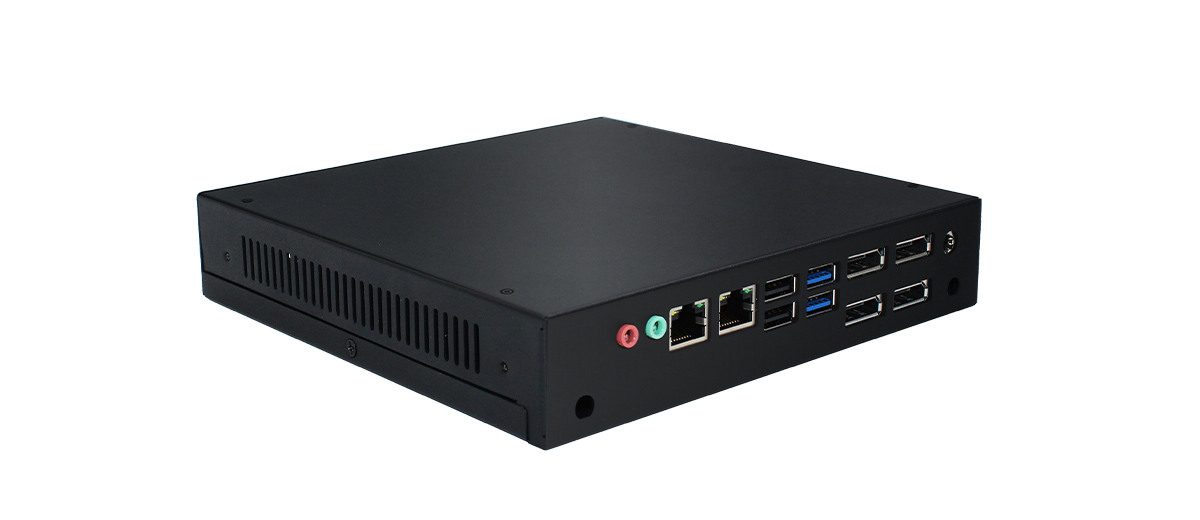

The new Maxtang Mini PC AIV1605 is based on the AMD® Ryzen™ V1605B (quad-core) and provides a complete PC platform with high performance. Coming from the embedded V1000 processor family family, this CPU combines the incredible performance of the pioneering “Zen” architecture and “Vega” GPU in a single chip with thermal design power (TDP) as low as 15W. Four independent 4K+ DP ports are supported in addition to dual-channel DDR4 SO-DIMM memory, dual 1-Gigabit Ethernet controllers, and M.2 expansion for Wi-Fi and SSD modules. The TPM module for added security is also optional. The AIV1605 also has rich interfaces as 6 x USB2.0, 2 x USB3.0, 2 x Mic-in, 2 x Line-out and 2 x LAN, 2x COM catering to most requirements in the market.
The 4xDP interfaces can support the Eyefinity technology, including tiled display SLS (4x1,3x1,2x1etc..) & mixed Tiled display (2x2 etc…). Thus the AIV1605 is an ideal solution for applications requiring high-resolution and multi-display products, like electronic gaming machines, medical imaging, interactive digital signage, thin clients, or PDS terminals. The AIV1605 can also act as a high speed communications front-end like a mini-server.

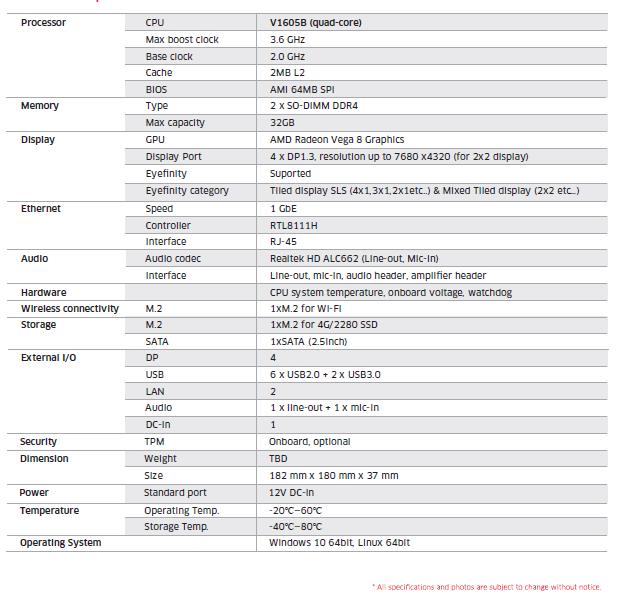

CPU: Ryzen™ Embedded V1605B
Memory: Dual channel SO-DIMM DDR4 (max 32 GB)
Display: Up to 4 DP displays
Ethernet: Support dual 1GbE ethernet cards
Rich I/O Ports: 4xDP, 2xUSB3.0, 6xUSB2.0, 2xLAN, 2xCOM, 2xMic-in, 2xLine-out
Power: 12V DC input
Security: TPM 2.0 supported (optional)
