Multiple display
HDMI+DP+eDP, supports multiple display and gives you an extraordinary visual experience.
Wide Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
Medical
Transportation
Industry
6COM 8USB 2LAN
This mini embedded motherboard also has rich I/O interfaces, which meets the requirement of the market.
Product description

The SBC-APL35 is an embedded motherboard, supporting Intel® Apollo lake Celeron and Pentium processors. This board can deliver cutting-edge performance with very low power consump-tion. With Celeron® and Pentium processors you’ll enjoy stunning visuals, effortless multi-tasking, increased speed and enhanced security to help you create, play, entertain and achieve.

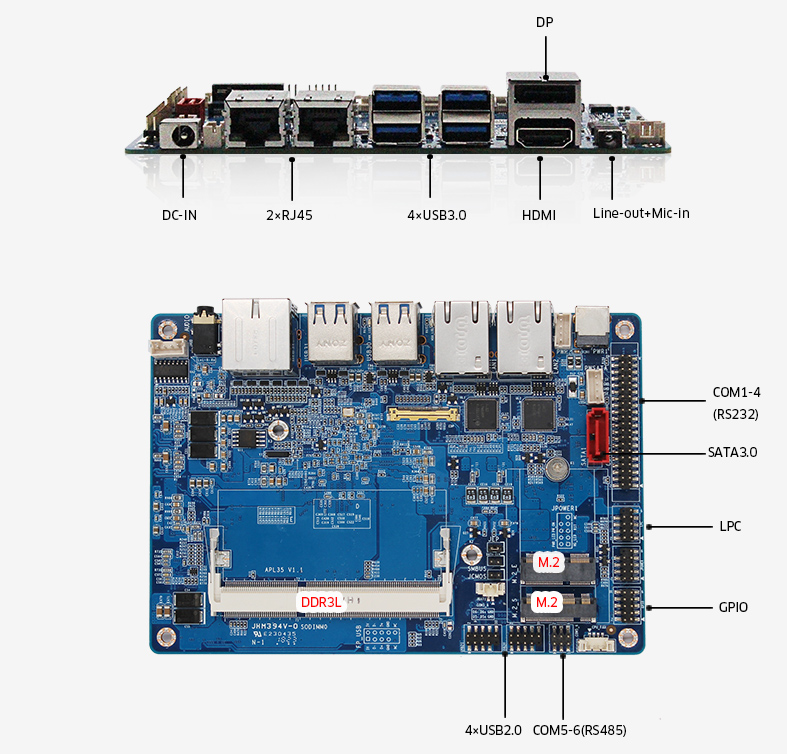

This board features multiple display via 1×Display Port1.2 and 1×HDMI1.4 and 1×eDP. It carries 1×DDR3L 1600 MHz slot up to 8GB to add higher bandwidth and lower latencies for processes. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211), 4×USB3.0, 4×USB2.0, 4×RS232, 2×RS485, 1×LPC(optional), 8×GPIO.

Features
    • Intel Apollo lake BGA processor

    • Single channel DDR3L system memory up to 8GB

    • Multiple display: HDMI, DP and eDP

    • 10/100/1000Mbit ethernet card

    • SATA3.0, M.2 (2242 SSD)

    • 9~24V DC input
