Alder Lake-S Processor with Z690/Q670/H670

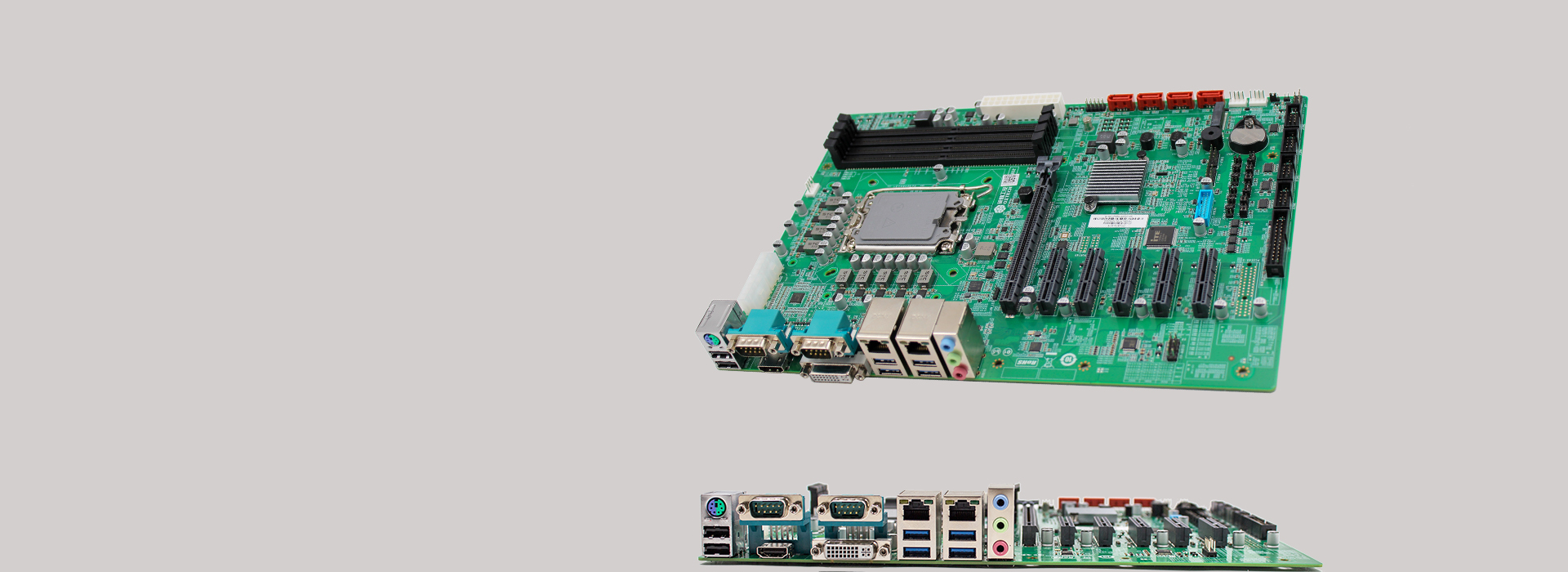

Powered by Intel Alder Lake-S processors with Z690/Q670/H670 chipset, the ALD75 is an ATX motherboard that delivers maximized performance for compute-intensive workloads and IoT deployment with enabled AI and graphic acceleration. Up to 16 cores, 24 threads, 30MB Smart Cache, the 12th Gen Intel® Core™ desktop processors for IoT applications combining Performance-cores and Efficient-cores into a single die with Intel® Thread Director2, enable IoT use cases with excellent performance.
Wide Application
It provides a great user experiences with improved productivity.
Rich I/O Interfaces
Features with two 1-Gigabit Ethernet controllers, 1x M.2 + 4xSATA for storage,  a rich interface as 6x COM, 6 x USB2.0, 6 x USB3.2, Line-in, Line-out, and Mic-in, this ATX motherboard caters to most market requirements.


Product description

The Maxtang ATX ALD-75 embedded motherboard is based on an Intel Alder Lake-S series processor with Z690/Q670/H670 Chipset, providing a complete PC platform with powerful performance. It supports dual displays in addition to four UDIMM DDR4 memory. Features Intel i219 and i225 Ethernet controllers, up to 2.5GbE for high-speed communication. It has four SATA plus one M.2 for storage, a rich I/O interface includes 6xCOM, 6 x USB2.0, 6 x USB3.2, and 7xPCIe for greater expansion.

The ALD-75 is an ideal solution for various industrial applications. It retains the robust design just like all other Maxtang products with cost advantages. Our goal is to provide an excellent customer experience with a great product base on flexibility and reliability.

Features
    • CPU: Intel Alder Lake-S Processor

    • Memory: 4x UDIMM DDR4 Up to 128GB

    • Display: Integrated Graphics display via HDMI+DVI-I(VGA)

    • Ethernet Controllers: 1xIntel i219+1xIntel i225

    • Storage: 1xM.2 for NVMe SSD, 4xSATA

    • Expansion: 1*PCIe2X, 1*PCIe16X, 5*PCIe4X(Z690) or 4*PCIe4X(Q670/H670)

    • Power: ATX_24PIN + 2*8PIN
