The SXC-ALN30 is a high-performance, ultra-compact embedded mini PC designed for industrial and commercial applications. Powered by Intel® Alder Lake N processors, it supports up to 32GB DDR4 memory and features Intel® UHD Graphics for triple independent 4K displays via HDMI 2.0. Its rugged, fanless design ensures reliability in harsh environments, while dual LAN, six USB ports, and two COM ports offer flexible connectivity for automation, digital signage, kiosks, and IoT applications.

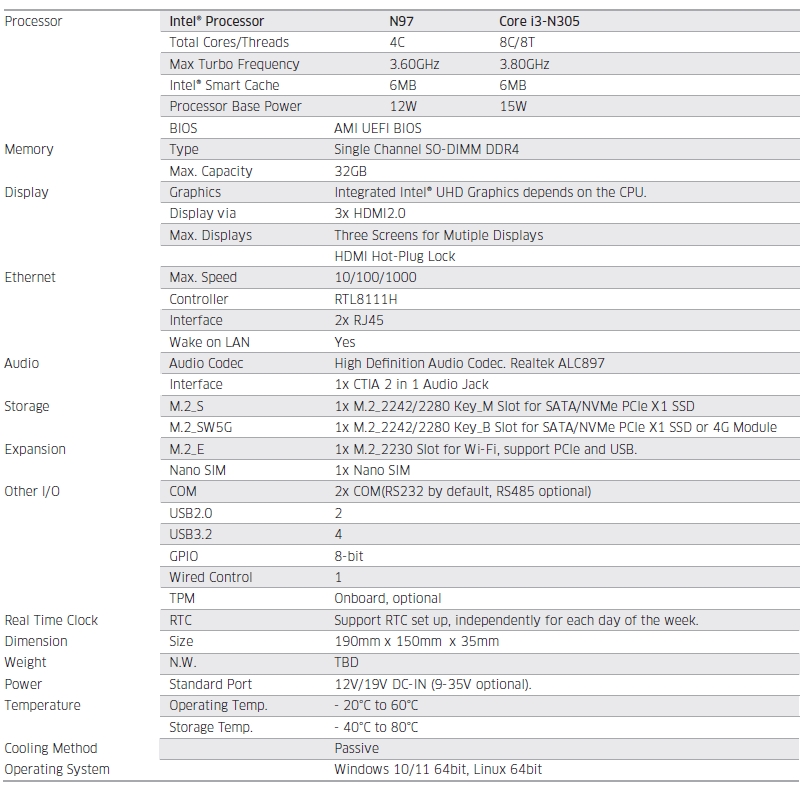

• CPU: Intel® Alder Lake N Processor

• Memory: Single Channel SO-DIMM DDR4 up to 32GB

• GPU: Integrated Intel® UHD Graphics, Max three display screens

• Ethernet: 10/100/1000Mbps

• Storage: M.2 Key_M Slot for SATA/NVMe SSD,

  M.2 Key_B Slot for SATA/NVMe SSD or 4G Module

• I/O Ports: 2xLAN, 2xCOM, 4xUSB3.2, 2xUSB2.0, 3xHDMI

• Expansion: M.2_E Slot for Wi-Fi(support PCIe&USB), Nano SIM

• Power: 12V/19V DC-IN(9-35V optional)

• Support HDMI Hot-Plug Lock, RTC/W

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies.  All other trademarks or registered trademarks are the property of their respective owners and are recognized.
