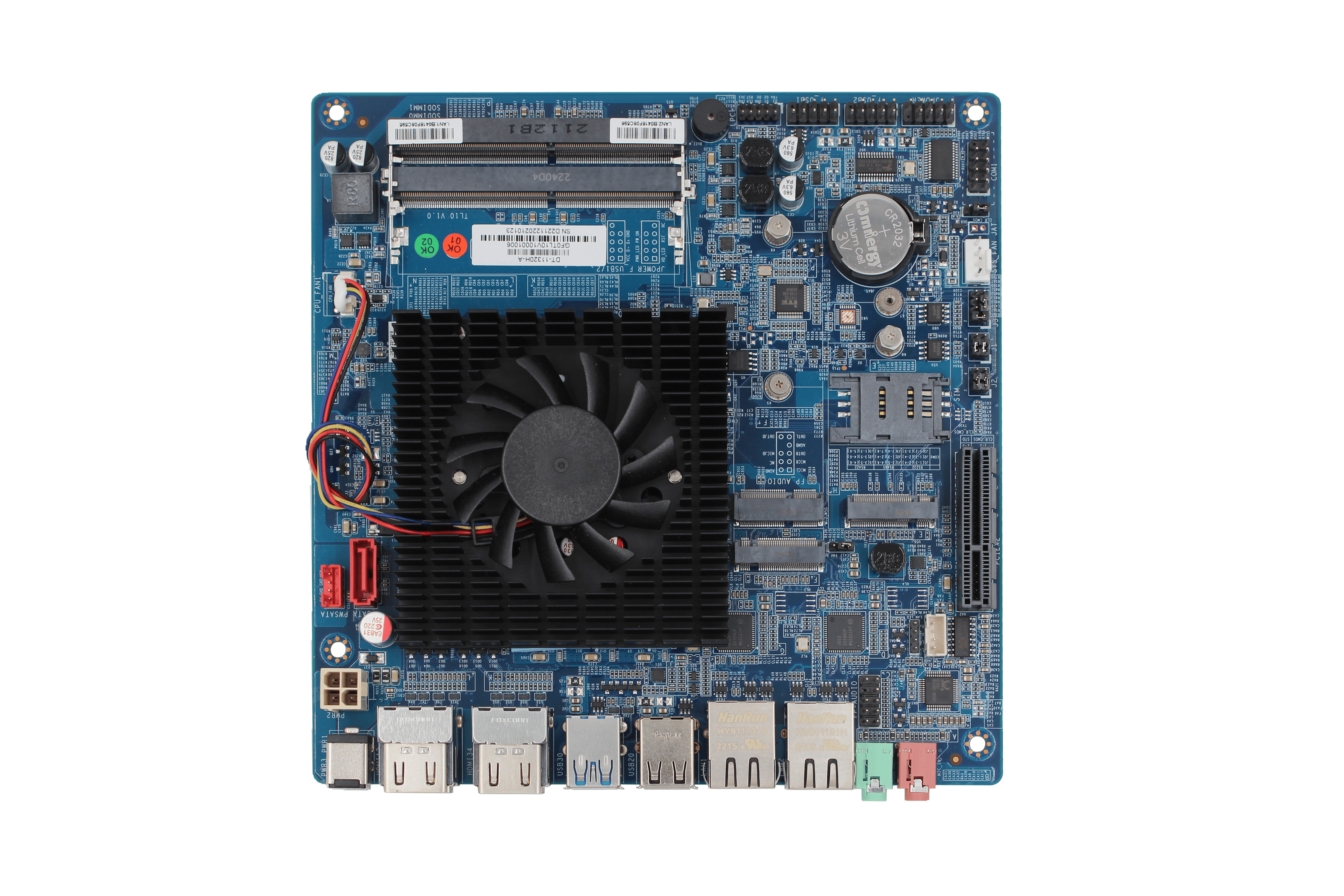

The WL-10 Mini-ITX motherboard is powered by the Intel® Whiskey Lake-U processors, providing a high-performance solution for embedded and industrial applications. It supports Dual Channel SO-DIMM DDR4 up to 64GB and offers flexible storage options with 2x SATAIII and M.2 slots. With Intel® UHD Graphics, it supports multiple display outputs via HDMI®, DP, and eDP/LVDS, making it ideal for digital signage, industrial control, and interactive kiosks. Designed for reliability, the WL-10 motherboard delivers excellent performance in power-sensitive environments, with 4G module M.2_E support, PCIe 4X expansion, and a comprehensive set of I/O interfaces, ensuring seamless integration into a wide range of applications.
CPU: Intel Tiger Lake-U Processors
Memory:Dual Channel SO-DIMM DDR4 UP to 64 GB
Ethenet:10/100/1000 Mbps
Expansion: M.2 For WiFi, M.2 for 4G/5G, PCIe2X
Display: Intel Iris Xe Graphics display via 4xHDMI
Storage: SATA, M.2 for NVMe SSD
Power: 12V/19 DC input
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.
User Manual_TL10
