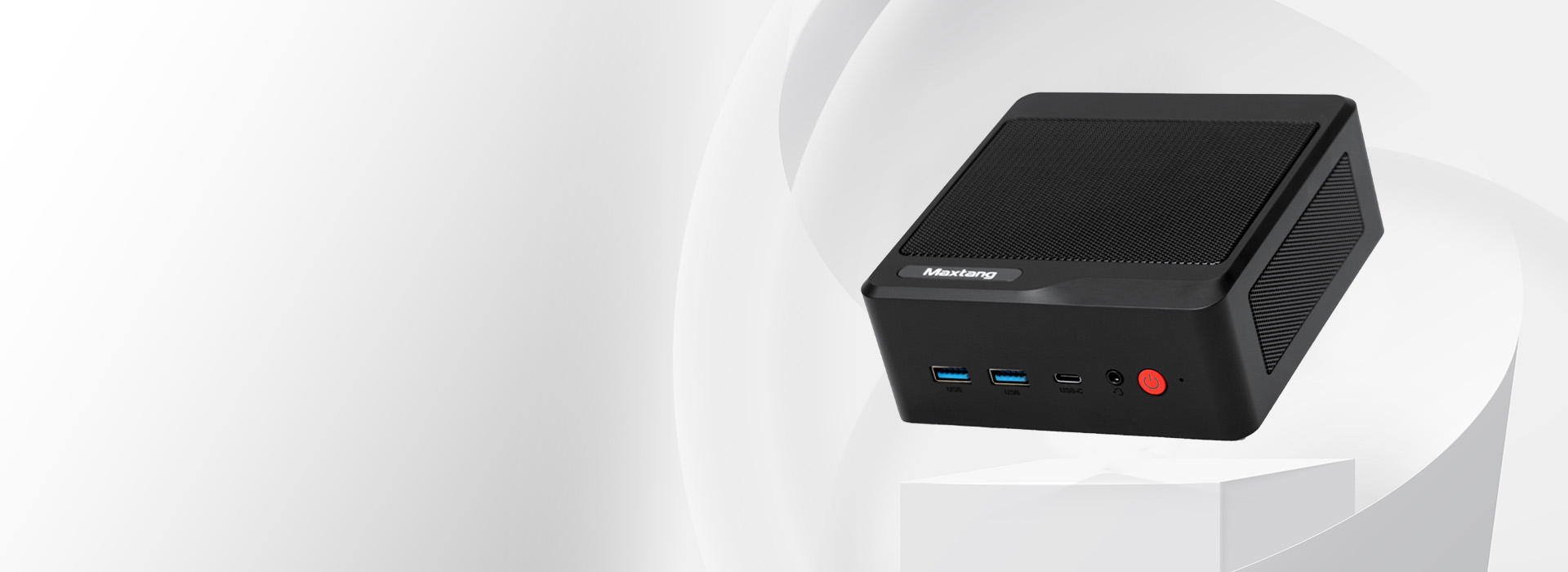

The Maxtang T1-FP550 is a high-connectivity AMD Ryzen™ Mini PC designed for commercial computing, embedded systems, networking, and edge applications. Powered by AMD Ryzen™ Embedded R2000 Series or Ryzen™ 3000 Series processors with integrated AMD Radeon™ Graphics, it supports dual-channel DDR4 memory up to 64GB, flexible NVMe and SATA storage, triple-display output through DisplayPort, HDMI 2.1, and USB-C with DisplayPort 1.4, as well as dual Gigabit Ethernet and comprehensive USB connectivity. Its compact 127 mm × 127 mm × 50.5 mm chassis, active cooling system, Windows and Linux compatibility, and 0°C to 50°C operating range make it suitable for digital signage, smart retail, kiosks, POS terminals, office workstations, IoT gateways, HMI terminals, and monitoring or control systems.

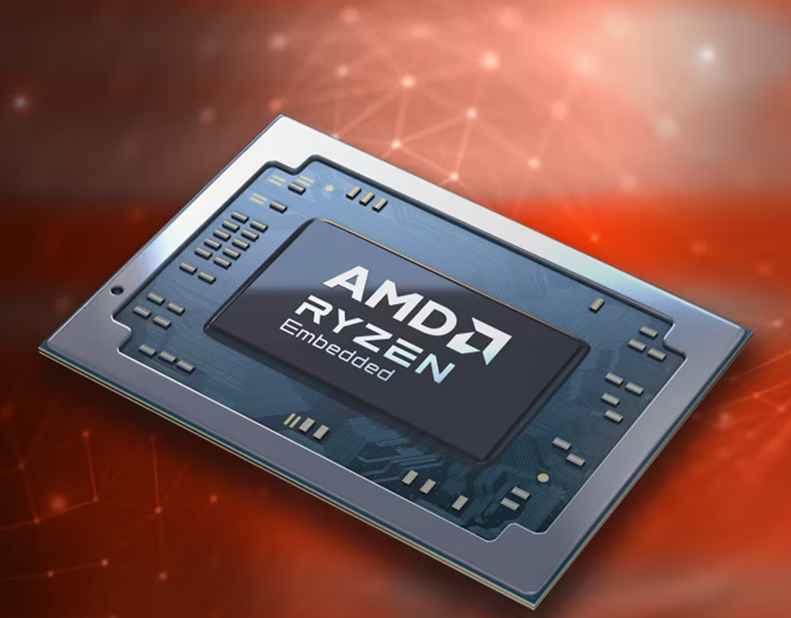

CPU: AMD Ryzen™ 3000 Series/Embedded R2000 Series
Memory: Dual Channel DDR4 for Memory up to 64GB
Display: AMD Radeon™ Graphics, Displays via DP, HDMI, USB-C

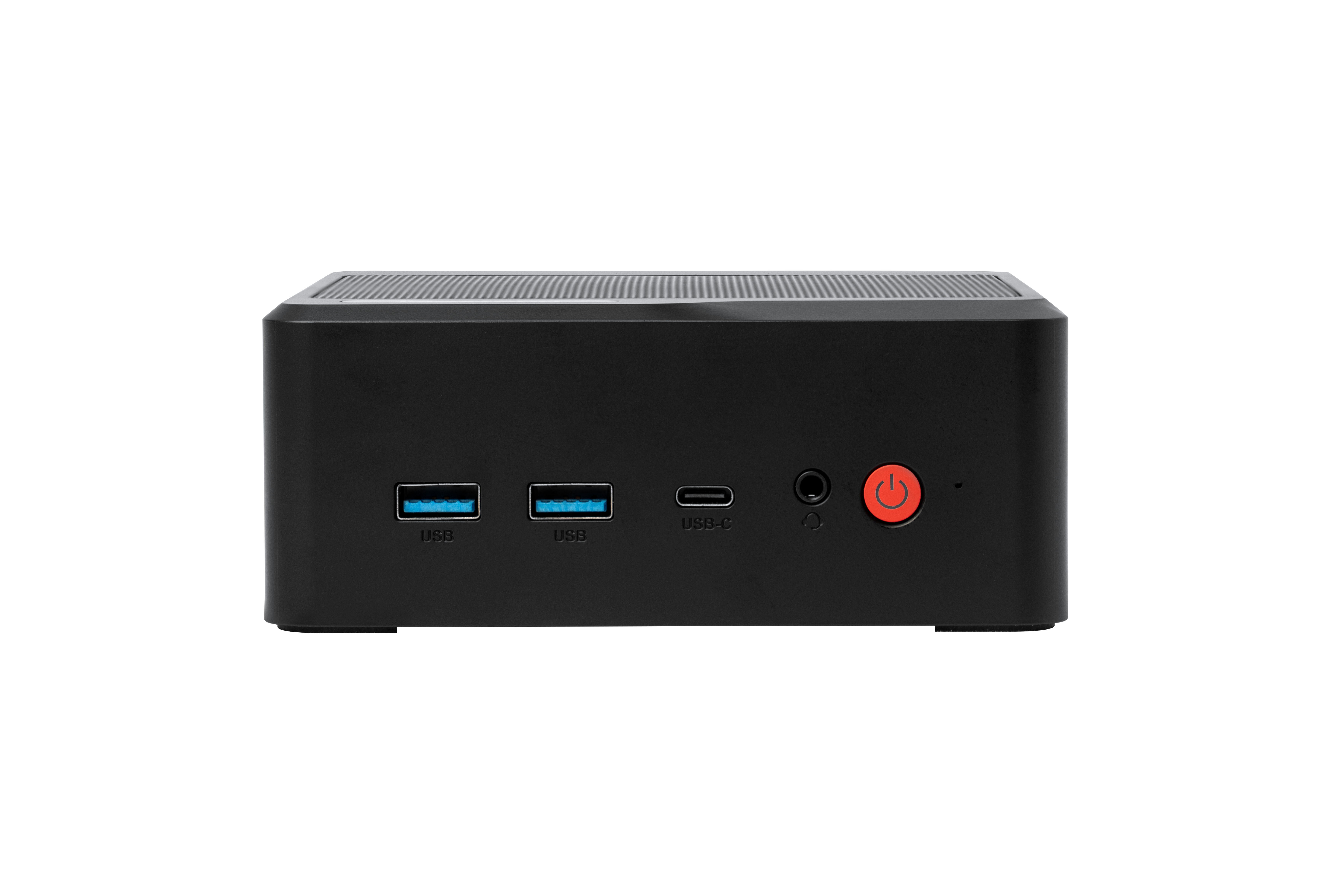

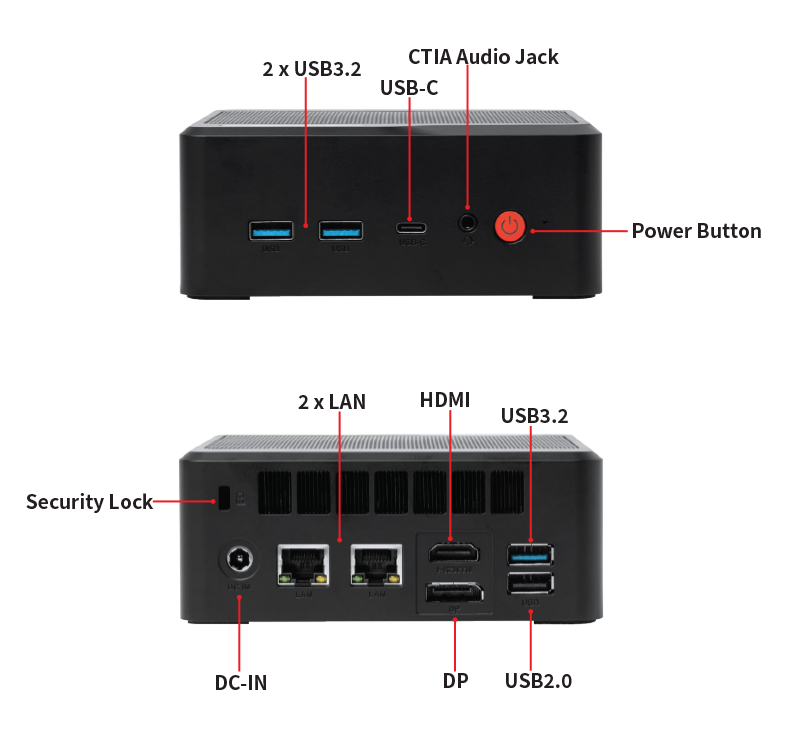

I/O Ports: 1 × full-function USB-C, 3 × USB 3.2, 1 × USB 2.0, 2 × Gigabit LAN, and 1 × CTIA audio jack
Storage: M.2_Key M for 2280 NVMe, M.2_Key M for 2280 NVMe/SATA, FPC SATA
Expansion: M.2_Key E for 2230 WiFi
Power: 19V/20V DC-in
*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*All data is for information purposes only and is not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.
*All other trademarks or registered trademarks are the property of their respective owners and are recognized.

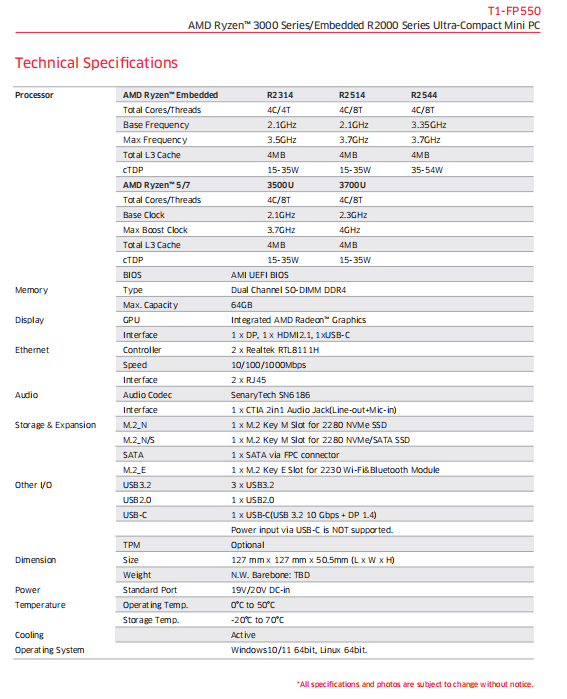

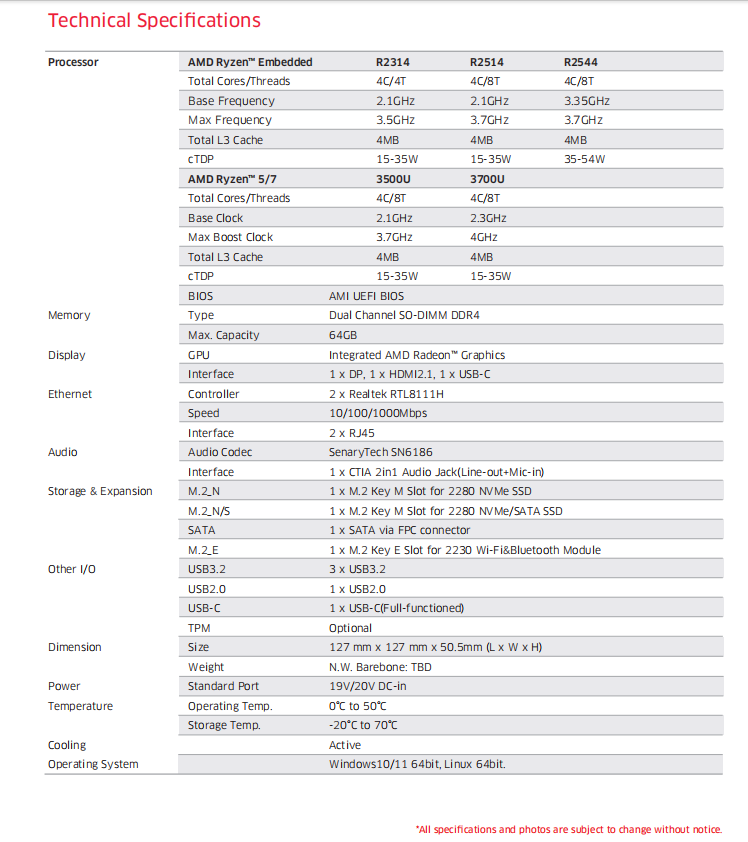

Datasheet_T1-FP550
